Inspection Procedure

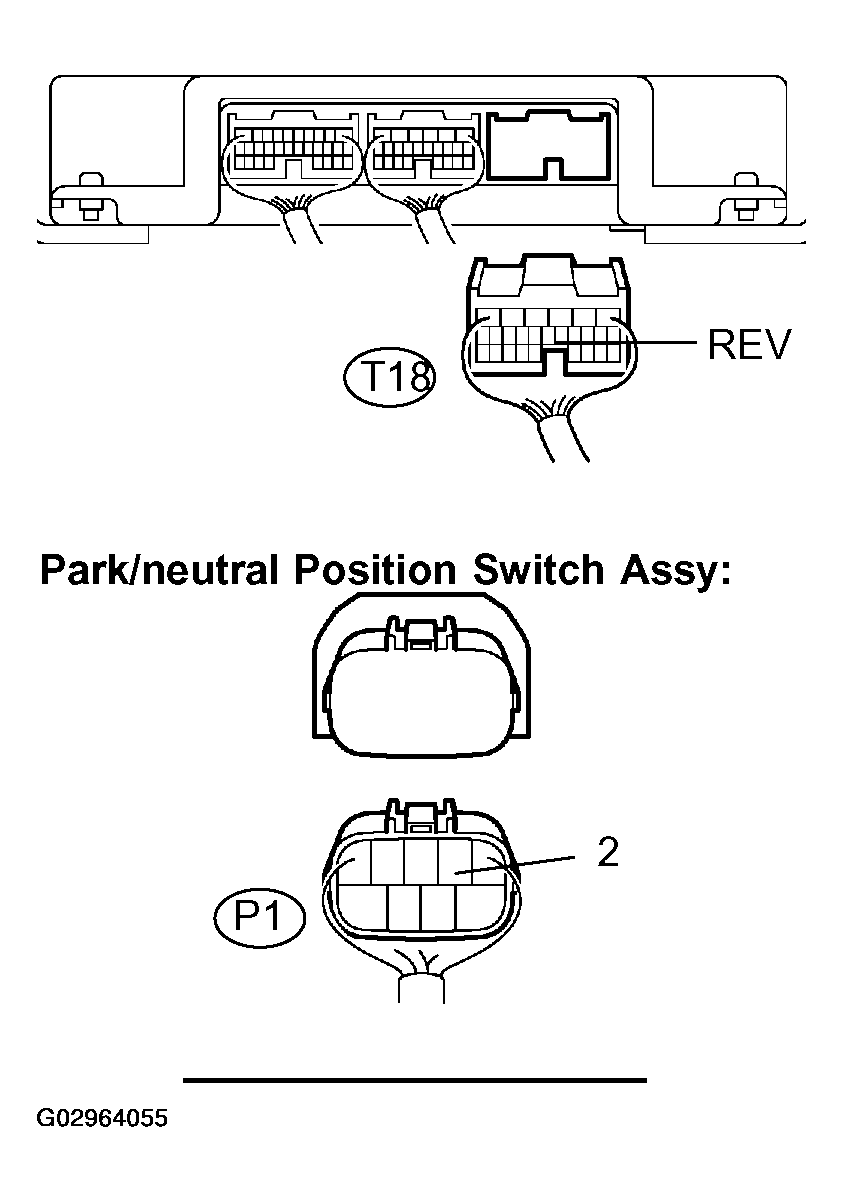

- CHECK HARNESS AND CONNECTOR (TELEVISION CAMERA ECU - PARK/NEUTRAL POSITION SWITCH ASSY)
- Disconnect the T18 connector from the television camera ECU.
- Disconnect the P1 connector from the park/neutral position switch assy.
- Measure the resistance according to the value(s) in TELEVISION CAMERA ECU - PARK/NEUTRAL POSITION SWITCH ASSY .
Standard:
TELEVISION CAMERA ECU - PARK/NEUTRAL POSITION SWITCH ASSYTester connection (Terminal No.) Condition Specified condition REV (T18-11) - 2 (P1-2) Always Below 1.0 ohms. REV (T18-11) - Body ground Always 10 k ohms or higher
- NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
- OK: Go to next step.

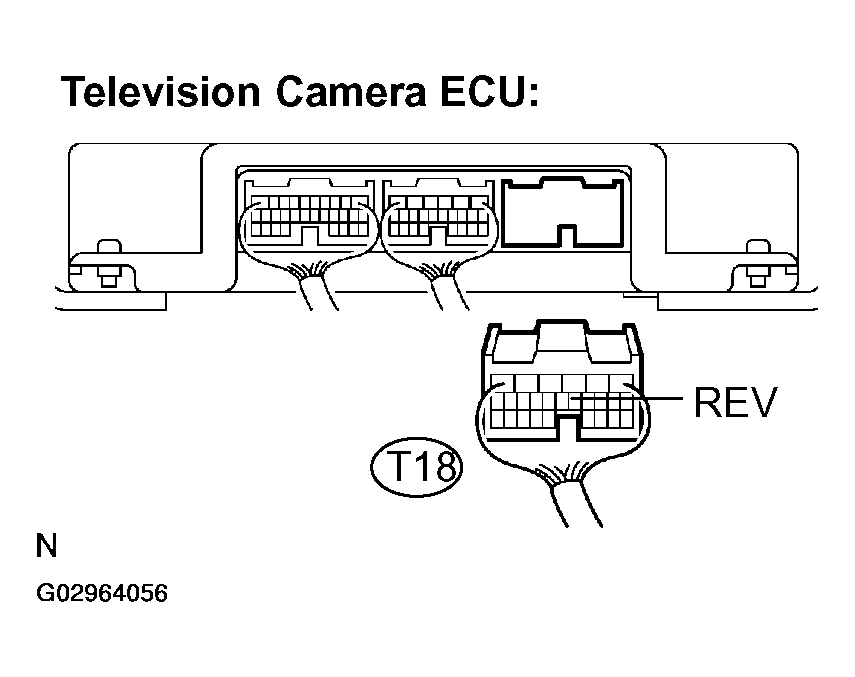

- INSPECT TELEVISION CAMERA ECU (REVERSE SIGNAL INPUT)
- Reconnect the P1 connector to the park/neutral position switch assy.
- Measure the voltage according to the value(s) in TELEVISION CAMERA ECU (REVERSE SIGNAL INPUT) .
Standard:
TELEVISION CAMERA ECU (REVERSE SIGNAL INPUT)Tester connection (Terminal No.) Condition Specified condition REV (T18-11) - Body ground IG SW ON, shift lever R position 10 to 14 V
- NG: INSPECT PARK/NEUTRAL POSITION SWITCH ASSY (SEE PARK/NEUTRAL POSITION SWITCH ASSY )
- OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (See PROBLEM SYMPTOMS TABLE )
