Inspection Procedure
- CHECK HARNESS AND CONNECTOR (TELEVISION CAMERA ECU - MULTI-DISPLAY (CRT DISPLAY) DISPLAY

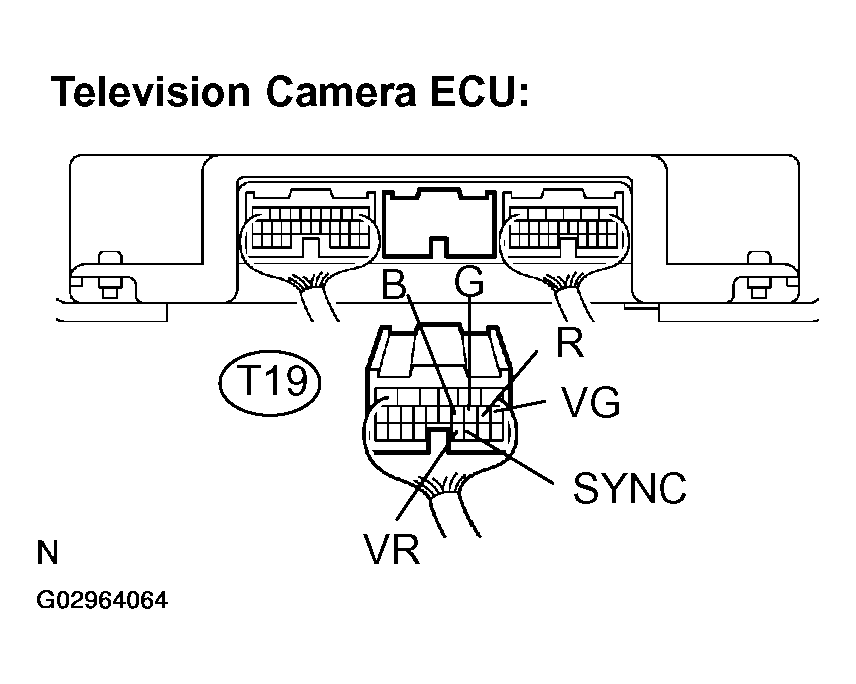

- Disconnect the T19 connector from the television camera ECU.

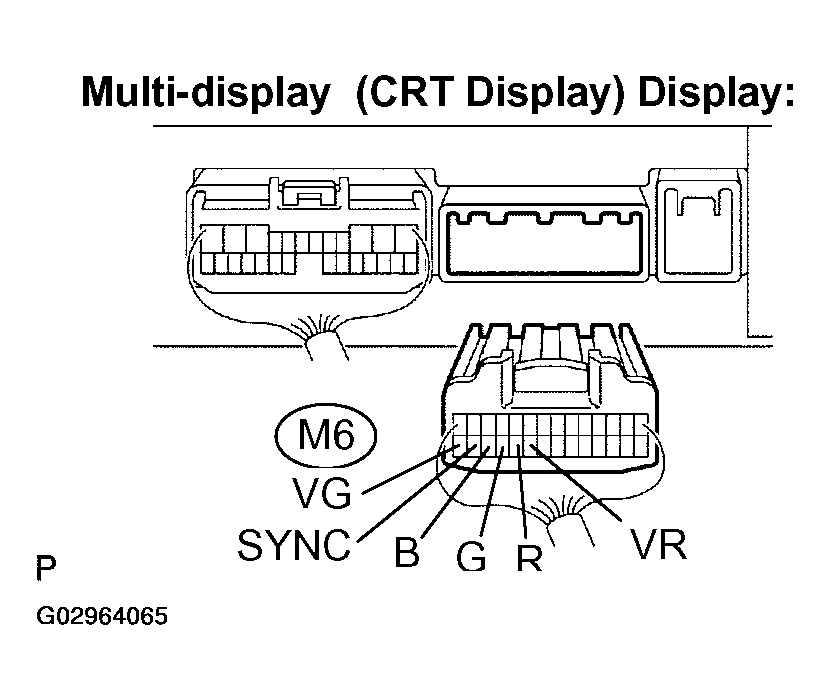

- Disconnect the M6 connector from the multi-display (CRT display) display.
- Measure the resistance according to the value(s) in TELEVISION CAMERA ECU - MULTI-DISPLAY (CRT DISPLAY) DISPLAY .
Standard:
TELEVISION CAMERA ECU - MULTI-DISPLAY (CRT DISPLAY) DISPLAYTester connection (Terminal No.) Condition Specified condition VG (M6-28) - VG (T19-7) Always Below 1.0 ohms R (M6-24) - R (T19-8) Always Below 1.0 ohms G (M6-25) - G (T19-9) Always Below 1.0 ohms B (M6-26) - B (T19-10) Always Below 1.0 ohms SYNC (M6-27) - SYNC (T19-19) Always Below 1.0 ohms VR (M6-23) - VR (T19-20) Always Below 1.0 ohms R (M6-24) - Body ground Always 10 k ohms or higher G (M6-25) - Body ground Always 10 k ohms or higher B (M6-26) - Body ground Always 10 k ohms or higher SYNC (M6-27) - Body ground Always 10 k ohms or higher VR (M6-23) - Body ground Always 10 k ohms or higher Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
- OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (See PROBLEM SYMPTOMS TABLE )
