Steering Sensor: Replacement

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. (See  PRECAUTION  )
  2. SEPARATE BATTERY NEGATIVE TERMINAL
  3. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  4. REMOVE HORN BUTTON ASSY (See  REPLACEMENT  )
  5. REMOVE STEERING WHEEL ASSY (See  OVERHAUL  )
  6. REMOVE STEERING COLUMN LOWER COVER (See  OVERHAUL  )
  7. REMOVE  SPIRAL CABLE SUB-ASSY
  8. REMOVE STEERING SENSOR
    1. Release the claw fittings and remove the steering sensor from the spiral cable.
    Fig 1: Removing Claw Fittings & Steering Sensor From Spiral Cable
    G02609507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL STEERING SENSOR
    1. Install the steering sensor onto the spiral cable.

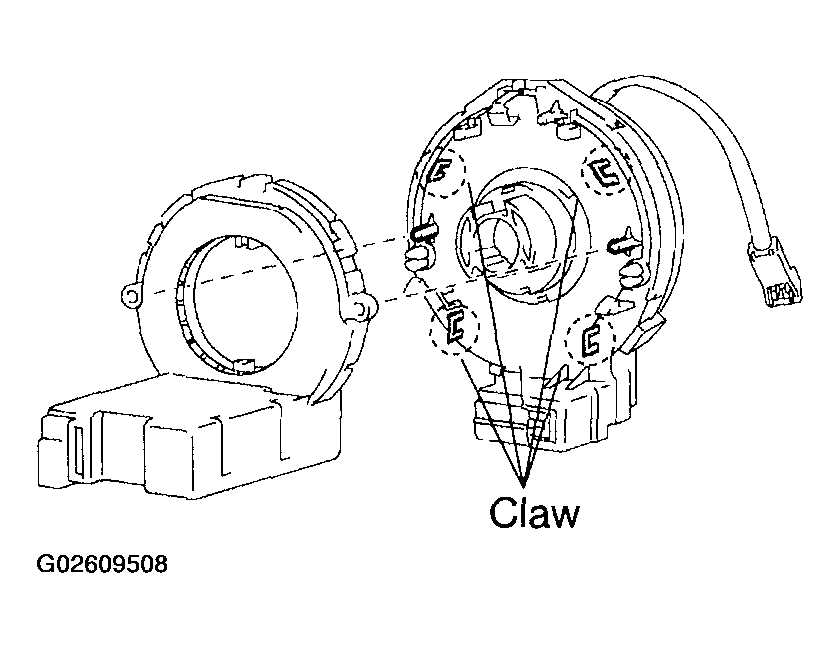

    Fig 2: Installing Steering Sensor Onto Spiral Cable
    G02609508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  11. INSTALL  SPIRAL CABLE SUB-ASSY
  12. INSTALL STEERING COLUMN LOWER COVER (See  OVERHAUL  )
  13. CENTER SPIRAL CABLE (See  SPIRAL CABLE SUB-ASSY  )
  14. INSTALL STEERING WHEEL ASSY (See  OVERHAUL  )
  15. INSPECT STEERING WHEEL CENTER POINT
  16. INSTALL HORN BUTTON ASSY (See  REPLACEMENT  )
  17. INSPECT SRS WARNING LIGHT (See  DIAGNOSIS SYSTEM  )
