Supplemental Restraint System: Precaution

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • The vehicle is equipped with SRS, which consists of a driver airbag, front passenger airbag, side airbag and curtain shield airbag. Failure to carry out service operations in the correct sequence could cause the SRS to unexpectedly deploy during servicing, possibly leading to a serious accident. Further, if a mistake is made in servicing the SRS, it is possible that the SRS may fail to operate when required. Before performing servicing (including removal or installation of parts, inspection or replacement), be sure to read the following items carefully, then follow the correct procedures indicated in the article.
  • Wait at least 90 seconds after the ignition switch is turned to the "LOCK" position and the negative (-) terminal cable is disconnected from the battery before starting the operation.

    (The SRS is equipped with a back-up power source, so that if work is started within 90 seconds after disconnecting the negative (-) terminal cable of the battery, the SRS may be deployed.)

  • Do not expose the horn button assy, instr pnl pass I/door airbag assy, airbag sensor assy center, airbag sensor front, front seat airbag assy, side airbag sensor assy, curtain shield airbag assy, airbag sensor rear, seat position airbag sensor or occupant classification ECU directly to hot air or flames.
  • Be sure to perform the initialization of the occupant classification ECU if any of the following conditions occur (See INITIALIZATION ). If the initialization is not performed, the SRS may not operate properly.
    • The occupant classification ECU is replaced.
    • Accessories (seatback tray, seat cover, etc.) are installed to the vehicle.
    • The passenger seat is removed from the vehicle, and then reinstalled or replaced.
    • The passenger airbag ON/OFF indicator light ("OFF(" comes on when the passenger seat is not occupied.
    • The vehicle is brought to the workshop for repair due to an accident or collision.
NOTE:
  • Malfunction symptoms of the SRS are difficult to confirm, so DTCs are the most important source of information when troubleshooting. When troubleshooting the SRS, always inspect DTCs before disconnecting the battery.
  • Even in the case of a minor collision when the SRS does not deploy, the horn button assy, instr pnl pass I/door airbag assy, airbag sensor assy center, airbag sensor front, front seat airbag assy, side airbag sensor assy, curtain shield airbag assy, airbag sensor rear, seat position airbag sensor and occupant classification ECU should be inspected (See ON-VEHICLE INSPECTION ).
  • Before repair work, remove the airbag sensor if any kind of shock is likely to occur to the airbag sensor during the operation.
  • Never use SRS parts from another vehicle. When replacing the parts, replace them with new ones.
  • Never disassemble or repair the horn button assy, instr pnl pass I/door airbag assy, airbag sensor assy center, airbag sensor front, front seat airbag assy, side airbag sensor assy, curtain shield airbag assy, airbag sensor rear, seat position airbag sensor or occupant classification ECU in order to reuse it.
  • If the horn button assy, instr pnl pass I/door airbag assy, airbag sensor assy center, airbag sensor front, front seat airbag assy, side airbag sensor assy, curtain shield airbag assy, airbag sensor rear, seat position airbag sensor or occupant classification ECU has been dropped, or if there are any cracks, dents or other defects in the case, bracket or connector, replace it with a new one.
  • Use a volt/ohmmeter with high impedance (10 kΩ/V minimum) for troubleshooting the electrical circuits.
  • Information labels are attached to the periphery of the SRS components. Follow the instructions in the caution.
  • After work on the SRS is completed, perform the SRS warning light check (See DIAGNOSIS SYSTEM ).
  • When the negative (-) terminal cable is disconnected from the battery, the memory will be cleared. Because of this, be sure to make a record of the contents memorized in each system before starting work. When work is finished, adjust each system as it was before. Never use a back-up power supply from outside the vehicle to avoid erasing the memory in any system.
  • If the vehicle is equipped with a mobile communication system, see REPAIR INSTRUCTION .
  1. DEPLOYMENT CONDITION
    1. When the vehicle collides and the shock is greater than the specified value, the SRS is activated automatically. The airbag sensor assy center includes the safing sensor and deceleration sensor. The safing sensor was designed to be turned on at a smaller deceleration rate than the deceleration sensor. The deceleration sensor determines whether or not ignition is necessary based on signals from the airbag sensor front. Current flows to the squibs to deploy the SRS when the conditions shown in the illustrations below are met.

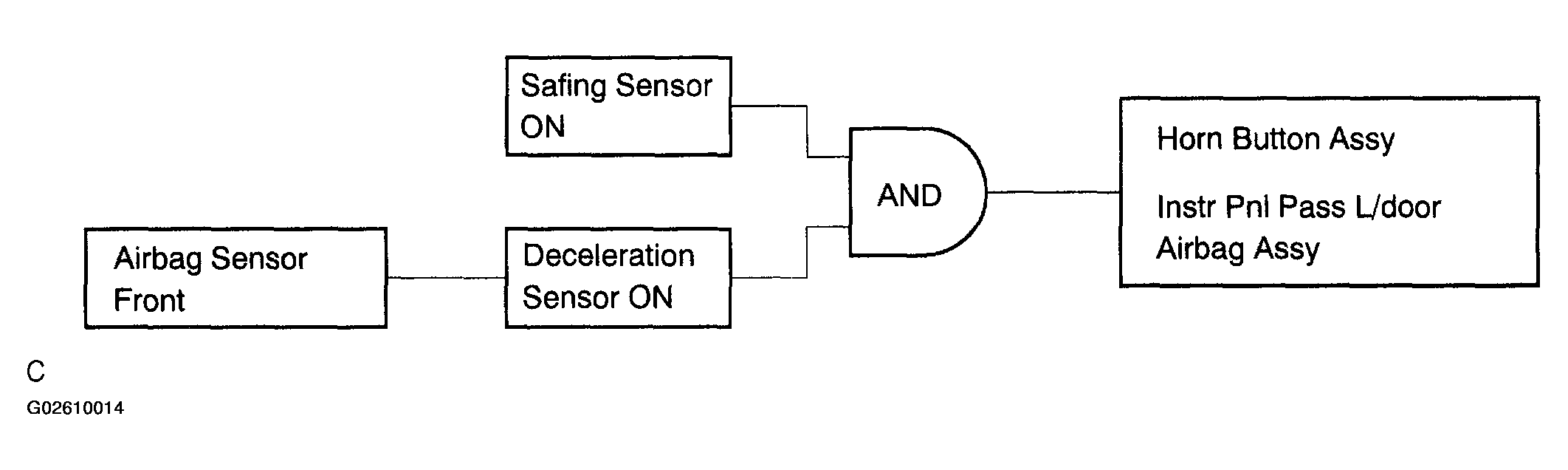

    Fig 1: Communication Diagram - SRS (1 Of 3)
    G02610014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 2: Communication Diagram - SRS (2 Of 3)
    G02610015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

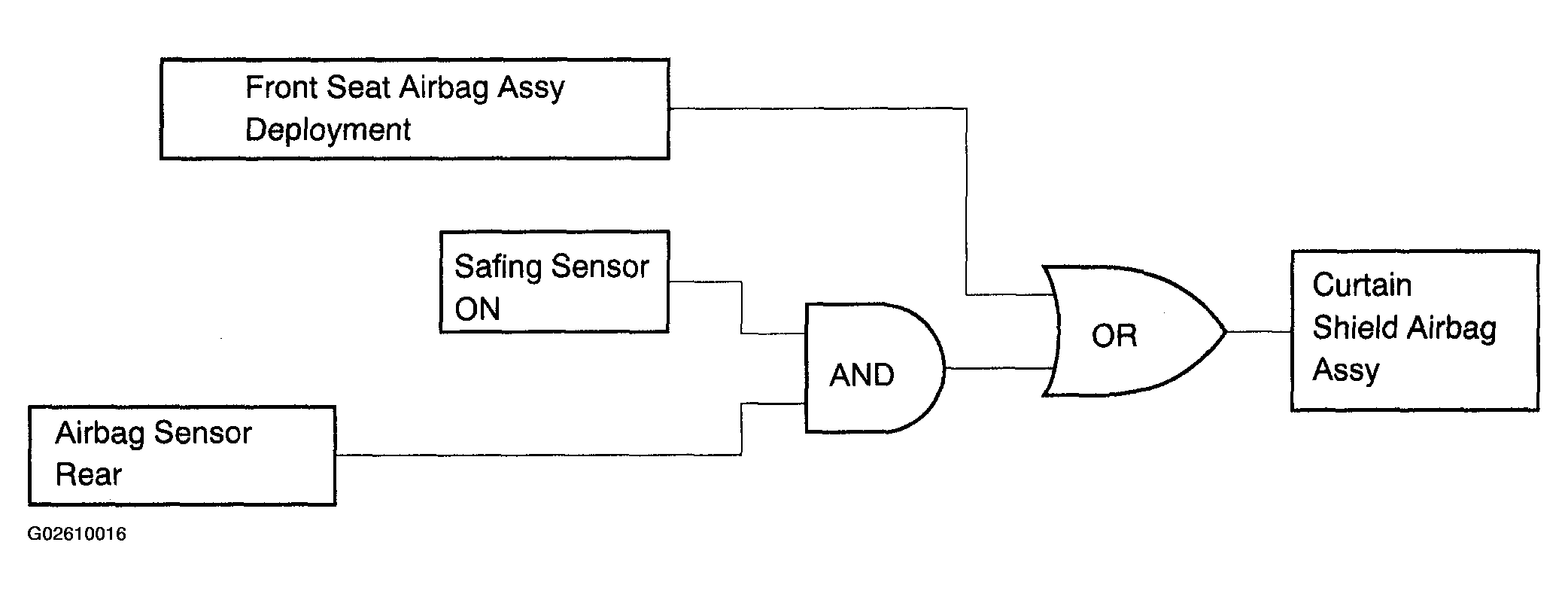

    Fig 3: Communication Diagram - SRS (3 Of 3)
    G02610016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. SRS CONNECTORS

    HINT:

    SRS connectors are located as shown.

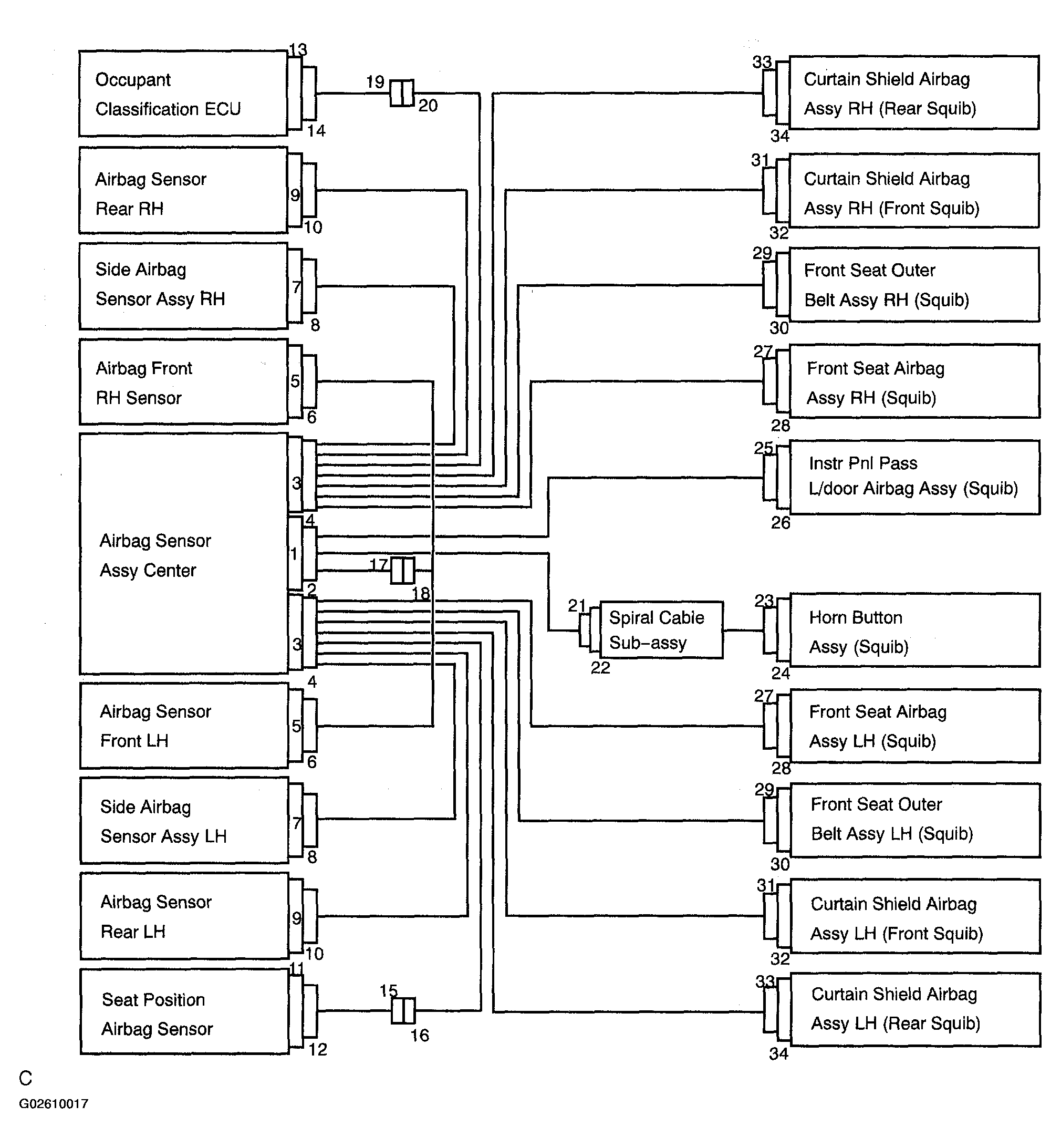

    Fig 4: System Diagram (SRS Connectors)
    G02610017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    SRS CONNECTORS DESCRIPTION

    No. Connector Type Application
    (1) Terminal Twin-Lock Mechanism Connectors 2, 4, 6, 8, 10, 12, 15, 16, 17, 18,20*, 21, 25,27, 28
    (2) Activation Prevention Mechanism Connectors 2, 4, 22, 24, 26, 28, 30, 32, 34
    (3) Electrical Connection Check Mechanism Connectors 1, 2, 3, 4
    (4) Half Connection Prevention Mechanism Connectors 6, 8, 10, 18, 21, 25, 27
    (5) Connector Lock Mechanism Connectors 23, 29, 31, 33
    1. All connectors in the SRS, except the seat position airbag sensor connector and the occupant classification ECU connectors, are colored yellow to distinguish them from other connectors. These connectors have special functions, and are specially designed for the SRS. All SRS connectors use durable gold-plated terminals, and are placed in the locations shown on the previous page to ensure high reliability.

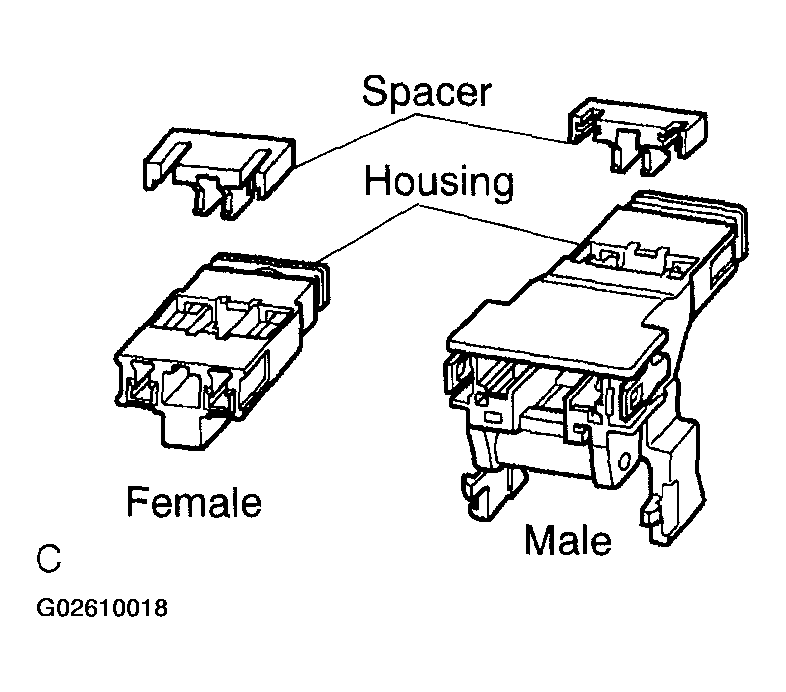

    Fig 5: Identifying Terminal Twin-Lock Mechanism
    G02610018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Terminal twin-lock mechanism:

      Each connector has a two-piece component consisting of a housing and a spacer. This design enables the terminal to be locked securely by two locking devices (the retainer and the lance) to prevent terminals from coming out.

    2. Activation prevention mechanism:

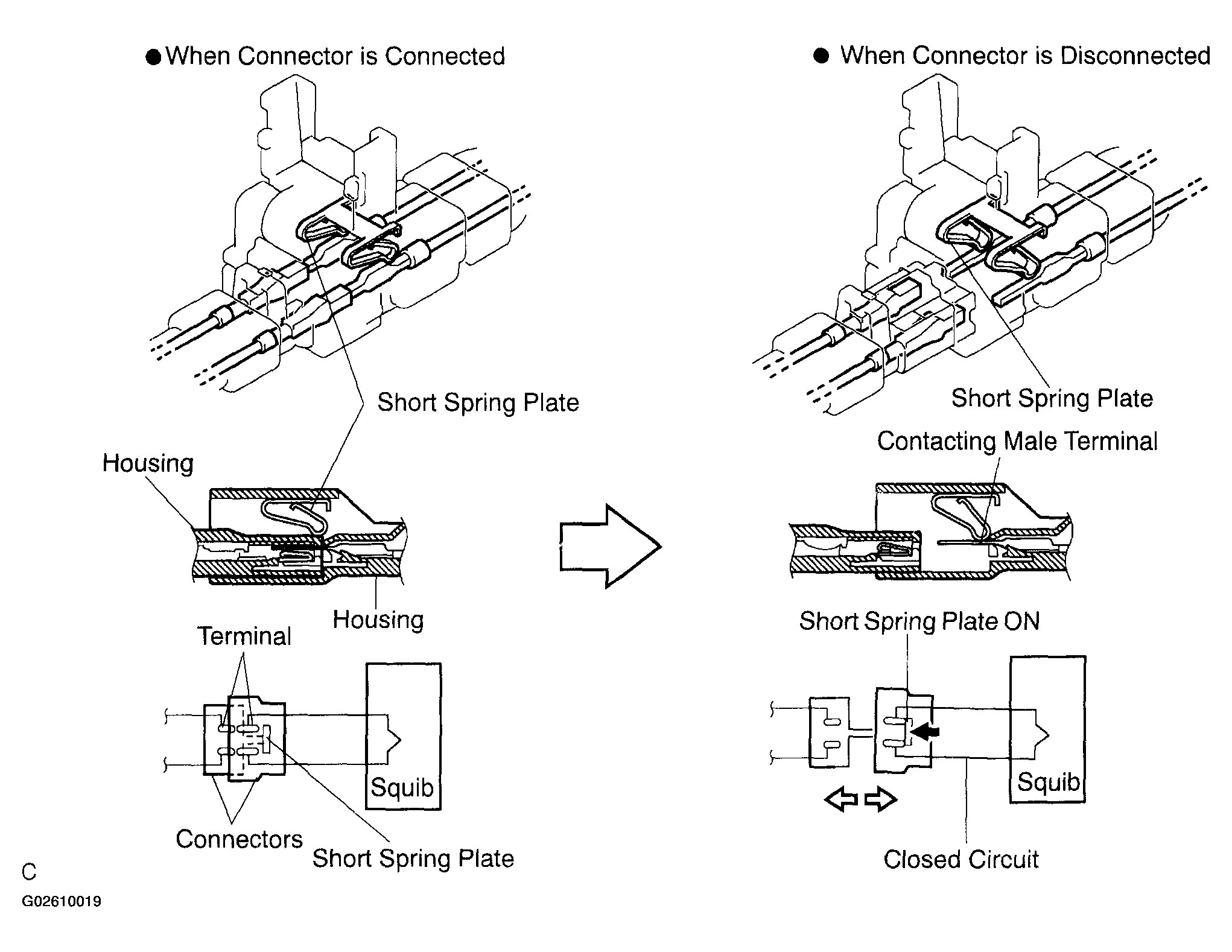

      Each connector contains a short spring plate. When the connector is disconnected, the short spring plate automatically connects the positive (+) terminal and the negative (-) terminal of the squib.

      Fig 6: Identifying Activation Prevention Mechanism
      G02610019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Electrical connection check mechanism:

      This mechanism electrically checks that the connectors are connected correctly and completely. The electrical connection check mechanism is designed so that the disconnection detection pin connects with the diagnosis terminals when the connector housing lock is locked.

      Fig 7: Circuit Diagram
      G02610020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

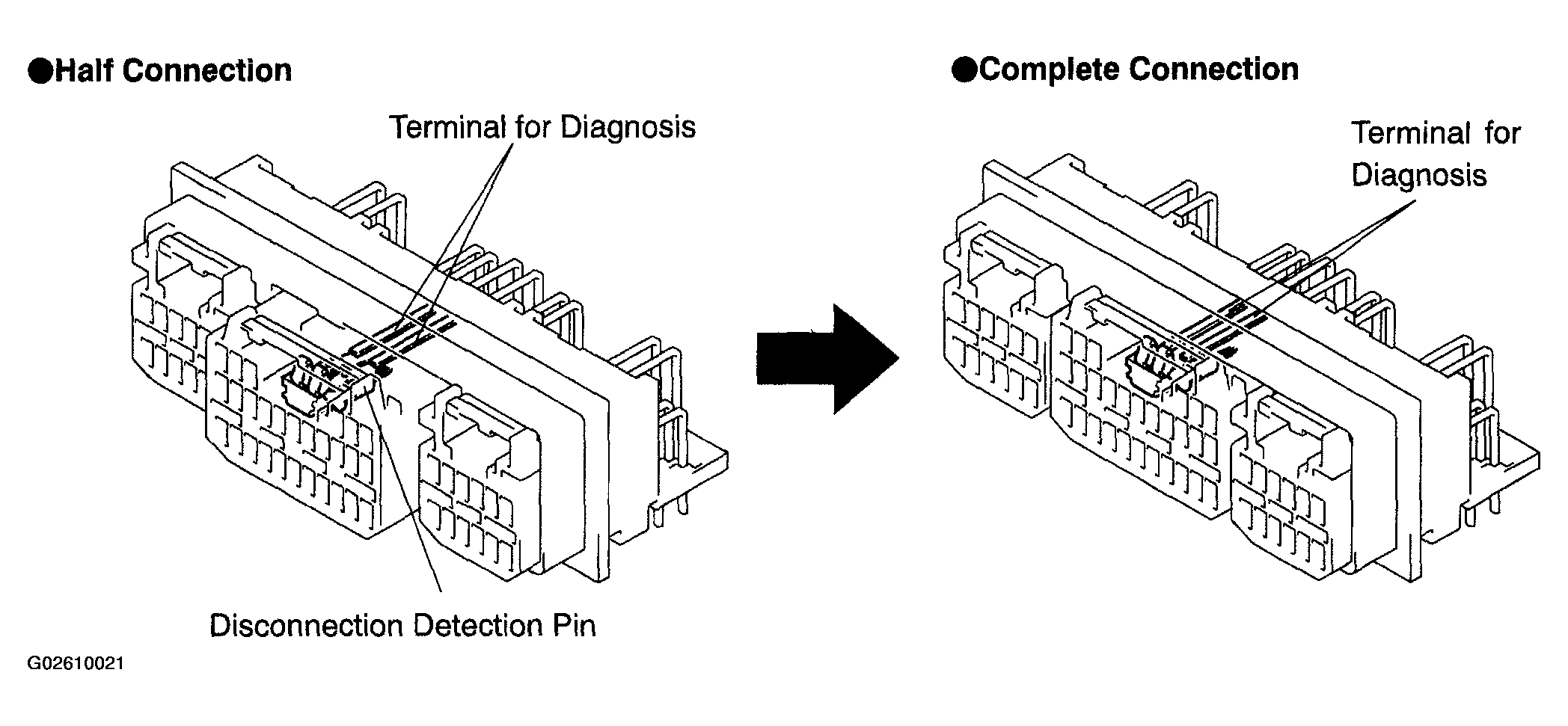

      Fig 8: Identifying Electrical Connection Check Mechanism
      G02610021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Half connection prevention mechanism:

      If the connector is not completely connected, the connector is disconnected due to the spring operation so that no continuity exists.

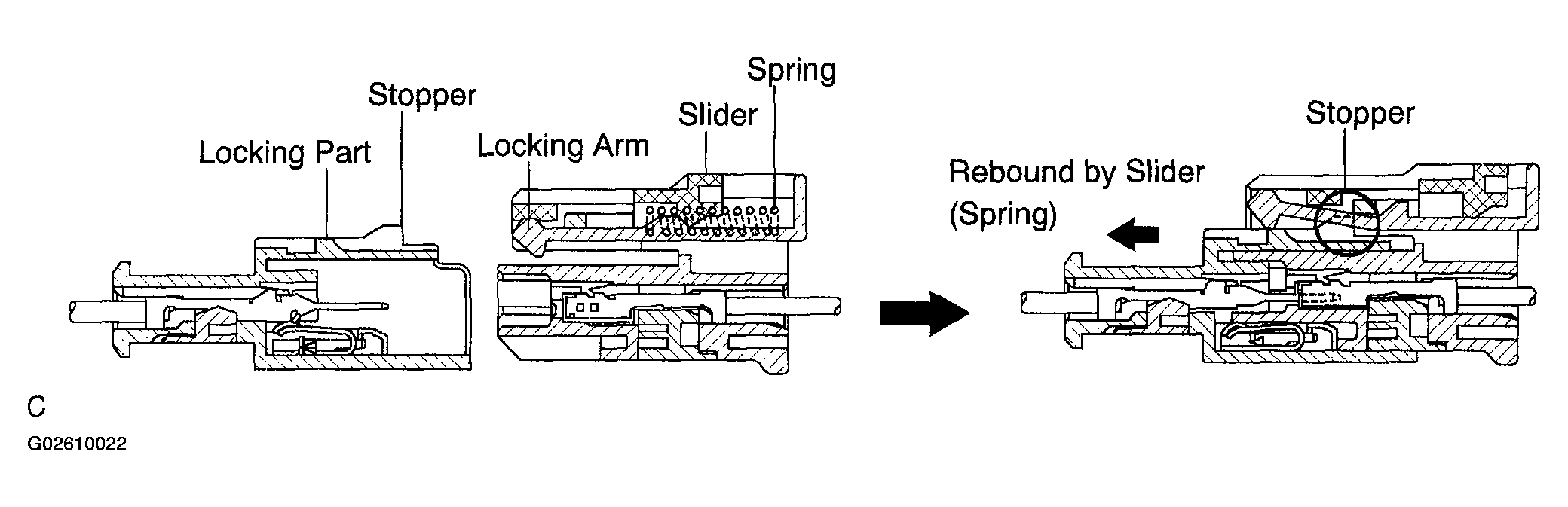

      Fig 9: Identifying Half Connection Prevention Mechanism
      G02610022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Connector lock mechanism:

    Locking the connector lock button connects the connector securely.

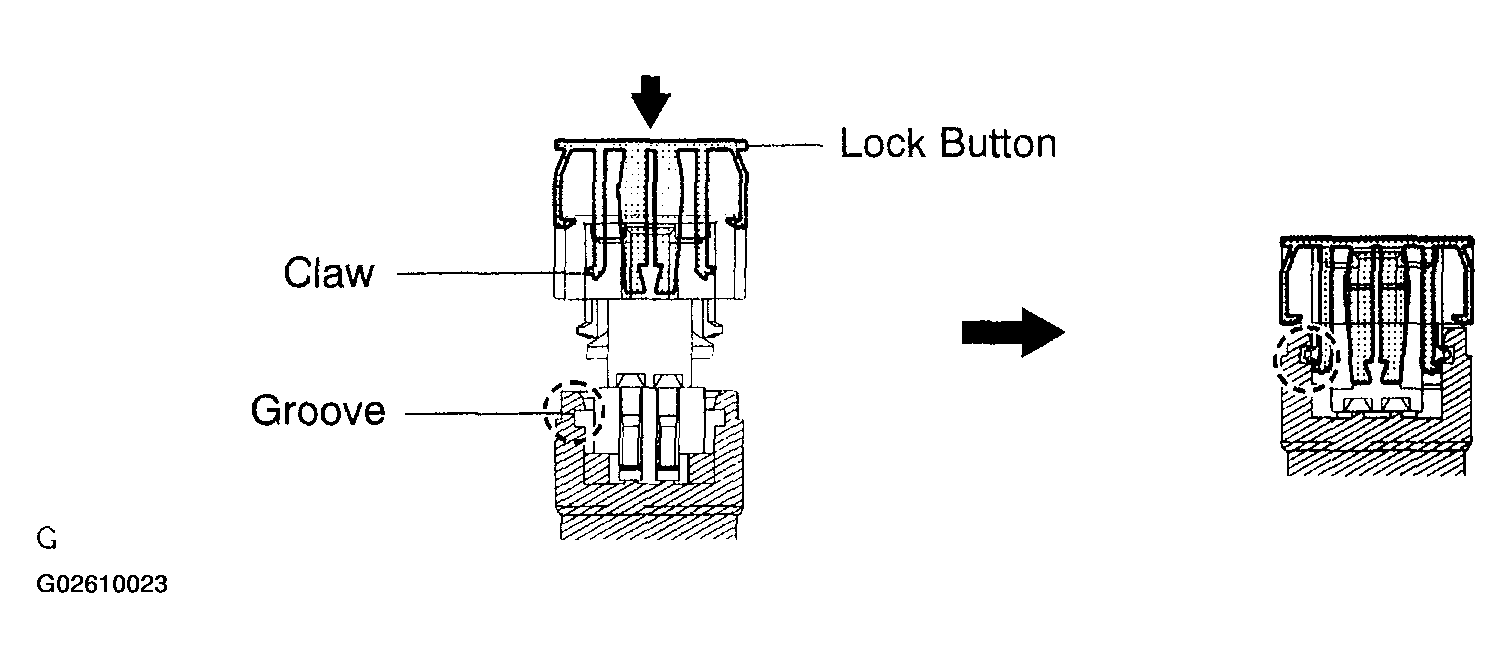

    Fig 10: Identifying Connector Lock Mechanism
    G02610023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. DISCONNECTION OF CONNECTORS FOR HORN BUTTON ASSY AND CURTAIN SHIELD AIRBAG ASSY
    1. Release the lock button (yellow part) of the connector using a screwdriver.
    2. Insert the screwdriver tip between the connector and the base, and then raise the connector.

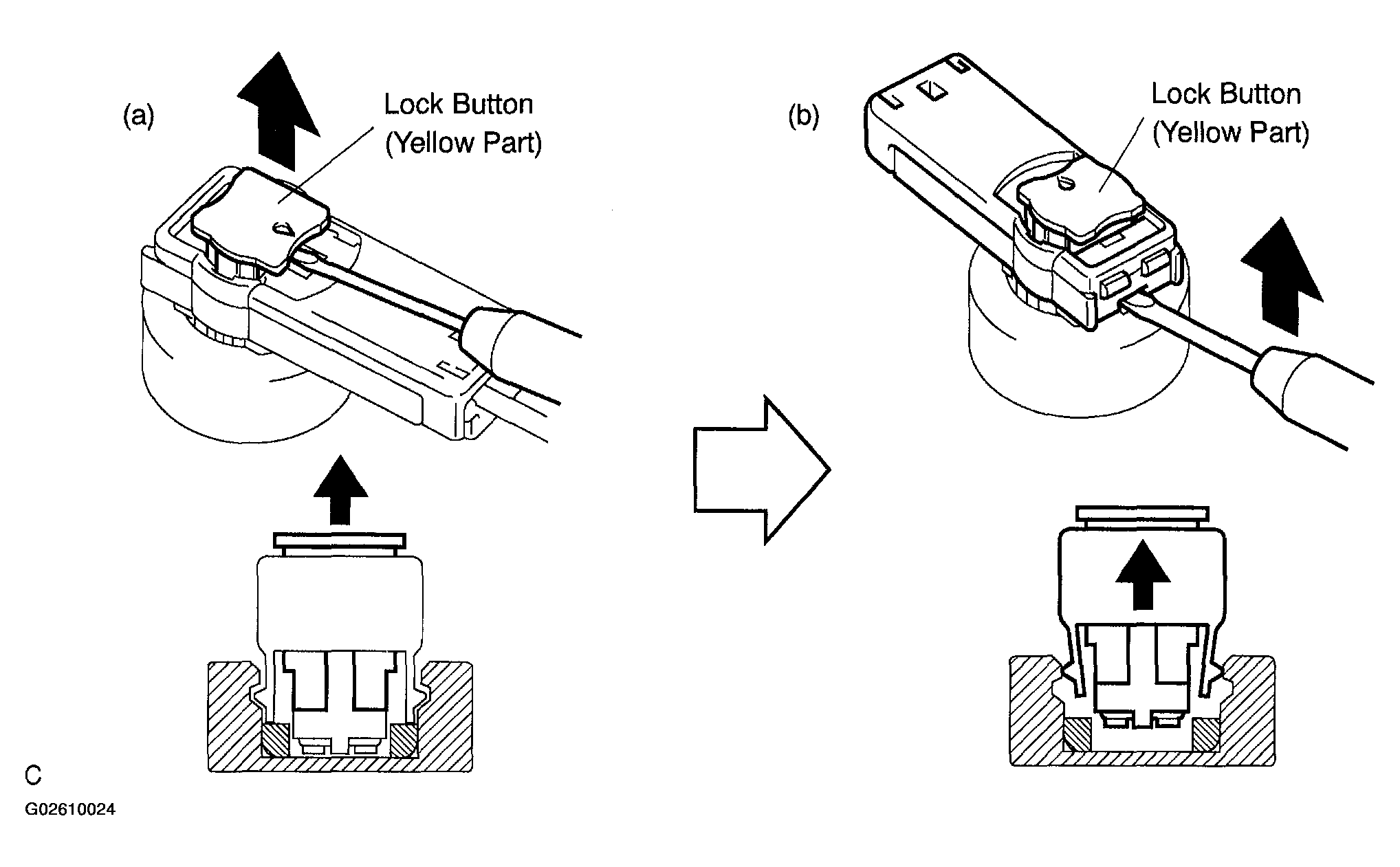

    Fig 11: Identifying Disconnection Of Connectors For Horn Button Assy & Curtain Shield Airbag Assy
    G02610024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. CONNECTION OF CONNECTORS FOR HORN BUTTON ASSY AND CURTAIN SHIELD AIRBAG ASSY
    1. Connect the connector.
    2. Push down securely on the lock button (yellow part) of the connector. (When locking, a click sound can be heard.)

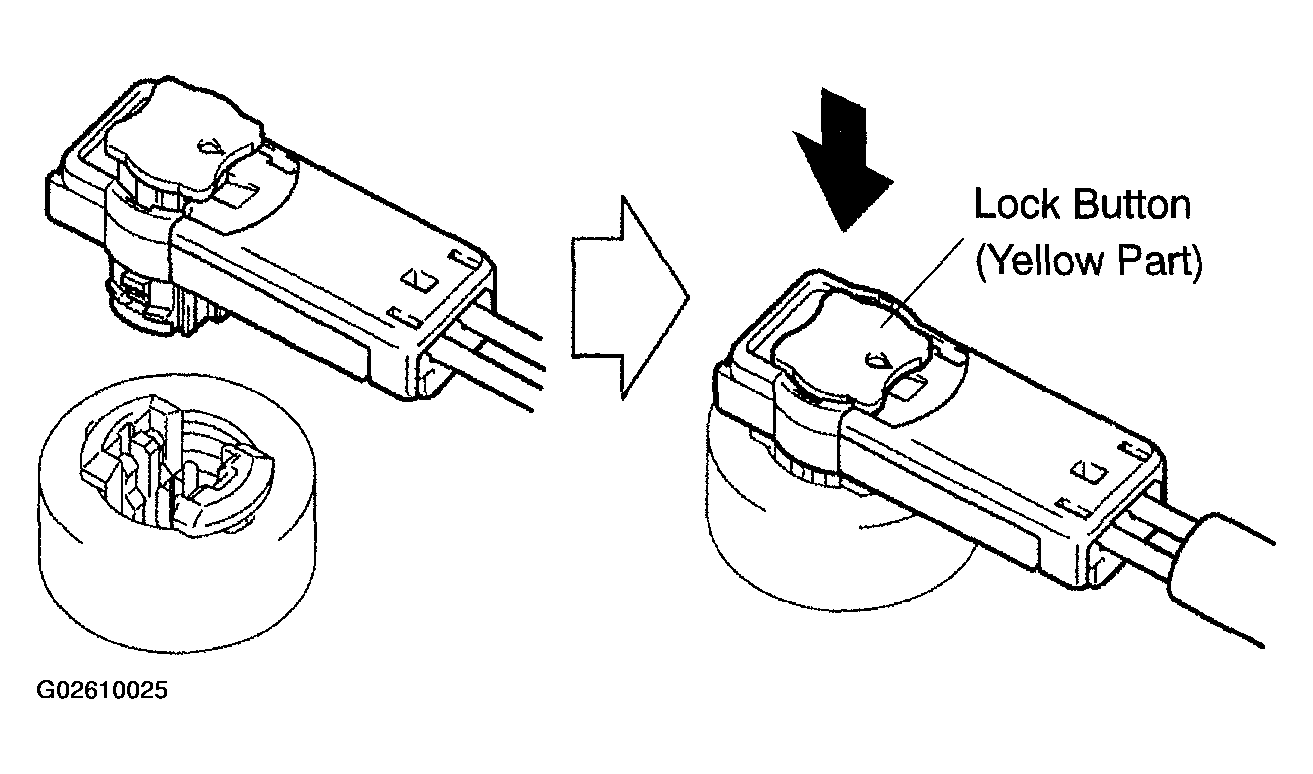

    Fig 12: Identifying Connection Of Connectors For Horn Button Assy & Curtain Shield Airbag Assy
    G02610025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. DISCONNECTION OF CONNECTOR FOR INSTR PNL PASS L/DOOR AIRBAG ASSY
    1. Place a finger on the slider, slide the slider to release the lock, and then disconnect the connector.

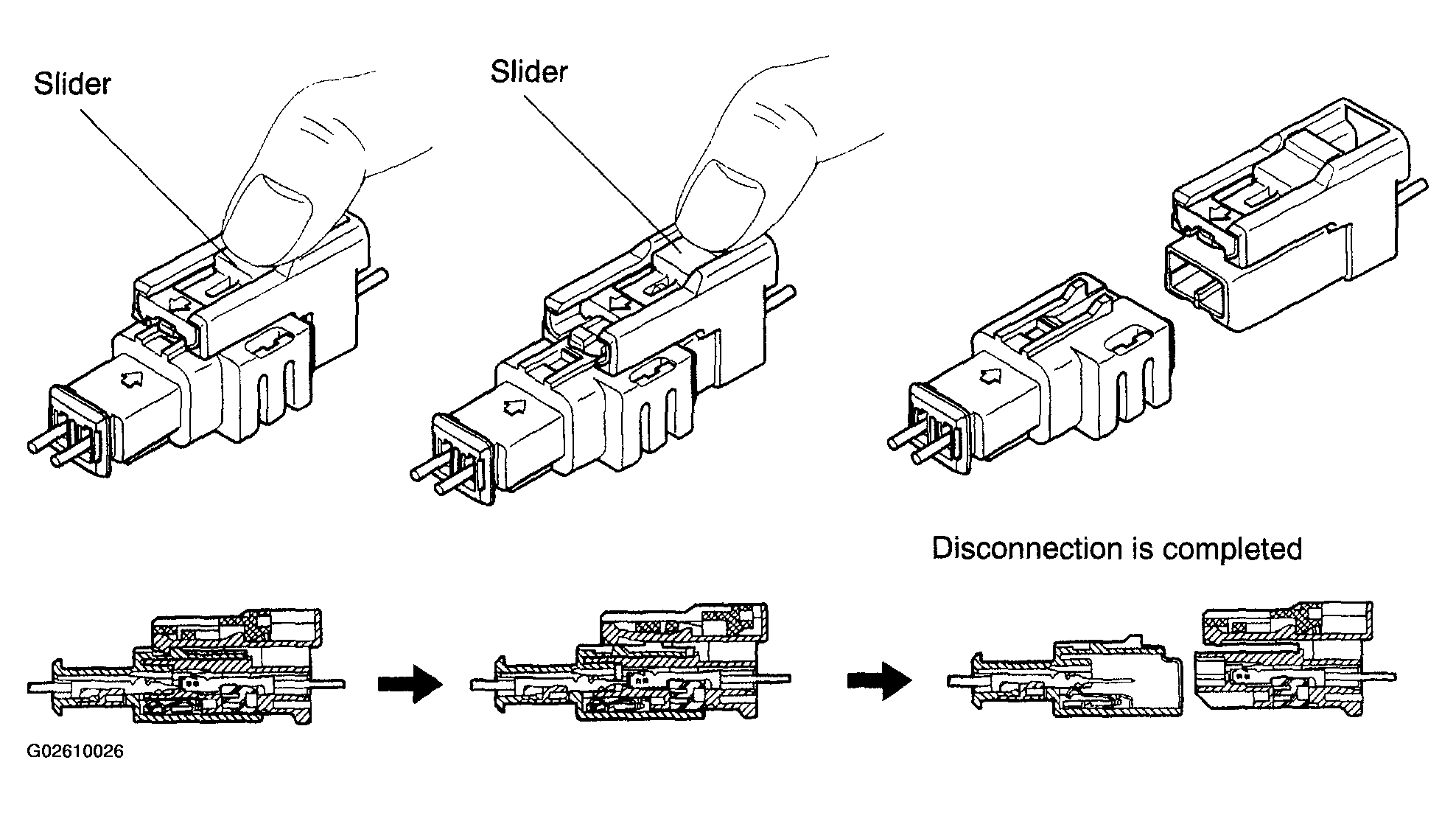

    Fig 13: Identifying Disconnection Of Connector For Instr Pnl Pass L/Door Airbag Assy
    G02610026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. CONNECTION OF CONNECTOR FOR INSTR PNL PASS L/DOOR AIRBAG ASSY
    1. Connect the connector as shown in Fig 14. (When locking, make sure that the slider returns to its original position and a click sound can be heard.)

    HINT:

    When connecting, the slider will slide. Be sure not to touch the slider while connecting, as it may result in an insecure fit.

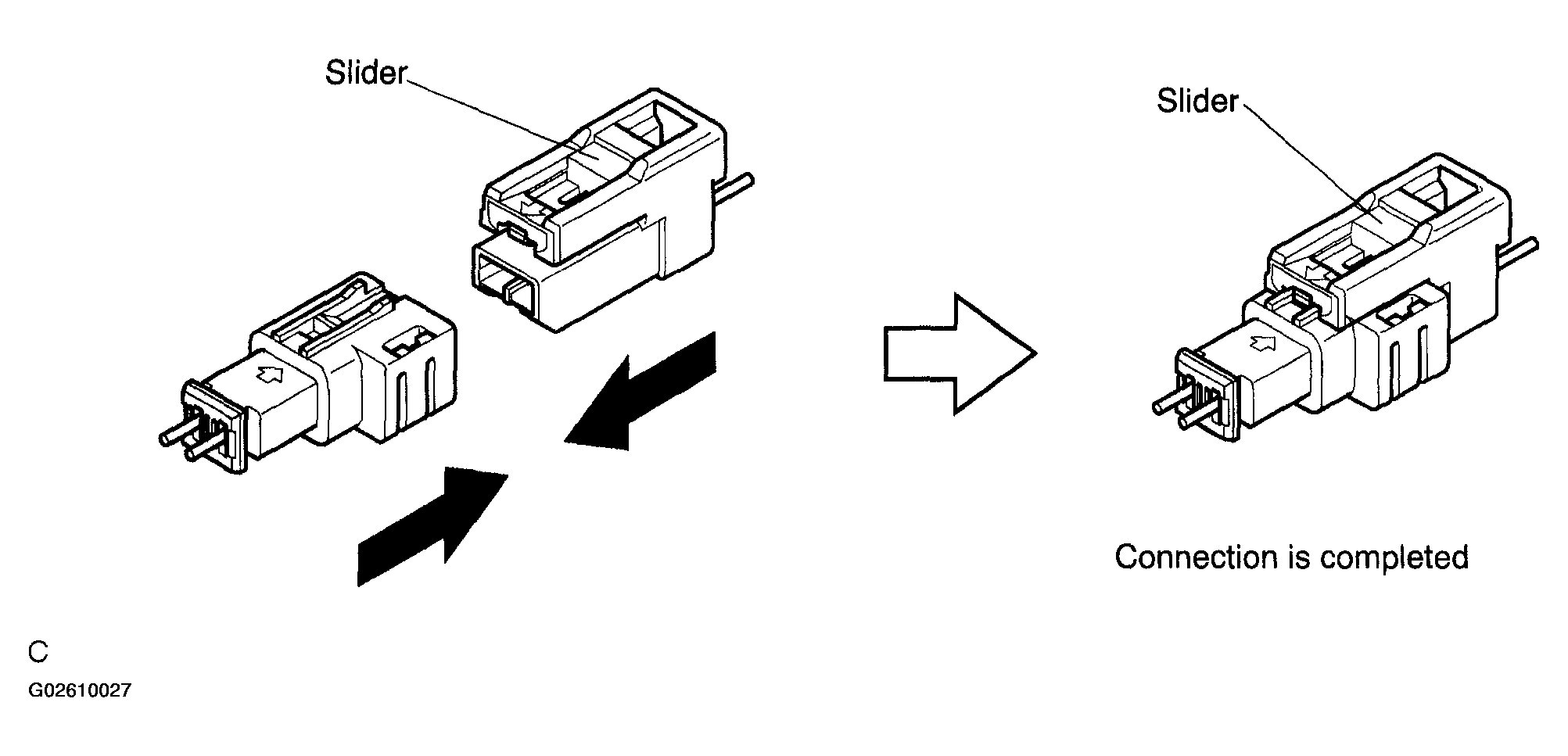

    Fig 14: Identifying Connection Of Connector For Instr Pnl Pass L/Door Airbag Assy
    G02610027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. DISCONNECTION OF CONNECTOR FOR FRONT SEAT AIRBAG ASSY
    1. Place a finger on the slider, slide the slider to release the lock, and then disconnect the connector.

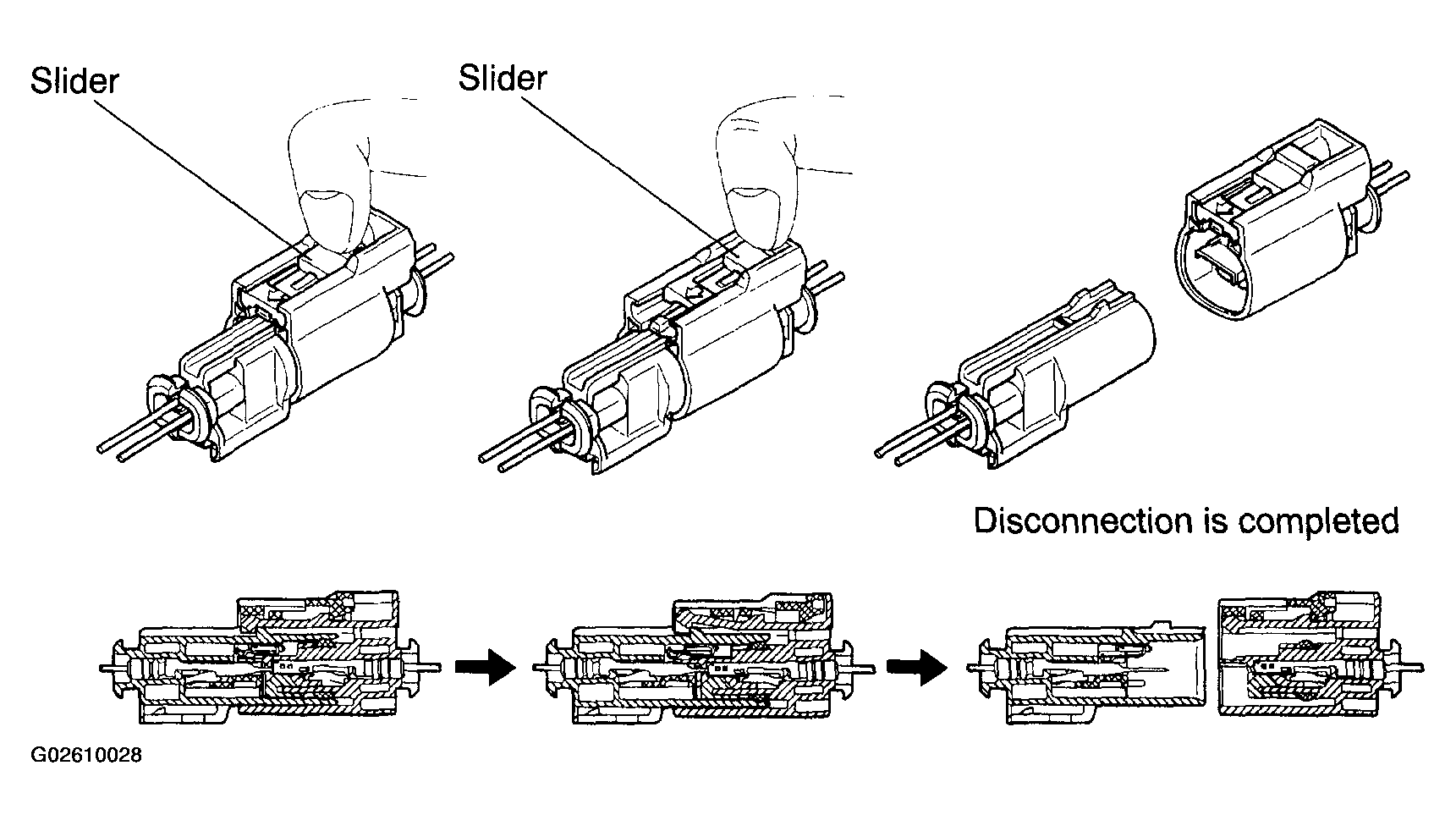

    Fig 15: Identifying Disconnection Of Connector For Front Seat Airbag Assy
    G02610028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. CONNECTION OF CONNECTOR FOR FRONT SEAT AIRBAG ASSY
    1. Connect the connector as shown in the illustration. (When locking, make sure that the slider returns to its original position and a click sound can be heard.)

    HINT:

    When connecting, the slider will slide. Be sure not to touch the slider while connecting, as it may result in an insecure fit.

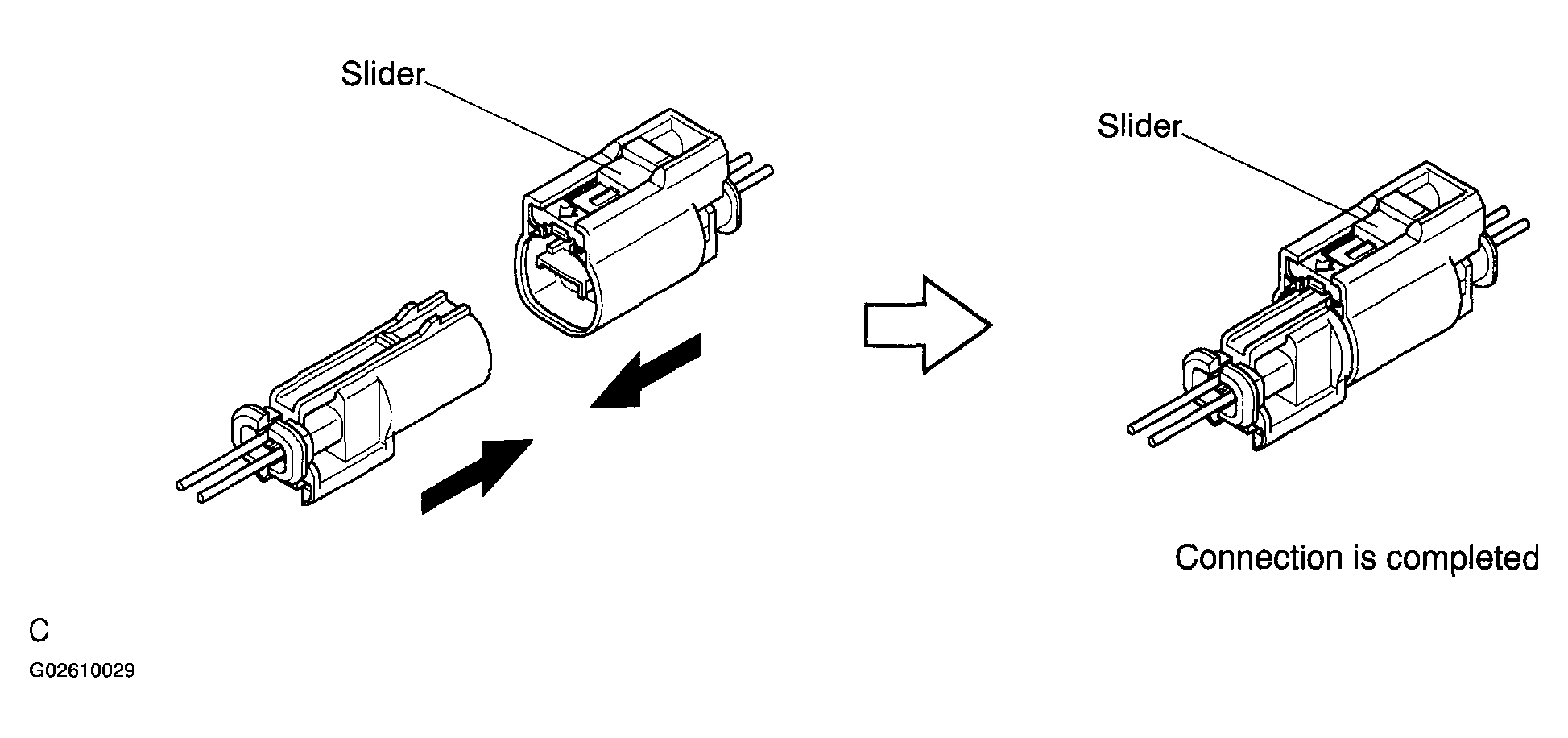

    Fig 16: Identifying Connection Of Connector For Front Seat Airbag Assy
    G02610029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. DISCONNECTION OF CONNECTORS FOR AIRBAG SENSOR FRONT, SIDE AIRBAG SENSOR ASSY AND AIRBAG SENSOR REAR
    1. While holding both outer flank sides, slide the outer in the direction shown by the arrow.
    2. When the connector lock is released, the connectors are disconnected.

    HINT:

    Be sure to hold both outer flank sides. Holding the top and bottom will make disconnection difficult.

    Fig 17: Identifying Airbag Sensor Front Connector
    G02610030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

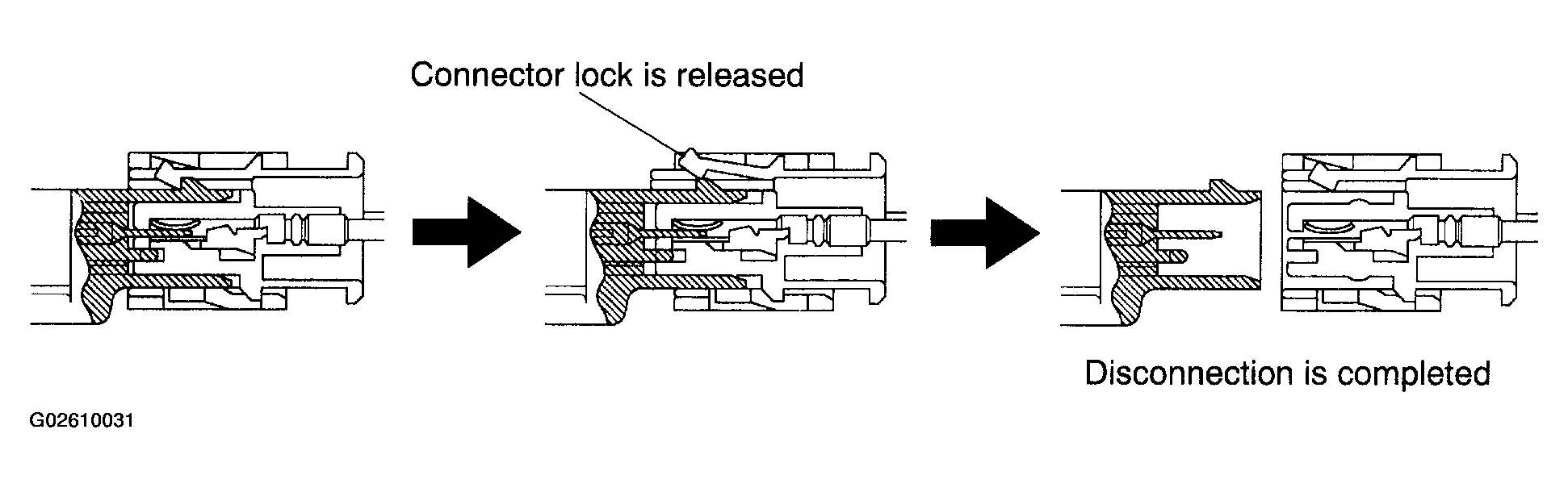

    Fig 18: Identifying Disconnection Of Connectors For Airbag Sensor Front, Side Airbag Sensor Assy & Airbag Sensor Rear
    G02610031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. CONNECTION OF CONNECTORS FOR AIRBAG SENSOR FRONT, SIDE AIRBAG SENSOR ASSY AND AIRBAG SENSOR REAR
    1. Connect the connector as shown. (When locking, make sure that the outer returns to its original position and a click sound can be heard.)

    HINT:

    When connecting, the outer will slide. Be sure not to hold the outer while connecting, as it may result in an insecure fit.

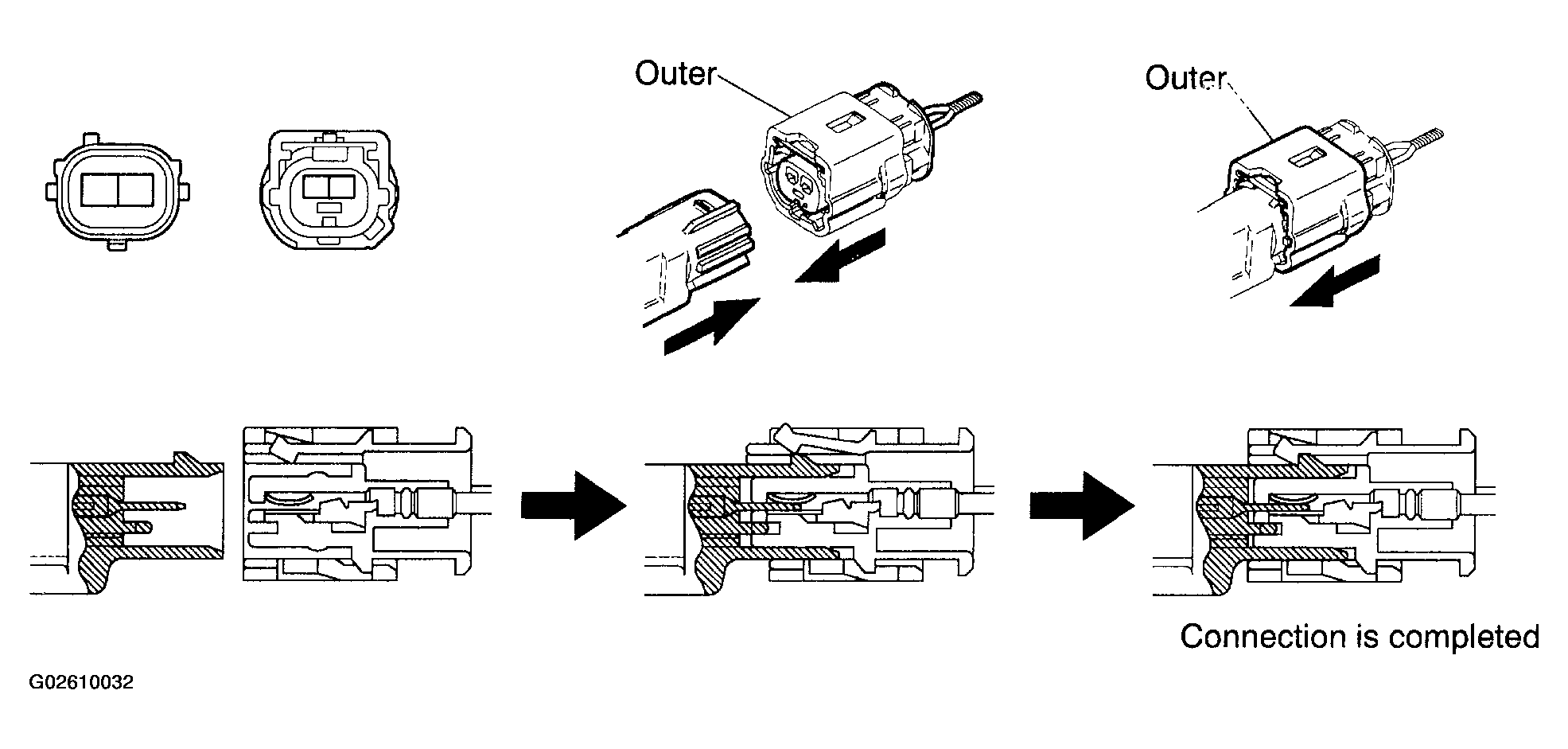

    Fig 19: Identifying Connection Of Connectors For Airbag Sensor Front, Side Airbag Sensor Assy & Airbag Sensor Rear
    G02610032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
