Coil Spring Rear LH: Replacement
HINT:
See COMPONENTS
- REMOVE REAR WHEEL

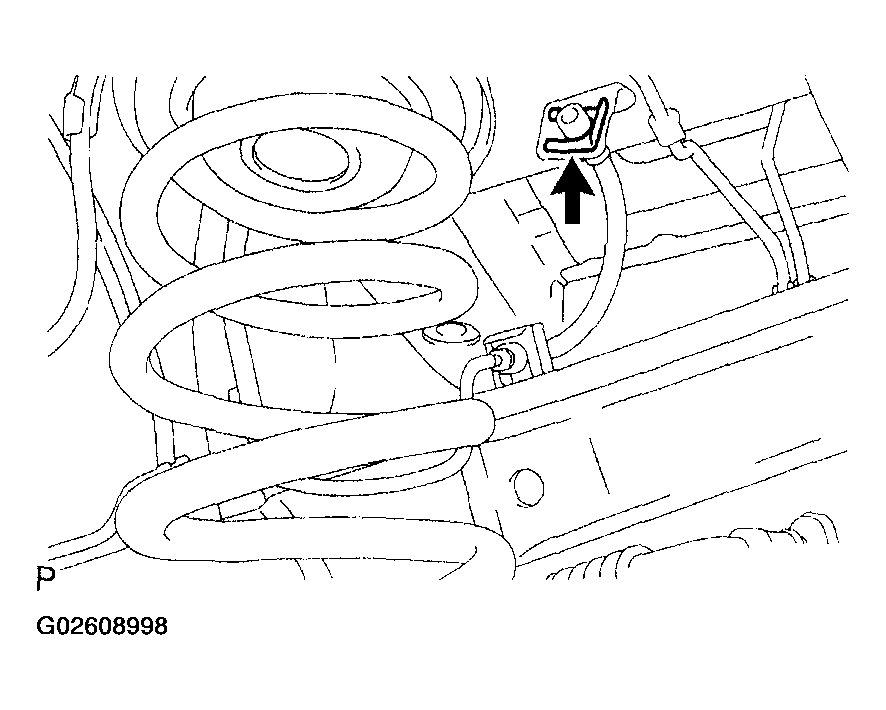

- DISCONNECT SKID CONTROL SENSOR WIRE (2WD DRIVE TYPE)

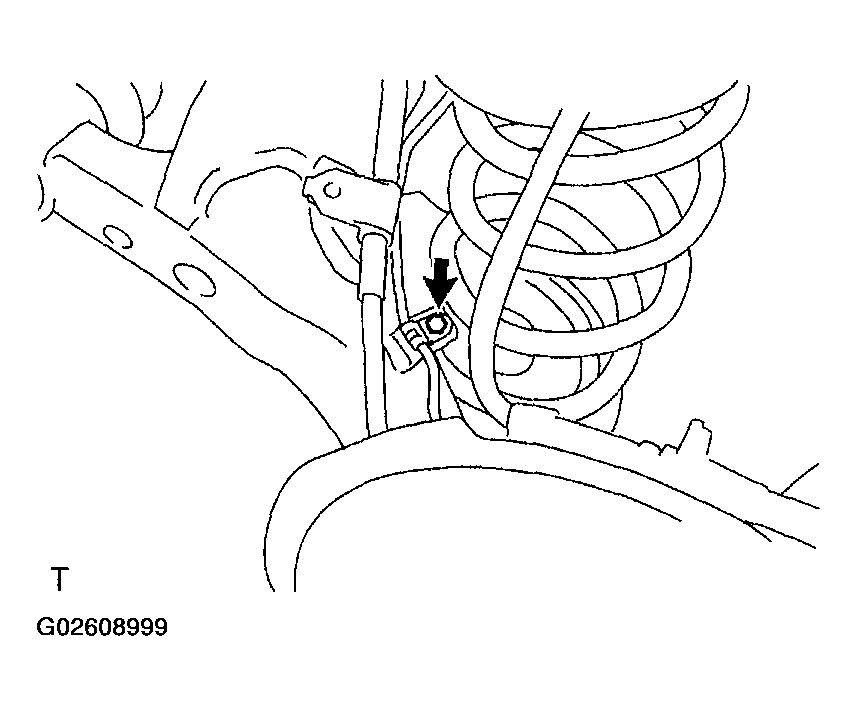

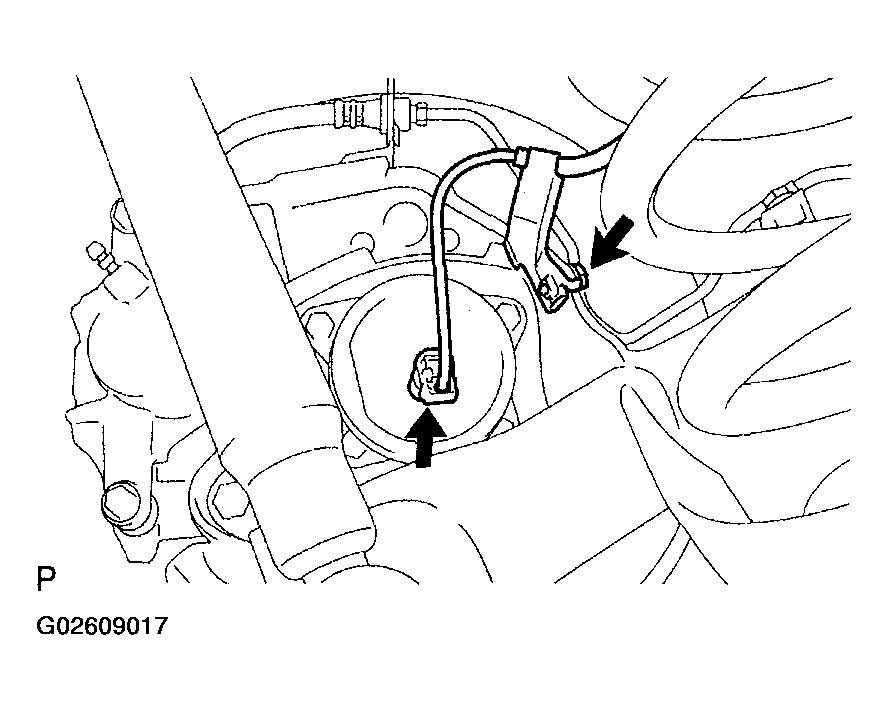

- Disconnect the skid control sensor connector.

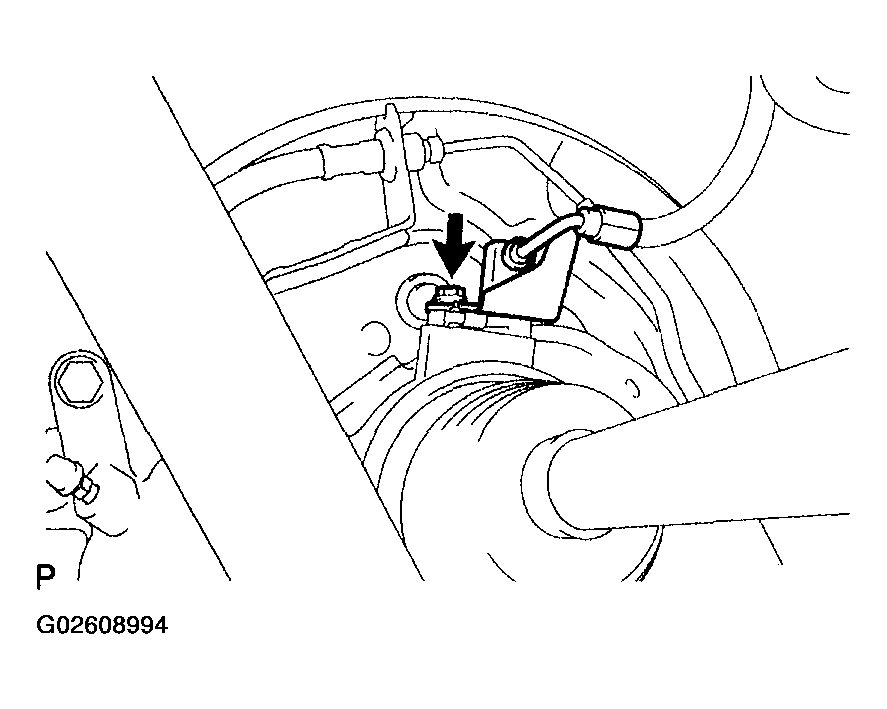

- Remove the bolt and disconnect the bracket from the rear axle beam assy.
HINT:
Separate the RH side by the same procedures as the LH side.
- SEPARATE SPEED SENSOR REAR LH (4WD DRIVE TYPE)

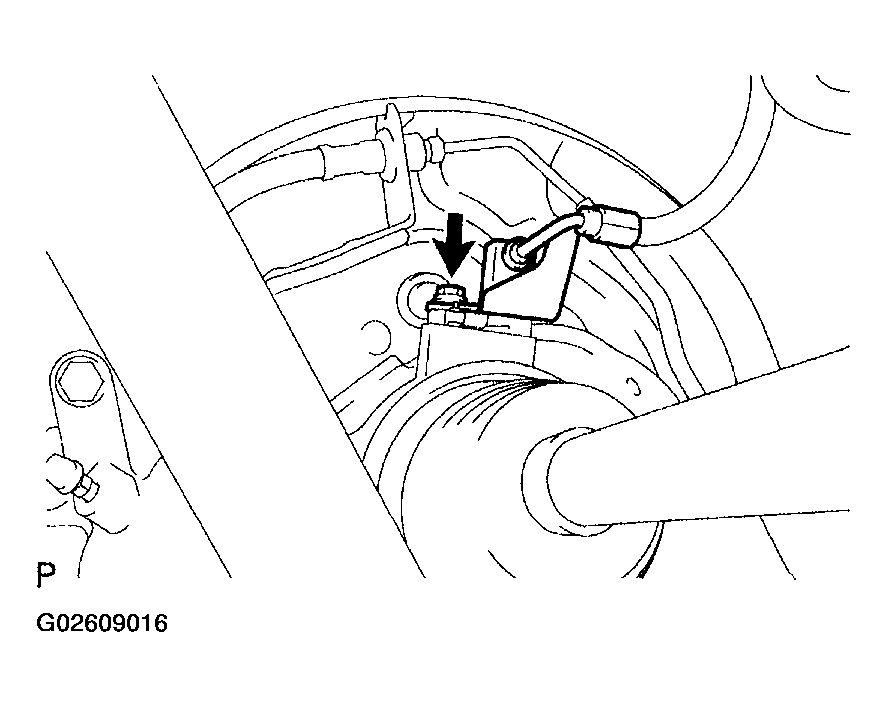

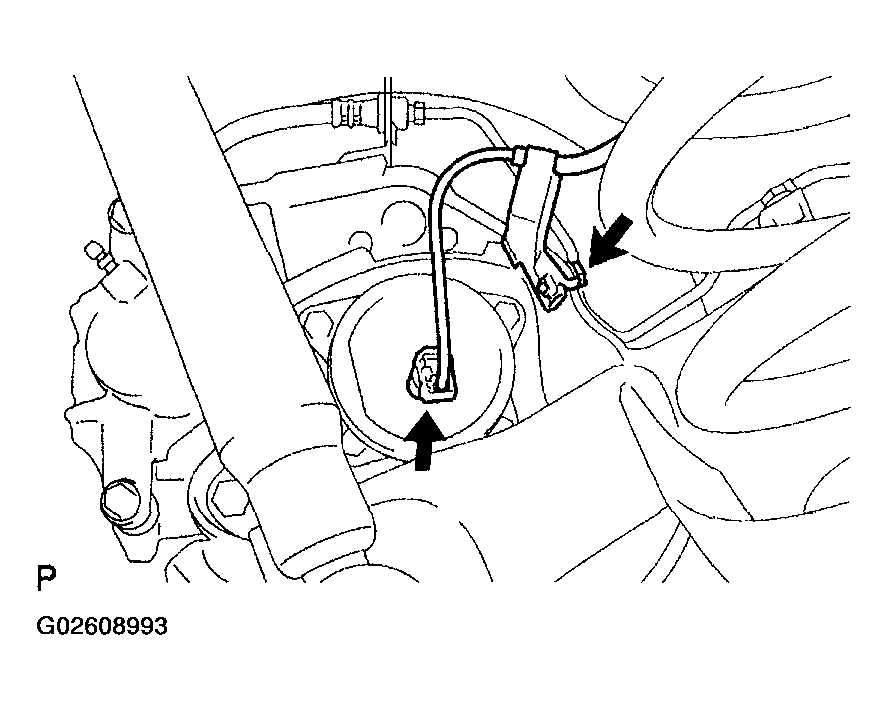

- Remove the bolt and speed sensor rear LH.
- SEPARATE SPEED SENSOR REAR RH (4WD DRIVE TYPE)
HINT:
Separate the RH side by the same procedures as the LH side.
- REMOVE EXHAUST PIPE ASSY TAIL
- 2WD DRIVE TYPE (See REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY )
- 4WD DRIVE TYPE (See REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY )
- REMOVE PROPELLER W/CENTER BEARING SHAFT ASSY (4WD DRIVE TYPE) (See OVERHAUL )
- SEPARATE REAR DRIVE SHAFT ASSY LH (4WD DRIVE TYPE)

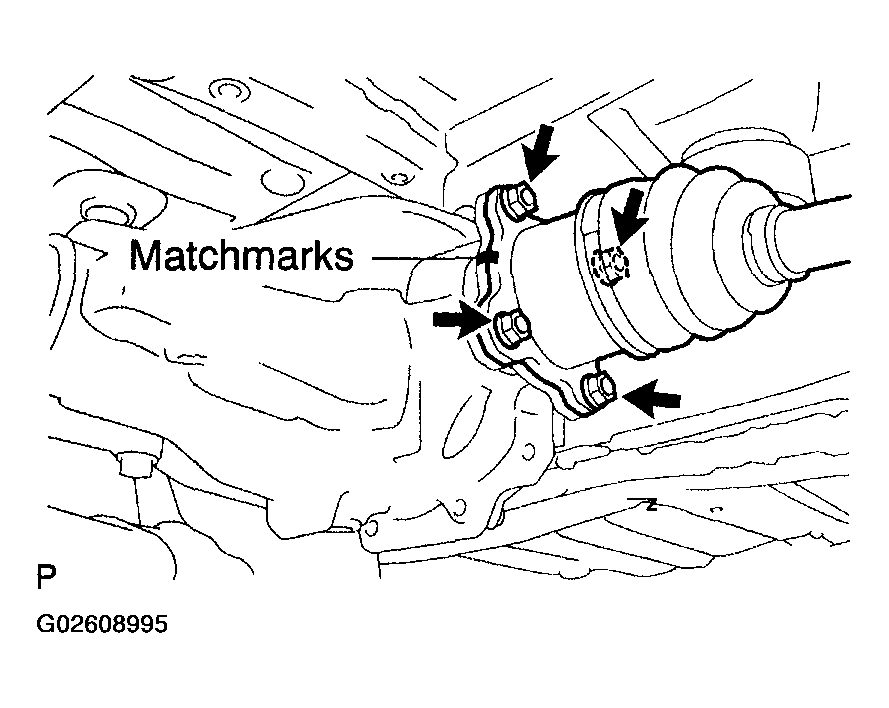

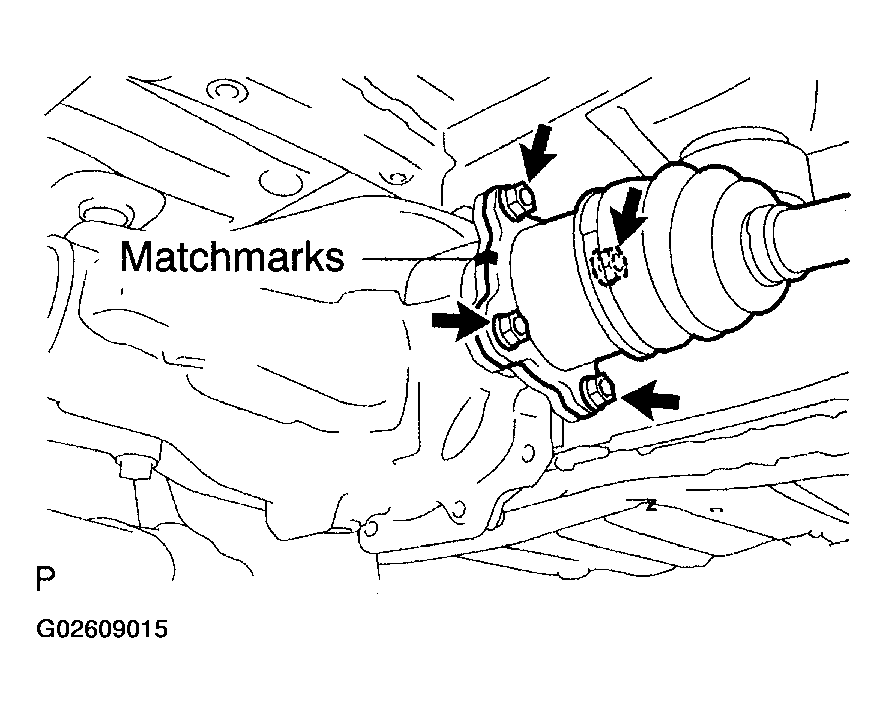

- Place matchmarks on the rear drive shaft assy LH and differential flange.
- Remove the 4 nuts and 4 washers, separate rear drive shaft assy LH.
- SEPARATE REAR DRIVE SHAFT ASSY RH (4WD DRIVE TYPE)
HINT:
Separate the RH side by the same procedures as the LH side.
- REMOVE DIFFERENTIAL CARRIER ASSY REAR (4WD DRIVE TYPE) (See DIFFERENTIAL CARRIER ASSY REAR (4WD) )
- SEPARATE PARKING BRAKE CABLE ASSY NO.3

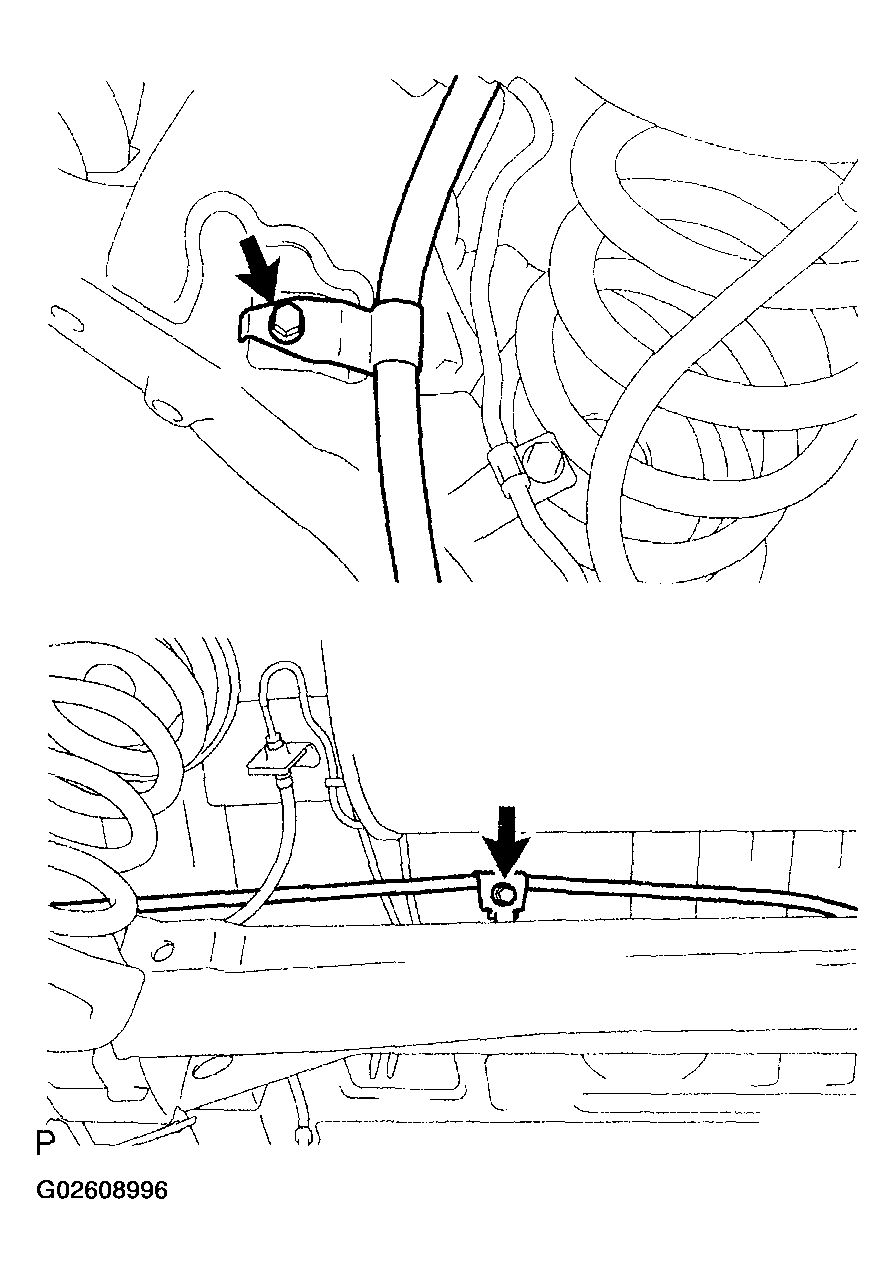

- Remove the 2 bolts and parking brake cable assy No.3.
- SEPARATE PARKING BRAKE CABLE ASSY NO.2
HINT:
Separate the RH side by the same procedures as the LH side.
- SEPARATE REAR BRAKE TUBE NO.2

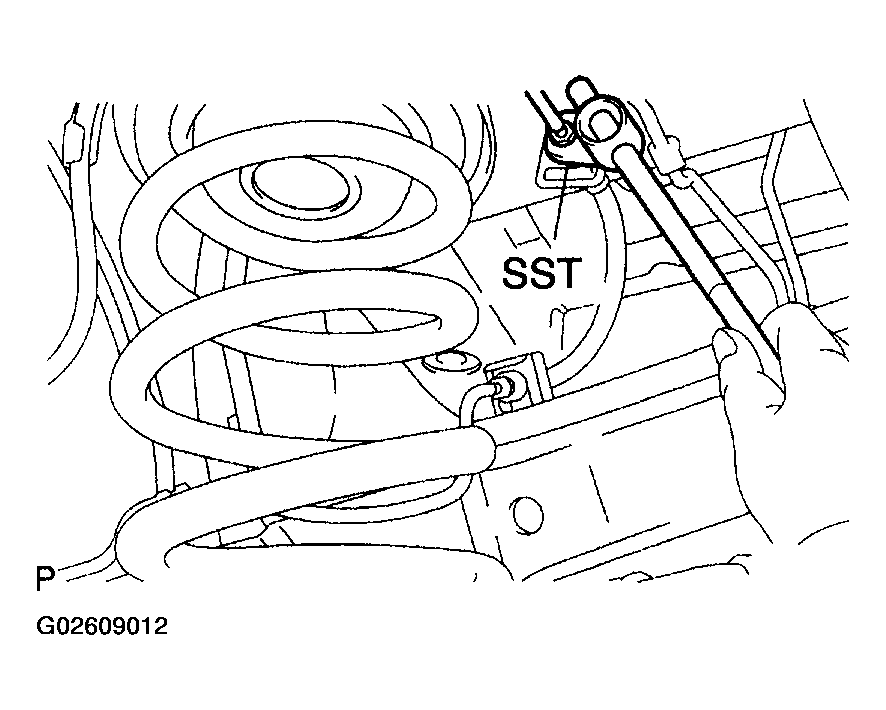

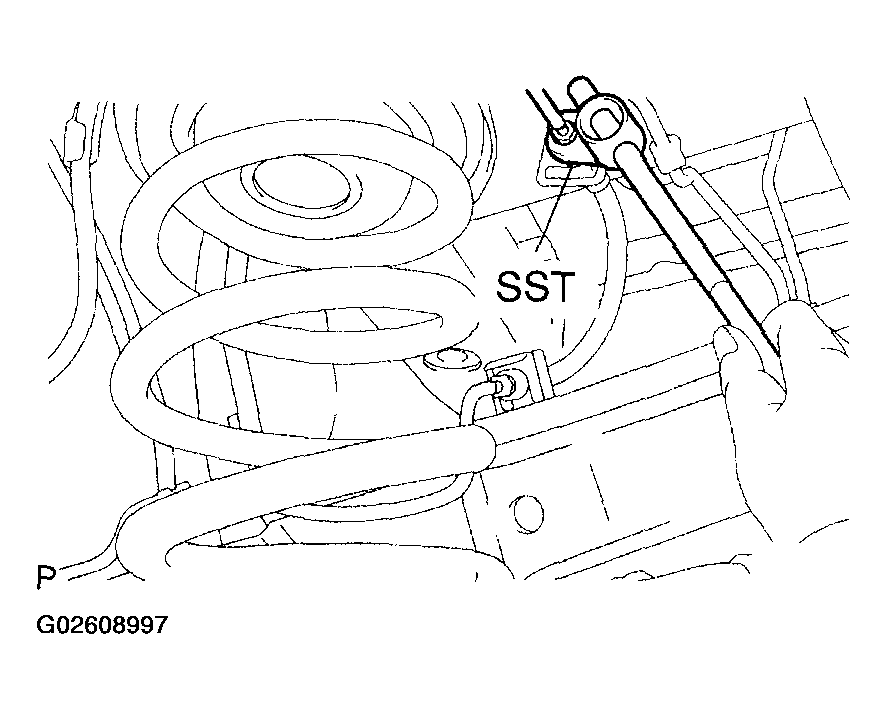

- Using SST, separate the brake tube from the flexible hose. Catch the brake fluid with a container as it drains out.
SST 09023-00101

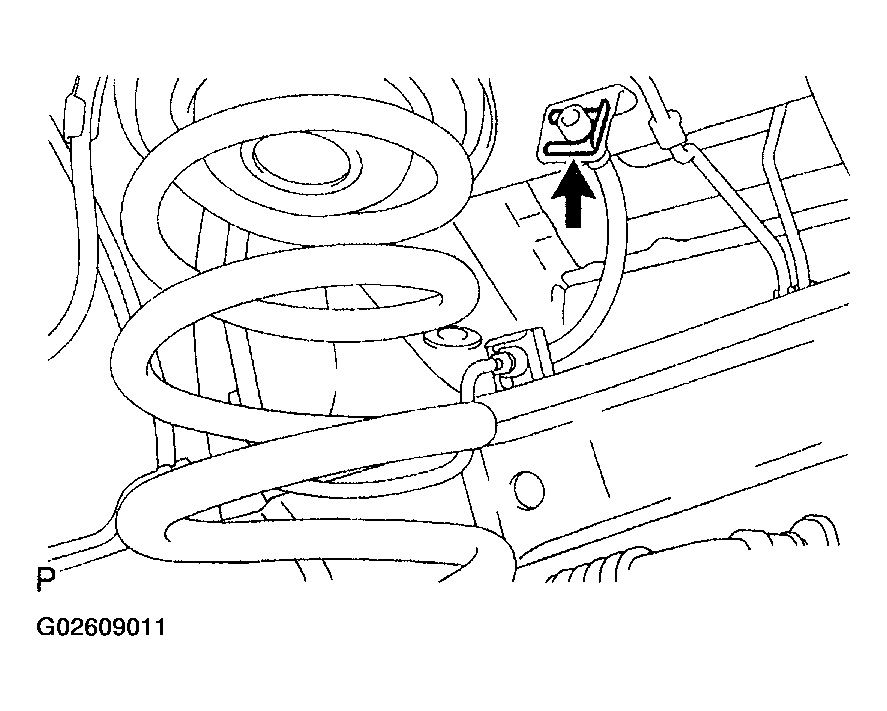

- Remove the clip, and separate the flexible hose.

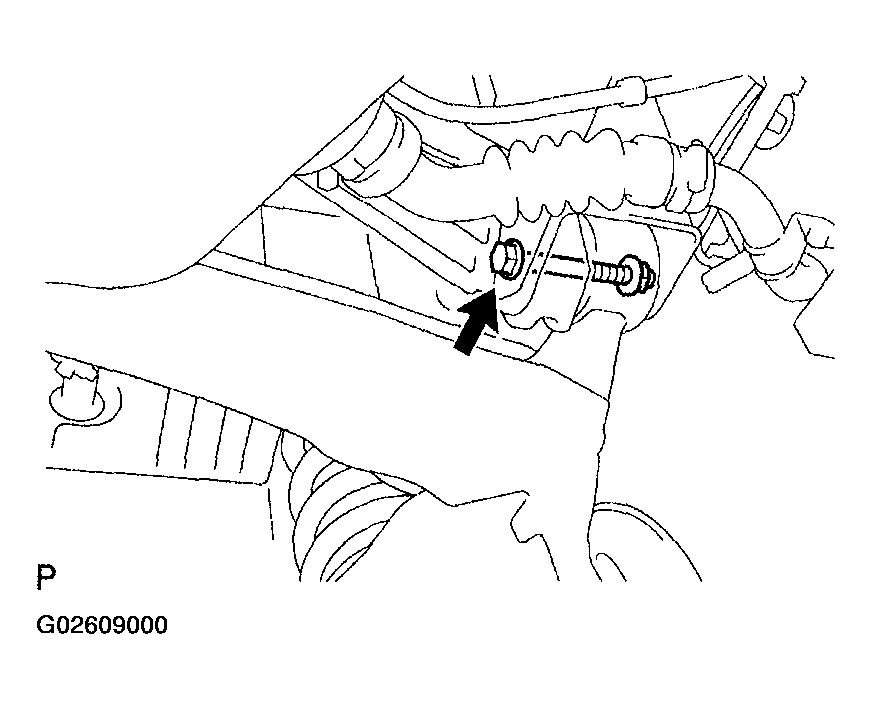

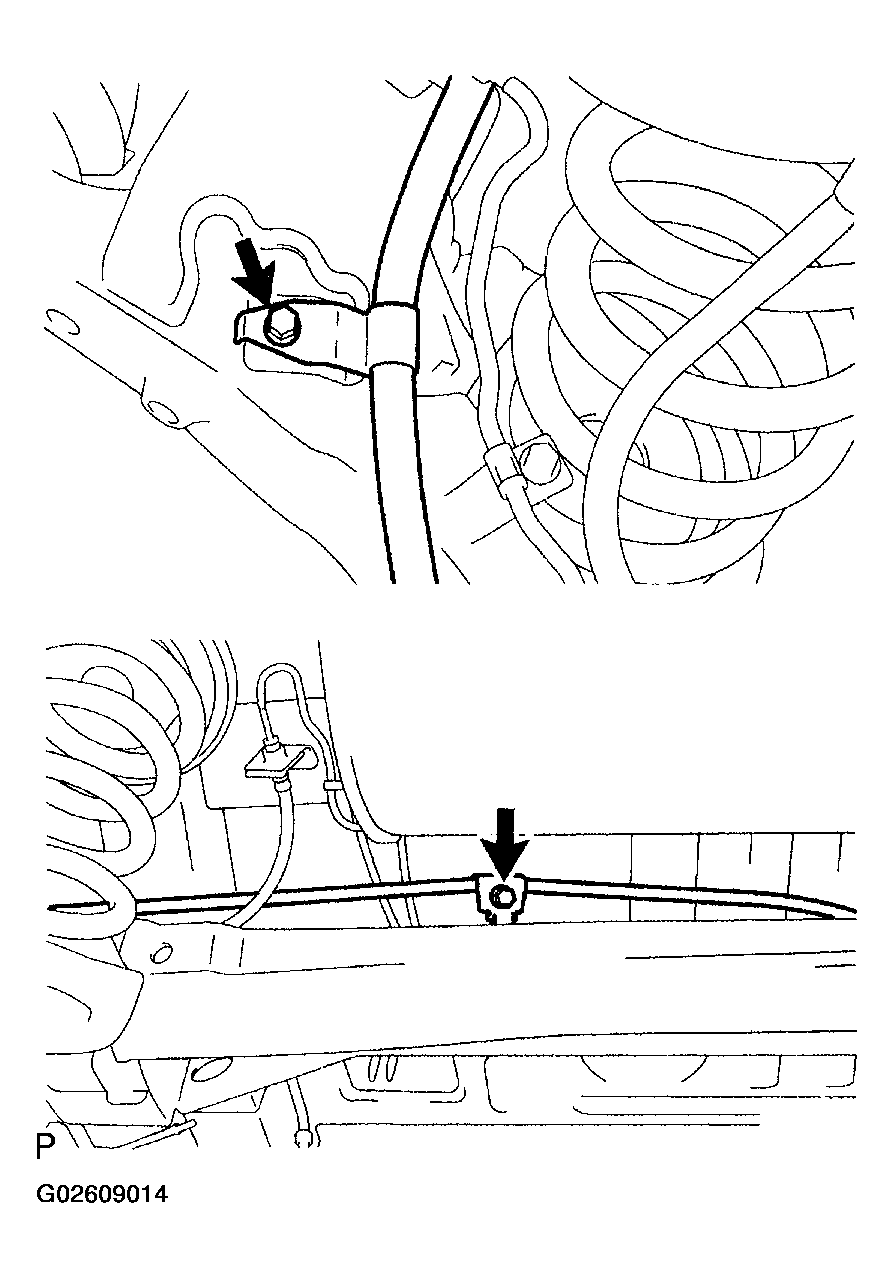

- Remove the bolt and separate the brake tube from rear axle beam assy.
- Using SST, separate the brake tube from the flexible hose. Catch the brake fluid with a container as it drains out.
- SEPARATE REAR BRAKE TUBE NO.1
SST 09023-00101
HINT:
Separate the RH side by the same procedures as the LH side.
- REMOVE FUEL TANK FILLER HOSE COVER
- Remove the 2 bolts, 3 screws, 3 nuts and fuel tank filler pipe protector.
- Remove the 3 bolts and fuel tank filler hose cover.
- REMOVE REAR FLOOR NO.2 CROSSMEMBER BRACE LH
- Remove the 2 bolts and floor No.2 crossmember brace.
- REMOVE REAR FLOOR NO.2 CROSSMEMBER BRACE RH
HINT:
Remove the RH side by the same procedures as the LH side.

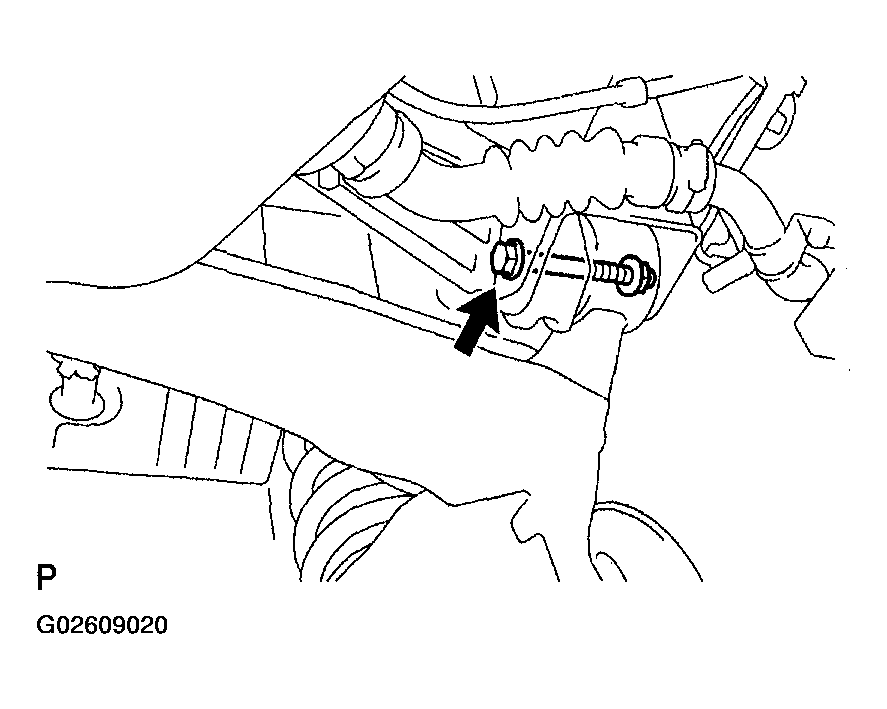

- LOOSEN REAR AXLE BEAM ASSY
HINT:
Loosen the RH side by the same procedures as the LH side.
NOTE:- When loosening the bolt, hold the nut not to rotate.
- Do not remove the bolt and nut.
- SEPARATE SHOCK ABSORBER ASSY REAR LH

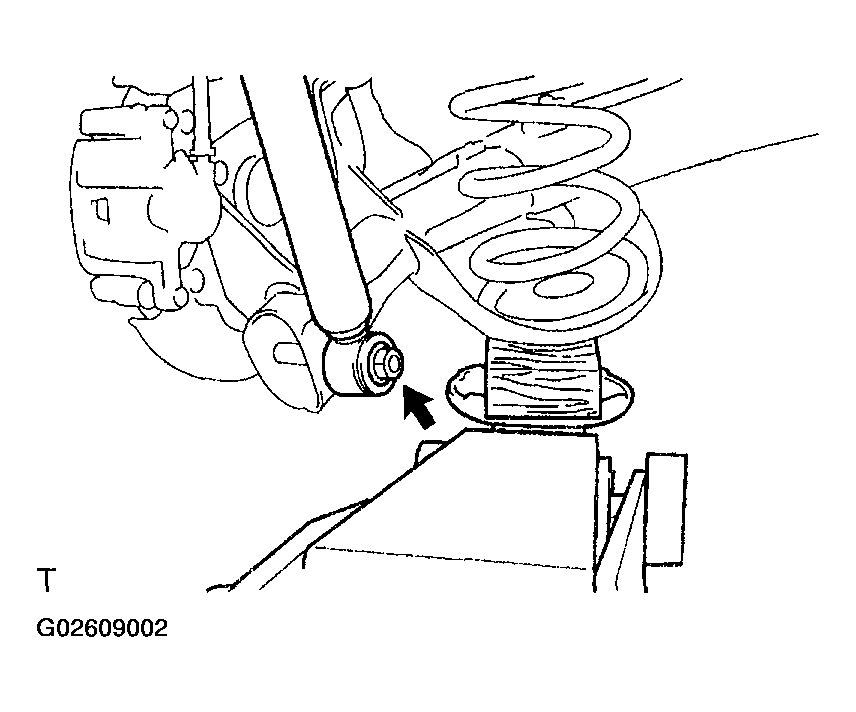

- Support the rear axle beam assy with a jack.
- Remove the bolt and separate the shock absorber assy rear LH .
- SEPARATE SHOCK ABSORBER ASSY REAR RH
HINT:
Separate the RH side by the same procedures as the LH side.
- REMOVE COIL SPRING REAR LH

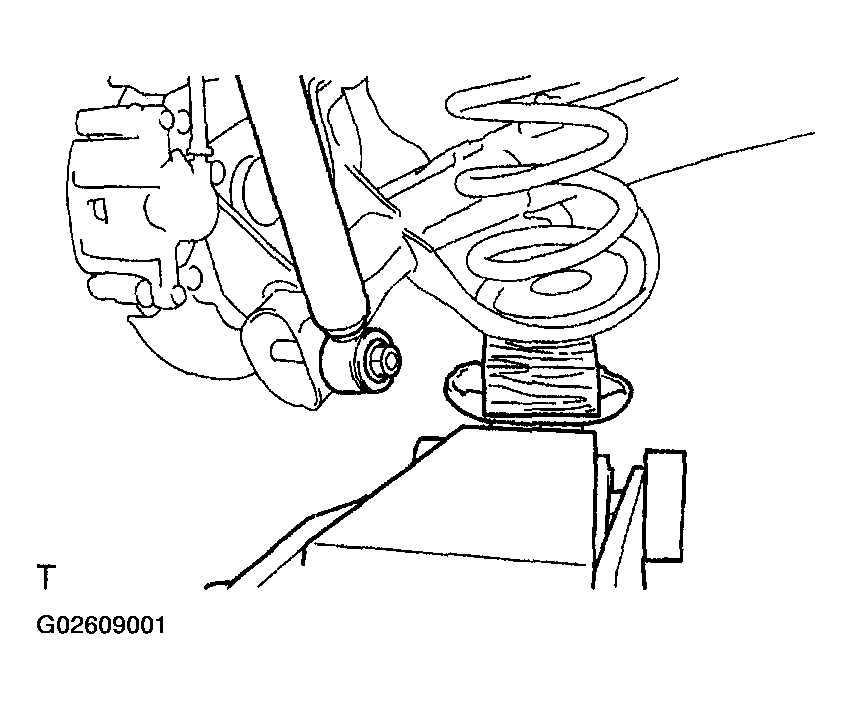

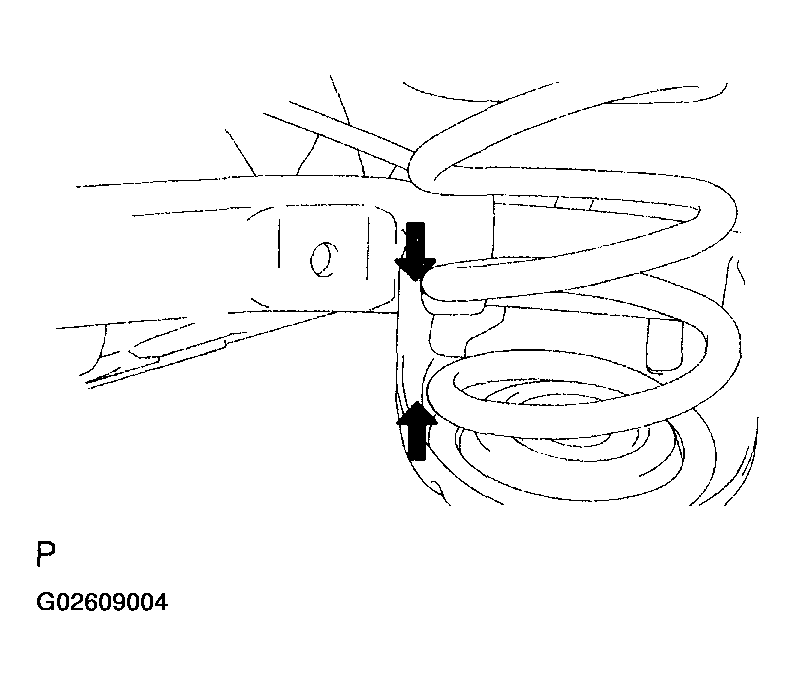

- Apply a shop rug between the coil spring rear LH and rear axle beam assy.
- Apply a shop rug between the coil spring rear RH and rear axle beam assy.
- Remove the coil spring LH by slowly lowering the jack.

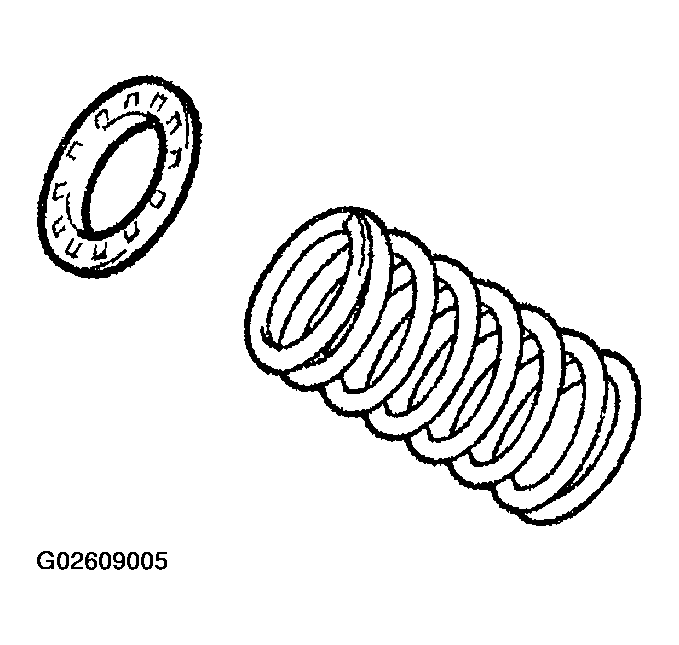

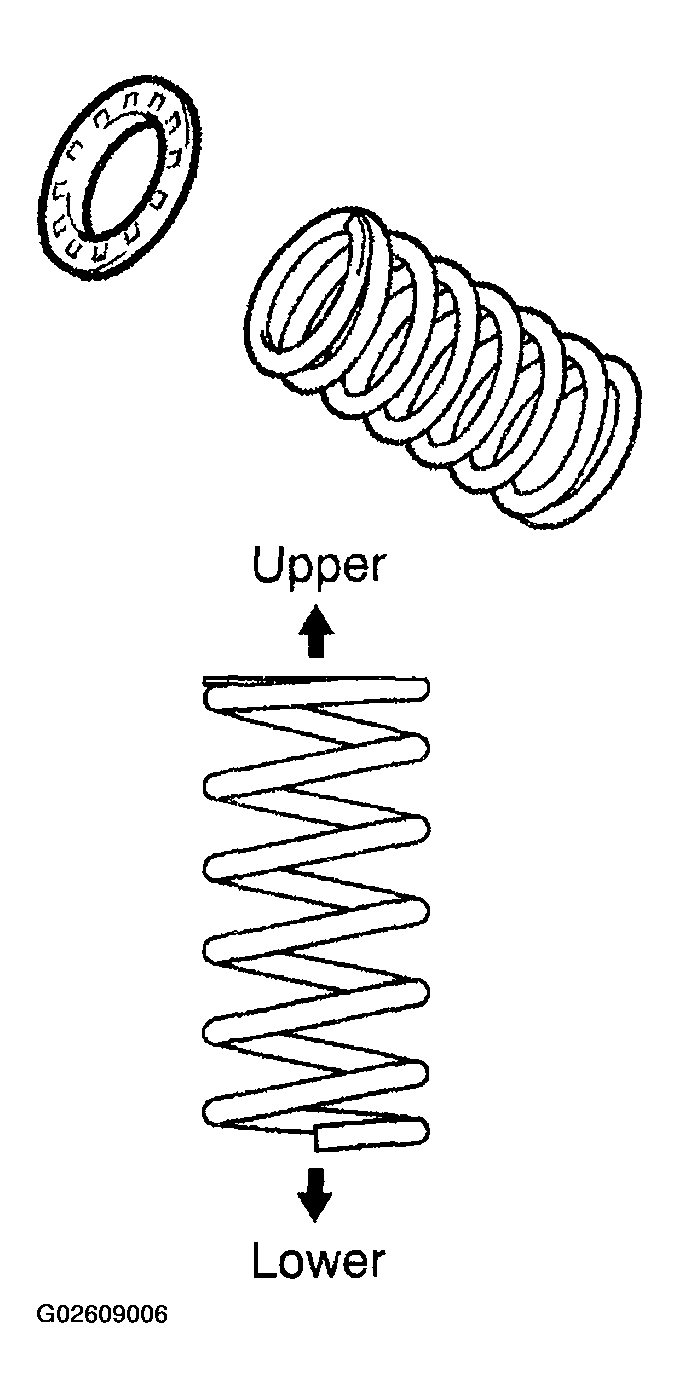

- REMOVE REAR COIL SPRING INSULATOR UPPER LH
- Remove the rear coil spring insulator upper LH from the coil spring rear LH.
- INSTALL REAR COIL SPRING INSULATOR UPPER LH
- Install the insulator upper LH to the coil spring rear LH.
- INSTALL COIL SPRING REAR LH
- Apply a shop rug to the rear axle beam assy.
- Install the coil spring rear LH to the rear axle beam assy.
HINT:

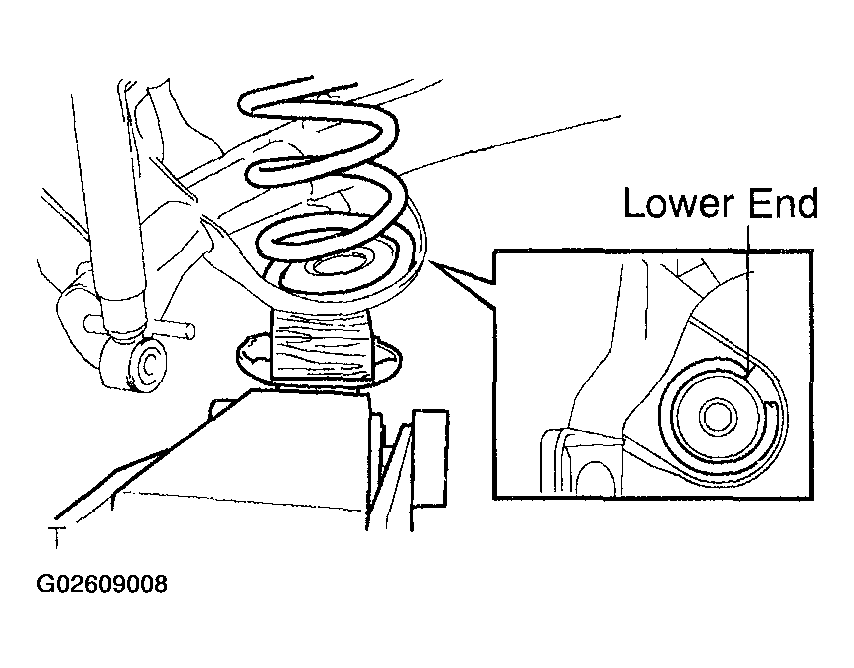

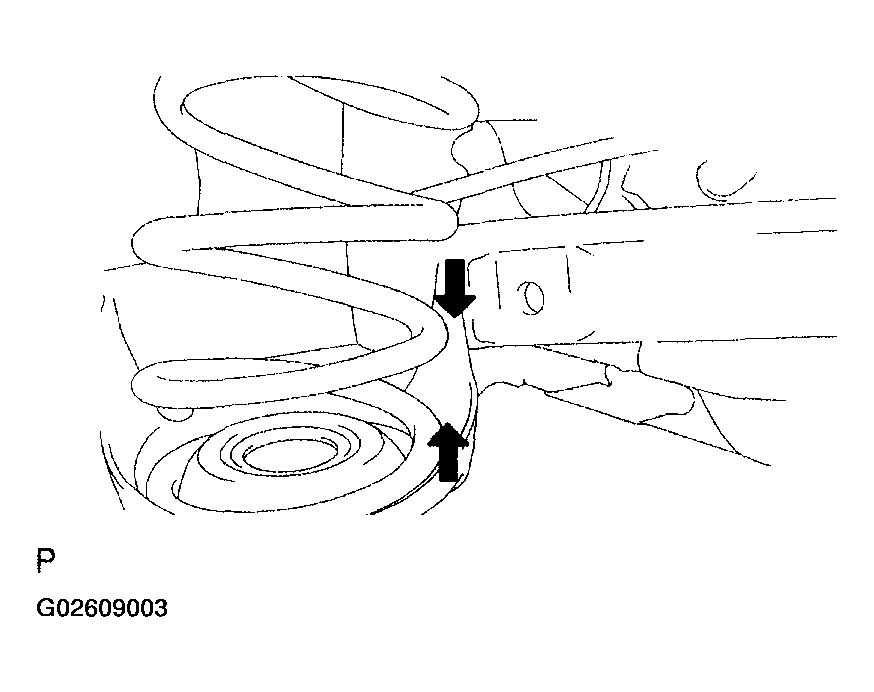

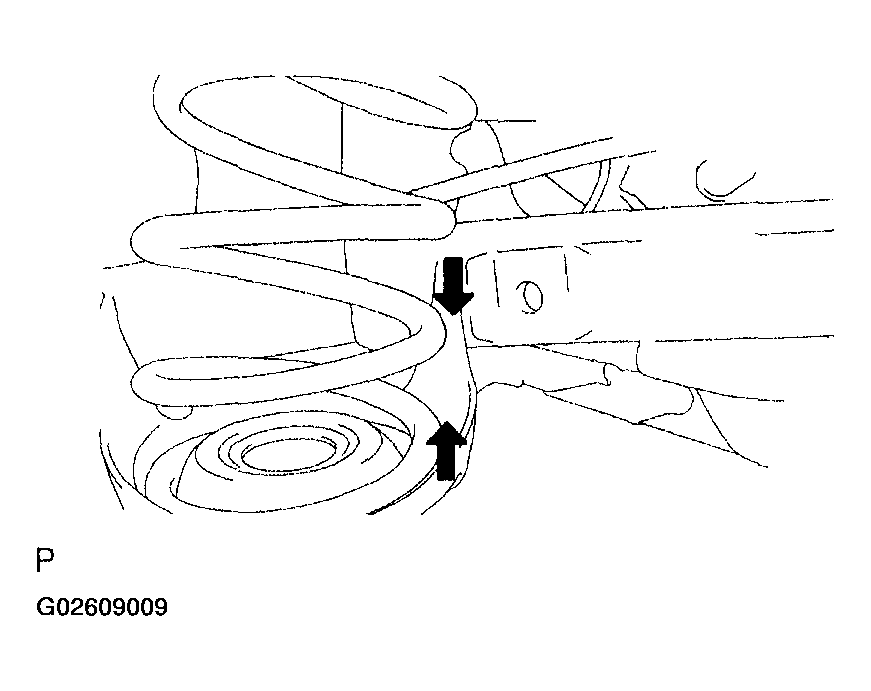

Fit the lower end of the coil spring into the gap of the spring lower seat.
- Apply a shop rug to the rear axle beam assy.
- CONNECT SHOCK ABSORBER ASSY REAR LH
- While raising the jack, connect the shock absorber assy rear LH to the rear axle beam assy.
- Temporarily tighten the nut.
- CONNECT SHOCK ABSORBER ASSY REAR RH
HINT:
Connect the RH side by the same procedures as the LH side.
- CONNECT REAR BRAKE TUBE NO.2
- Install the flexible hose and clip.
- Using SST, connect the brake tube to the flexible hose.
Torque: 15 N.m (153 kgf.cm, 11 ft.lbf)
SST 09023-00101
- Install the bolt.
Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
- CONNECT REAR BRAKE TUBE NO.1
SST 09023-00101
HINT:
Connect the RH side by the same procedures as the LH side.
- INSTALL PARKING BRAKE CABLE ASSY NO.3
- Install the 2 bolts and parking brake cable assy No.3 to the rear axle beam assy.
Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
- Install the 2 bolts and parking brake cable assy No.3 to the rear axle beam assy.
- INSTALL PARKING BRAKE CABLE ASSY NO.2
HINT:
Install the RH side by same procedures as the LH side.
- INSTALL DIFFERENTIAL CARRIER ASSY REAR (4WD DRIVE TYPE) (See DIFFERENTIAL CARRIER ASSY REAR (4WD) )
- INSTALL REAR DRIVE SHAFT ASSY LH (4WD DRIVE TYPE)
- Install the rear drive shaft assy LH, 4 washers and 4 nuts.
Torque: 56 N.m (571 kgf.cm, 41 ft.lbf)
- Install the rear drive shaft assy LH, 4 washers and 4 nuts.
- INSTALL REAR DRIVE SHAFT ASSY RH (4WD DRIVE TYPE)
HINT:
Install the RH side by same procedures as the LH side.
- INSTALL PROPELLER W/CENTER BEARING SHAFT ASSY (4WD DRIVE TYPE) (See OVERHAUL )
- INSTALL SPEED SENSOR REAR LH (4WD DRIVE TYPE)
- Install the speed sensor rear LH and bolt.
Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
- Install the speed sensor rear LH and bolt.
- INSTALL SPEED SENSOR REAR RH (4WD DRIVE TYPE)
HINT:
Install the RH side by same procedures as the LH side.
- CONNECT SKID CONTROL SENSOR WIRE (2WD DRIVE TYPE)

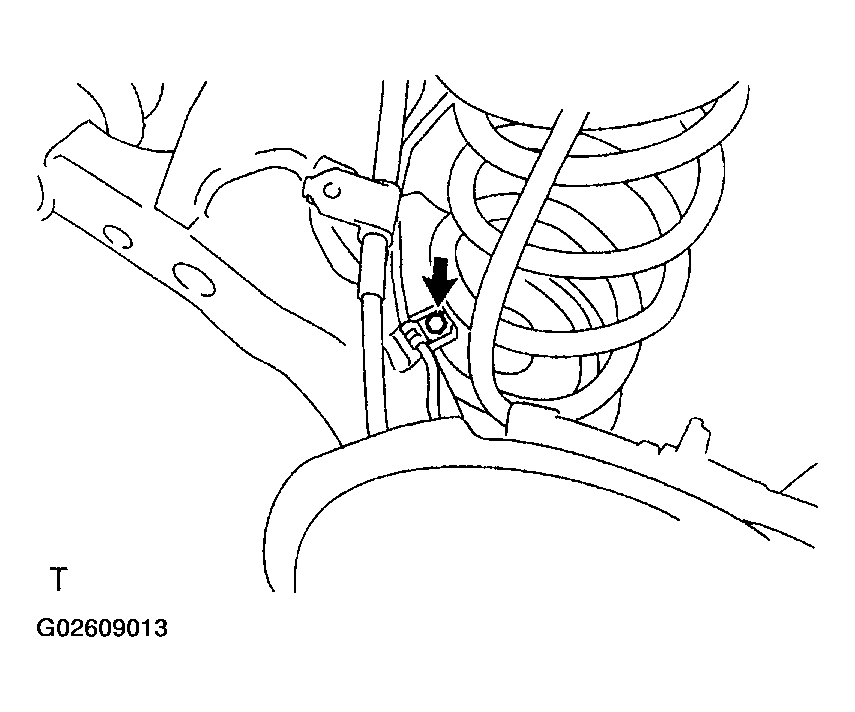

- Connect the skid control sensor connector.
- Install the bolt and bracket to the rear axle beam assy.
Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)
HINT:
Connect the RH side by same procedures with the LH side.
- INSTALL EXHAUST PIPE ASSY TAIL
- 2WD DRIVE TYPE (See REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY )
- 4WD DRIVE TYPE (See REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY )
- BLEED BRAKE LINE (See BLEEDING )
- INSPECT BRAKE FLUID LEVEL IN RESERVOIR
- STABILIZE SUSPENSION
- Install the rear wheel and jack down the vehicle.
Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
- Bounce the vehicle up and down several times to stabilize the suspension.
- Install the rear wheel and jack down the vehicle.
- FULLY TIGHTEN SHOCK ABSORBER ASSY REAR LH
- Stabilize the shock absorber assy rear LH.
If it is impossible to tighten the nut at this position, support the rear axle beam assy with a jack and load the rear compartment with a mass of approximately 90 kg (198 lb).

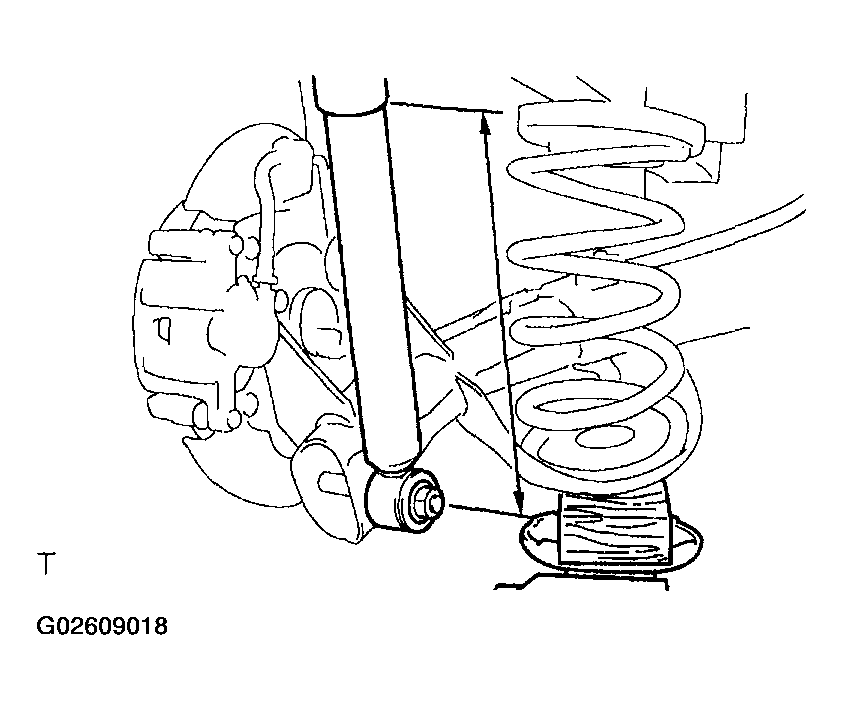

Length of shock absorber:
2WD DRIVE TYPE: 234 mm (9.2 in.)
4WD DRIVE TYPE: 258 mm (10.2 in.)
- Fully tighten the nut.
Torque: 115 N.m (1,173 kgf.cm, 85 ft.lbf)
- Stabilize the shock absorber assy rear LH.
- FULLY TIGHTEN SHOCK ABSORBER ASSY REAR RH
HINT:
Fully tighten the RH side by same procedures as the LH side.
- FULLY TIGHTEN REAR AXLE BEAM ASSY
- Stabilize the rear axle beam assy.
- Fully tighten the bolt.
Torque: 135 N.m (1,377 kgf.cm, 100 ft.lbf)
NOTE:- Tighten the bolt and not the nut.
- The vehicle height should be the same as the height that the shock absorber is fully tightened.
HINT:
Fully tighten the RH side by same procedures as the LH side.
- INSTALL REAR FLOOR NO.2 CROSSMEMBER BRACE LH
- Install the floor No.2 crossmember brace and 2 bolts.
Torque: 28 N.m (286 kgf.cm, 21 ft.lbf)
- Install the floor No.2 crossmember brace and 2 bolts.
- INSTALL REAR FLOOR NO.2 CROSSMEMBER BRACE RH
HINT:
Install the RH side by the same procedures as the LH side.
- INSTALL FUEL TANK FILLER HOSE COVER
- Install the fuel tank filler pipe protector, 2 bolts, 3 screws and 3 nuts.
- Install the fuel tank filler hose cover and 3 bolts.
Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)
- INSPECT REAR WHEEL ALIGNMENT
- CHECK ABS SPEED SENSOR SIGNAL
