Rear Suspension System: Components

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

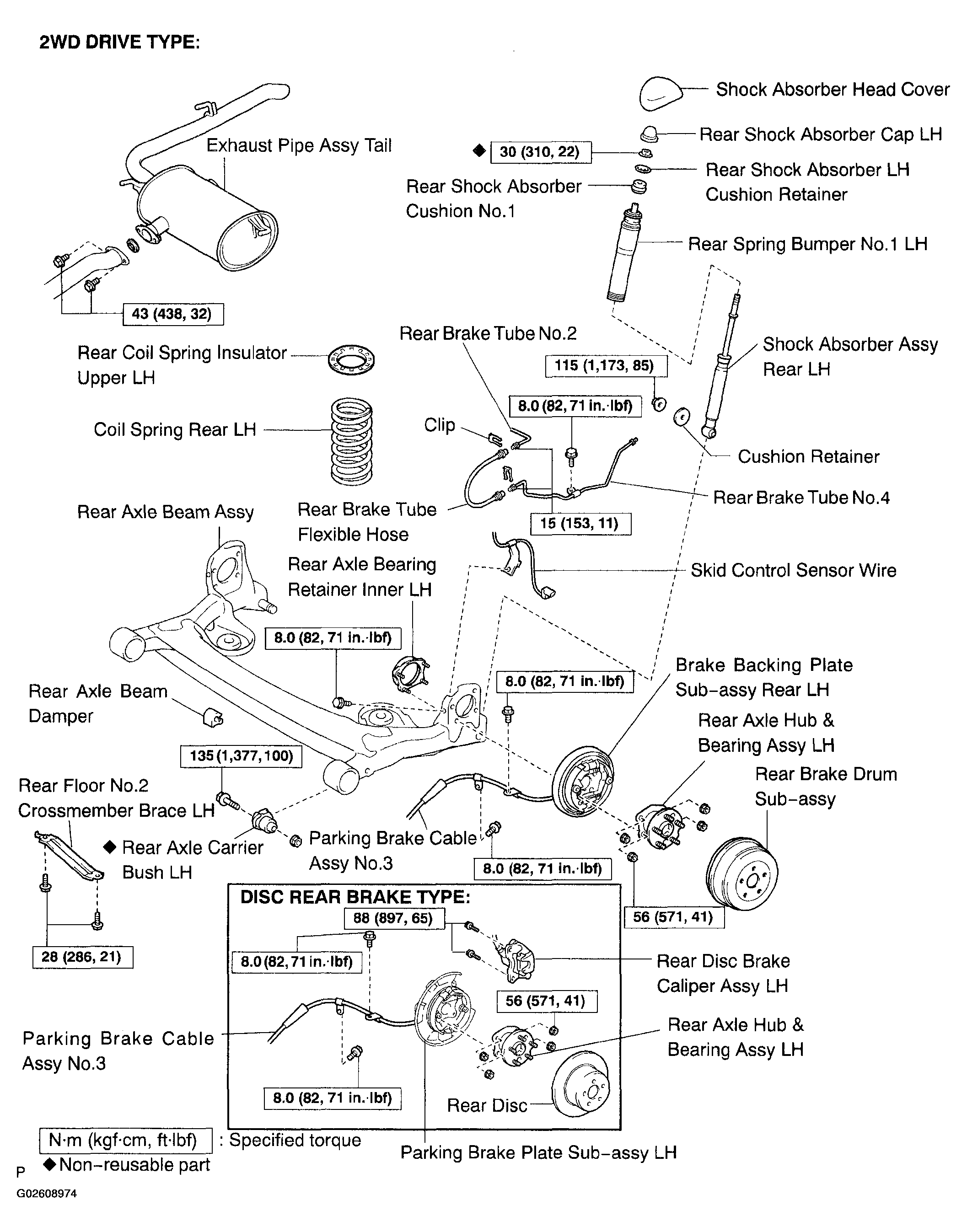

Fig 1: Exploded View Of Rear Suspension Components (1 Of 2)
G02608974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

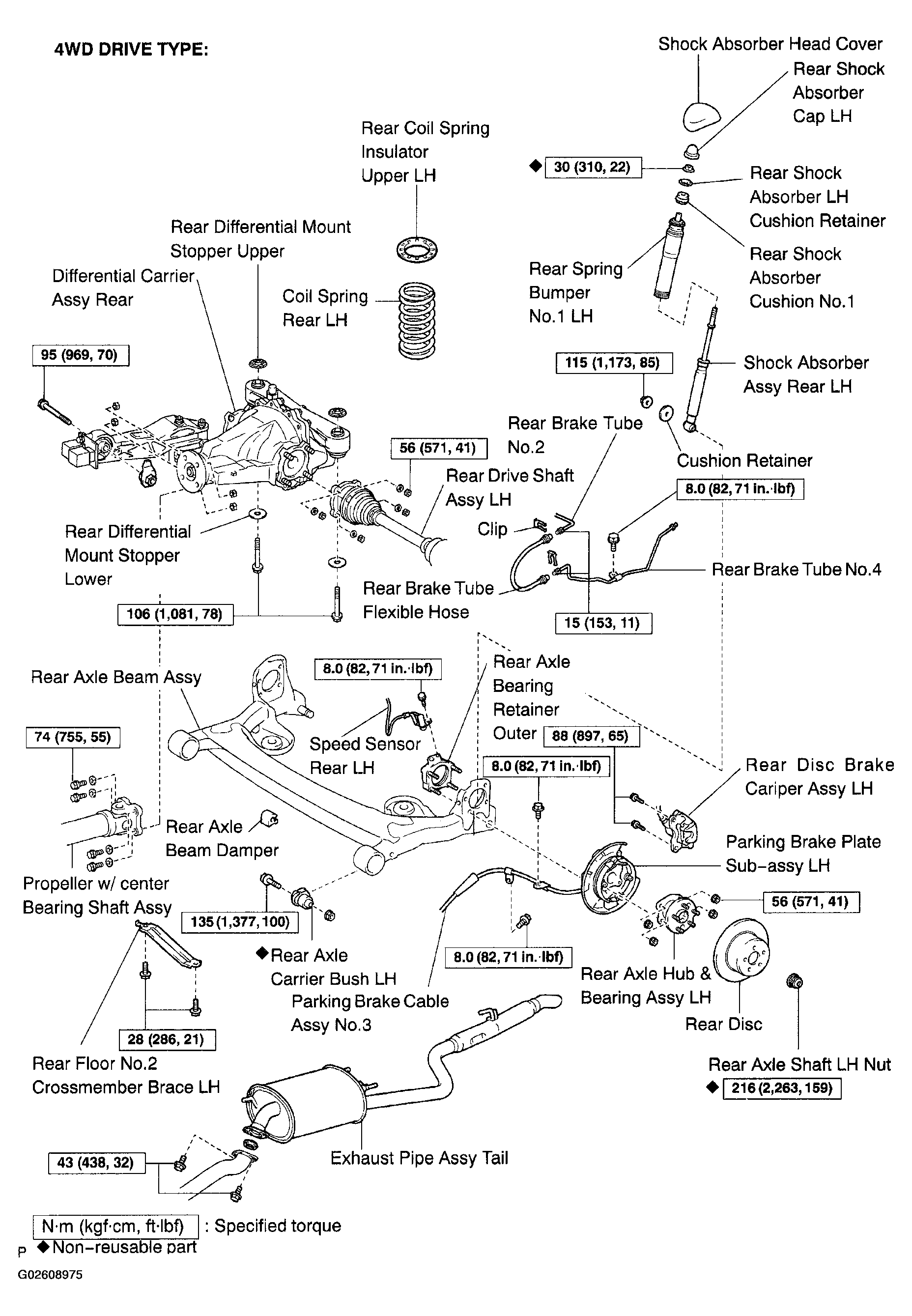

Fig 2: Exploded View Of Rear Suspension Components (2 Of 2)
G02608975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
