Section 164 (Thermostat): Replacement

WARNING: This page is about a different car, the 2004 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. DRAIN COOLANT, see  REPLACEMENT  .
  2. REMOVE BATTERY
  3. REMOVE AIR CLEANER CAP SUB-ASSEMBLY, see  REPLACEMENT  .
  4. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY
  5. REMOVE AIR CLEANER INLET NO. 2, see  REPLACEMENT  .
  6. REMOVE AIR CLEANER CASE, see  REPLACEMENT  .
  7. REMOVE AIR CLEANER BRACKET, see  REPLACEMENT  .
  8. REMOVE AIR CLEANER INLET NO. 1, see  REPLACEMENT  .
  9. REMOVE STARTER ASSEMBLY, see  REPLACEMENT  .
  10. DISCONNECT RADIATOR HOSE OUTLET
  11. REMOVE WATER INLET
    1. Disconnect the wire harness clamp.
    2. Remove the bolts, the 3 nuts and the water inlet.

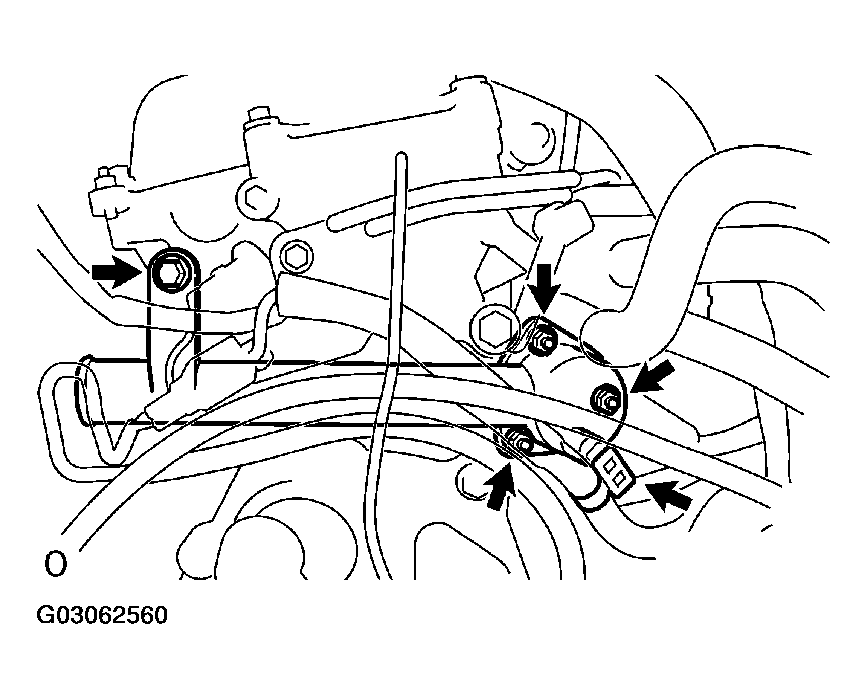

    Fig 1: Removing Water Inlet
    G03062560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE THERMOSTAT
  13. INSTALL THERMOSTAT
    1. Install a new gasket to the thermostat.
    2. Align the thermostat jiggle valve with the upper stud bolt, and insert the thermostat in the water inlet housing.

    HINT:

    The jiggle valve may be set within 15° of either side of the prescribed position.

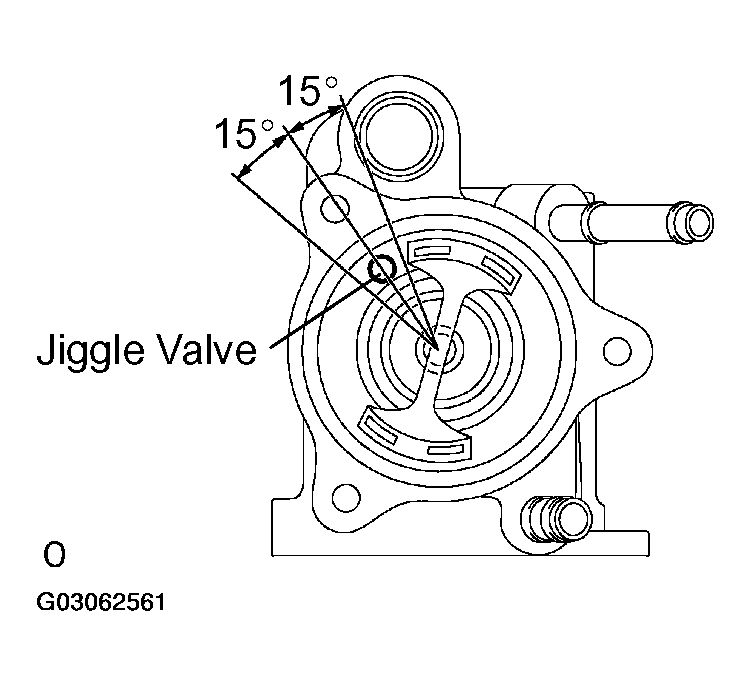

    Fig 2: Installing Thermostat
    G03062561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL WATER INLET

    Torque:

    Nut 8.0 N.m (82 kgf.cm, 71 in.lbf)

    Bolt 20 N.m (199 kgf.cm, 14 ft.lbf)

  15. INSTALL STARTER ASSEMBLY, see  REPLACEMENT  .
  16. INSTALL AIR CLEANER INLET NO. 1, see  REPLACEMENT  .
  17. INSTALL AIR CLEANER BRACKET, see  REPLACEMENT  .
  18. INSTALL AIR CLEANER CASE, see  REPLACEMENT  .
  19. INSTALL AIR CLEANER INLET NO. 2, see  REPLACEMENT  .
  20. INSTALL AIR CLEANER CAP SUB-ASSEMBLY, see  REPLACEMENT  .
  21. ADD COOLANT, see  REPLACEMENT  .
  22. CHECK FOR ENGINE COOLANT LEAKS, see  REPLACEMENT  .
