Starter ASSY: Replacement

1. Disconnect the VSV connector.
2. Remove the wire harness clamp.
3. Remove the 2 bolts and the air cleaner inlet No. 2.

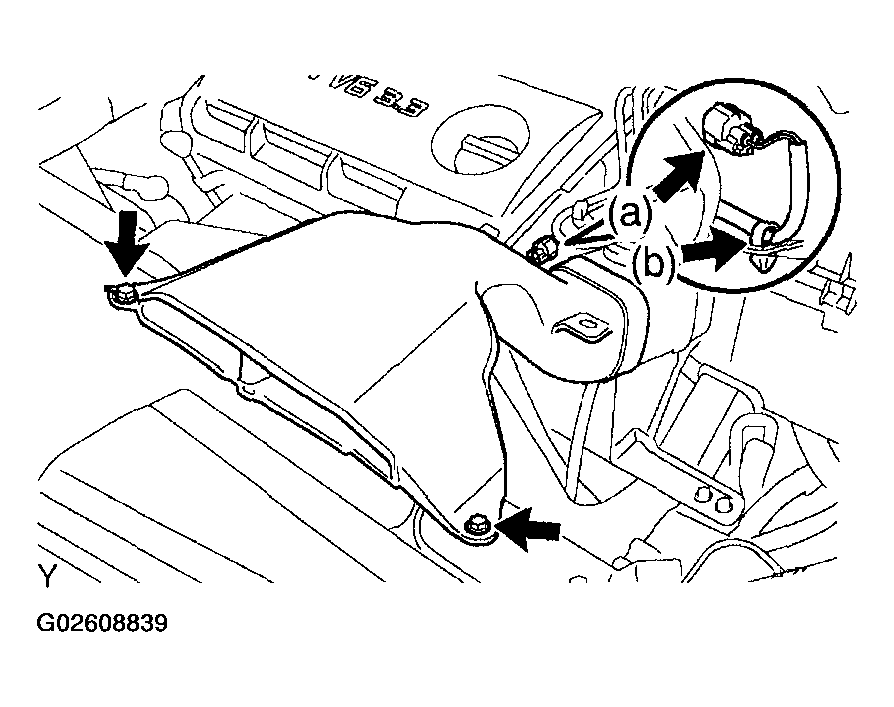

Fig 1: Removing 2 Bolts And Air Cleaner Inlet No. 2

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the mass air flow meter connector.
2. Disconnect the 3 vacuum hoses.
3. Loosen the 2 air cleaner cap bolts.
4. Loosen the air cleaner hose clamp bolt and remove the air cleaner cap together with the air cleaner hose No. 1.
5. Remove the air cleaner filter element.

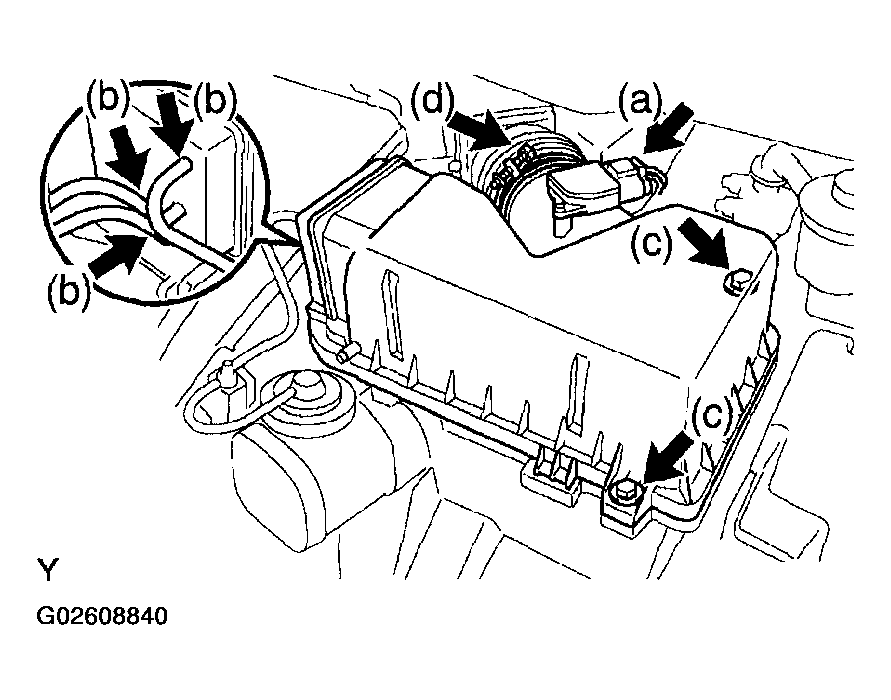

   Fig 2: Loosening Air Cleaner Hose Clamp Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Remove the wire harness clamp.
7. Remove the wire harness from the wire harness clamp.
8. Remove the 3 bolts and the air cleaner case.

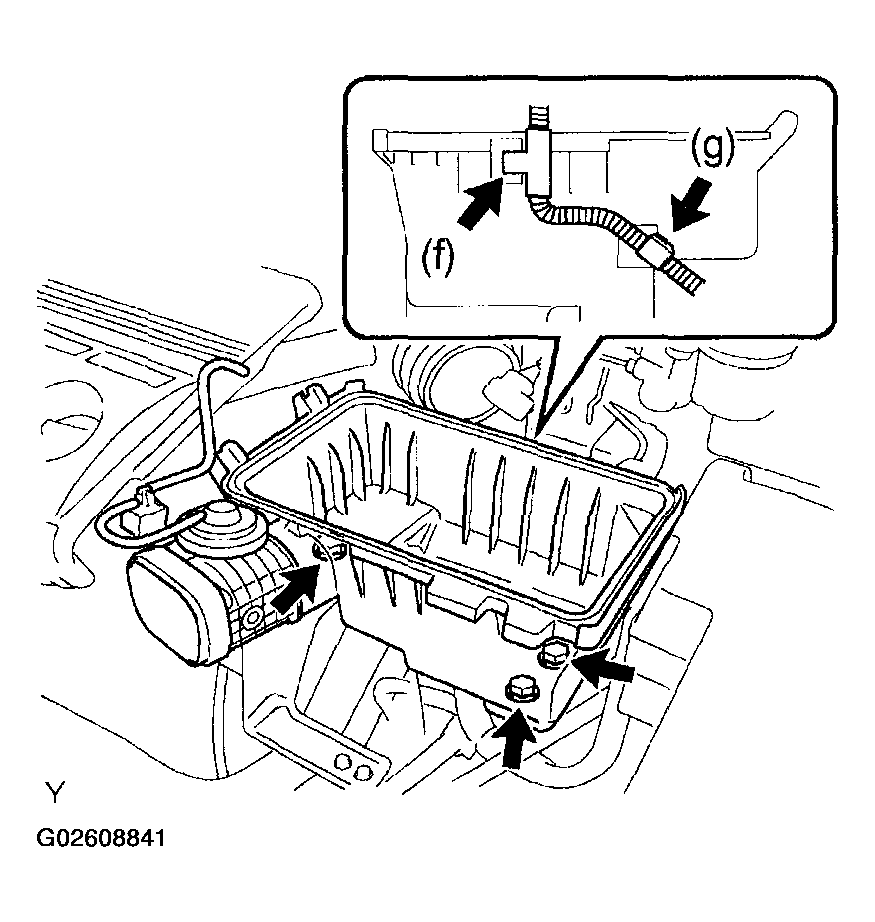

Fig 3: Removing Wire Harness From Wire Harness Clamp

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 bolts and the air cleaner bracket.

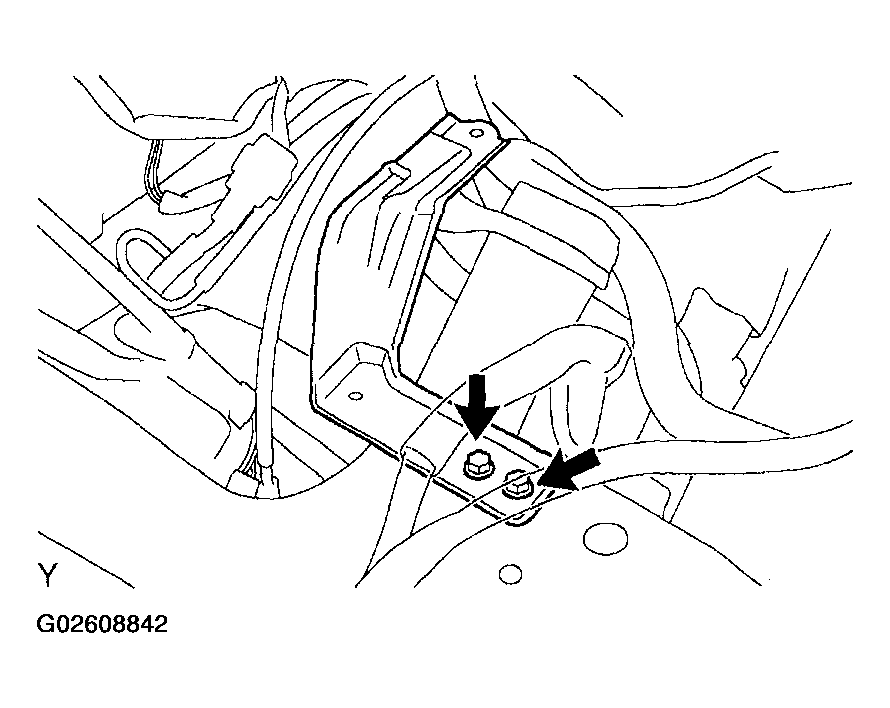

Fig 4: Removing 2 Bolts And Air Cleaner Bracket

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the bolt and the air cleaner inlet No. 1.

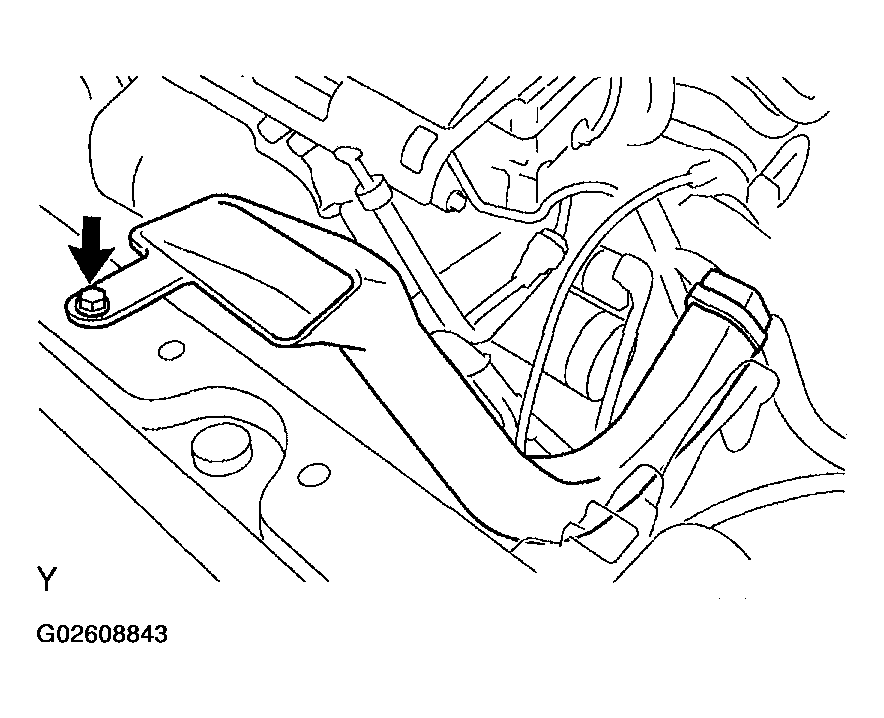

Fig 5: Removing Bolt And Air Cleaner Inlet No. 1

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the starter connector.
2. Open the terminal cap and remove the nut and the starter wire.

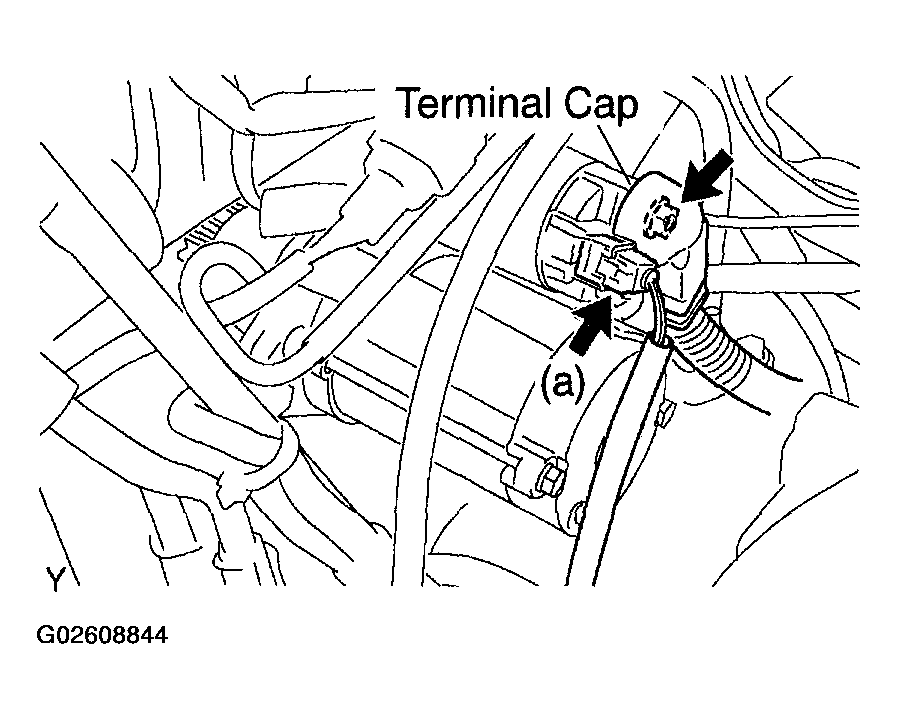

   Fig 6: Disconnecting Starter Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 bolts and the starter.

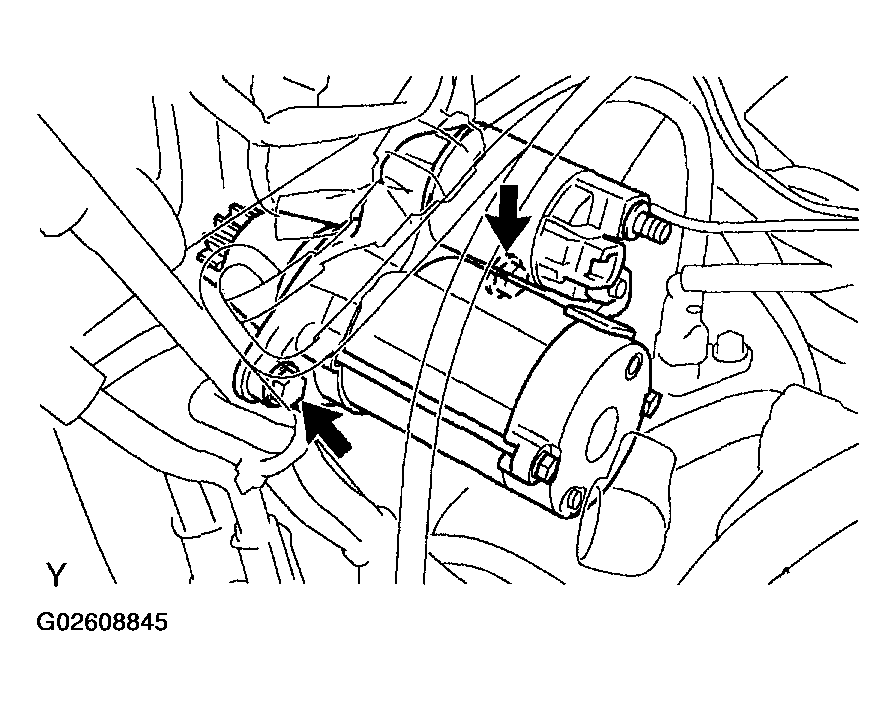

Fig 7: Removing 2 Bolts And Starter

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque:

37 N.m (380 kgf.cm, 26 ft.lbf) for bolt

9.8 N.m (100 kgf.cm, 7 ft.lbf) for nut

Torque: 5.0 N.m (51 kgf.cm, 44 in..lbf)

Torque: 7.8 N.m (80 kgf.cm, 69 in..lbf)

Torque: 5.0 N.m (51 kgf.cm, 44 in..lbf)

Torque: 5.0 N.m (51 kgf.cm, 44 in..lbf)

Torque:

5.5 N.m (56 kgf.cm, 49 in..lbf) for bolt and nut

3.5 N.m (36 kgf.cm, 31 in..lbf) for terminal
