Blower Unit: Removal

WARNING: This page is about a different car, the 2004 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT COOLING UNIT (See  REMOVAL  )
  2. REMOVE BLOWER UNIT
    1. Disconnect the connectors.
    2. Remove the bolt, 2 nuts and the blower unit.

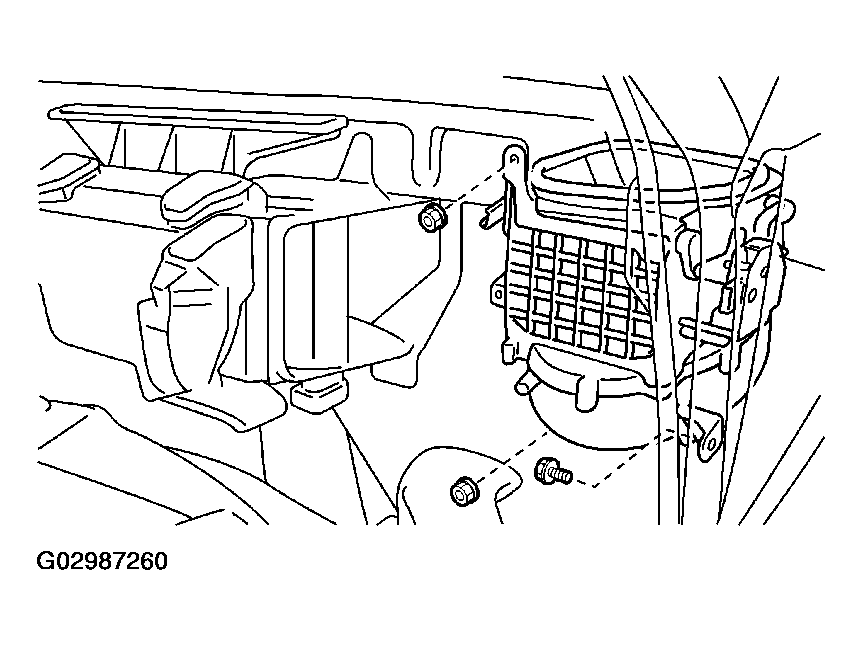

    Fig 1: Removing Blower Unit
    G02987260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
