Front Cooling Unit: Removal

WARNING: This page is about a different car, the 2004 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM
HINT:

At the time of installation, first evacuate air from refrigeration system.

Then, charge the system with the refrigerant and inspect for leaks of the refrigerant.

Specified amount: 1,050 +/- 50 g (37.03 +/- 1.76 oz.)
DISCONNECT LIQUID AND SUCTION TUBES
1. Using SST, remove the 2 piping clamps.
  SST 09870-00025 (Liquid tube) 09870-00015 (Suction tube)

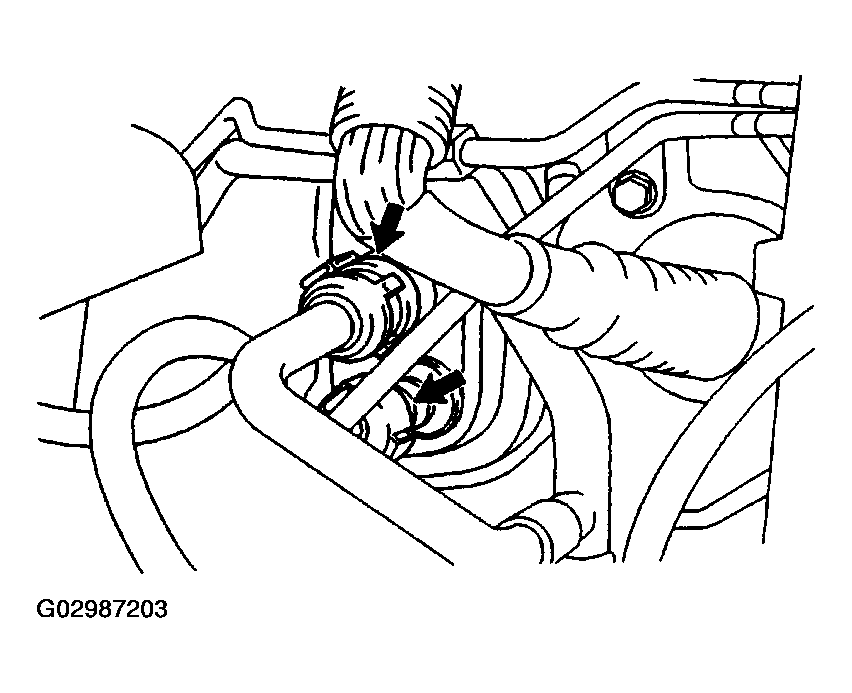

  Fig 1: Disconnecting Liquid & Suction Tubes
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Insert SST to piping clamp.
    HINT:

    Confirm the direction of the piping clamp claw and SST referring to Fig 2 on the caution label.

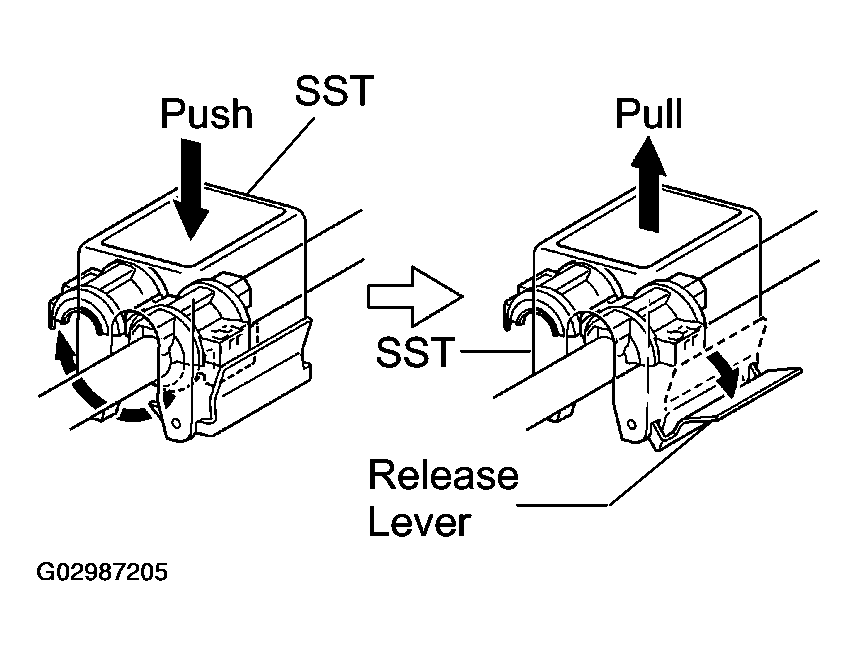

    Fig 2: Inserting SST To Piping Clamp
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Push down SST and release the clamp lock.
    NOTE: Be careful not to deform the tubes when pushing SST.
  3. Pull SST slightly and push the release lever, then remove the piping clamp with SST.
  4. Remove the piping clamp from SST.
  Fig 3: Removing Piping Clamp From SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the both tubes.
NOTE: Cap the open fittings immediately to keep moisture or dirt out of the system.

HINT:

At the time of installation:
- Lubricate 4 new O-rings with compressor oil and install them to the tubes.
- After connection, check the fitting for claw of the piping clamp.
REMOVE INSTRUMENT PANEL AND REINFORCEMENT (See REMOVAL )

Fig 4: Identifying Correct Way Of Installing O Ring
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ANTENNA RELAY
1. Disconnect the connector.
2. Remove the 2 screws and antenna relay.

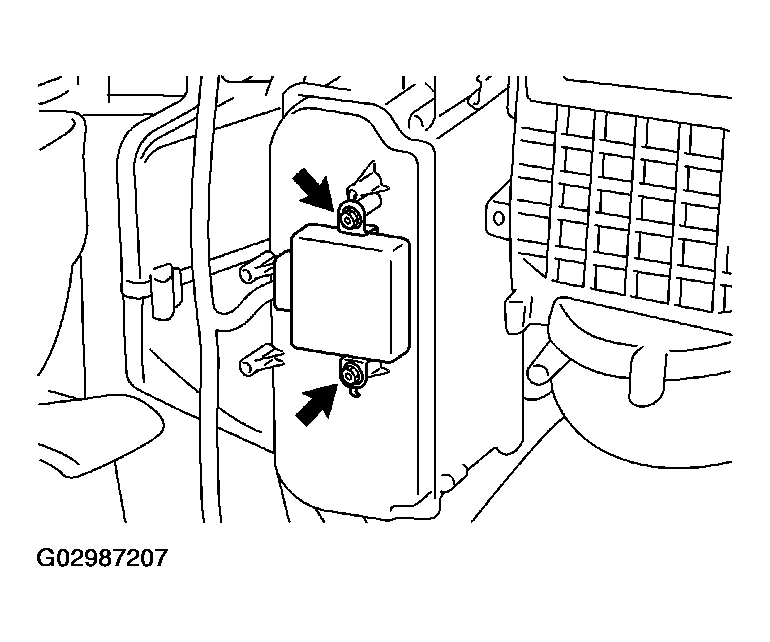

Fig 5: Removing Antenna Relay
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COOLING UNIT
1. Disconnect the connector.
2. Remove the 4 screws, 2 nuts and cooling unit.

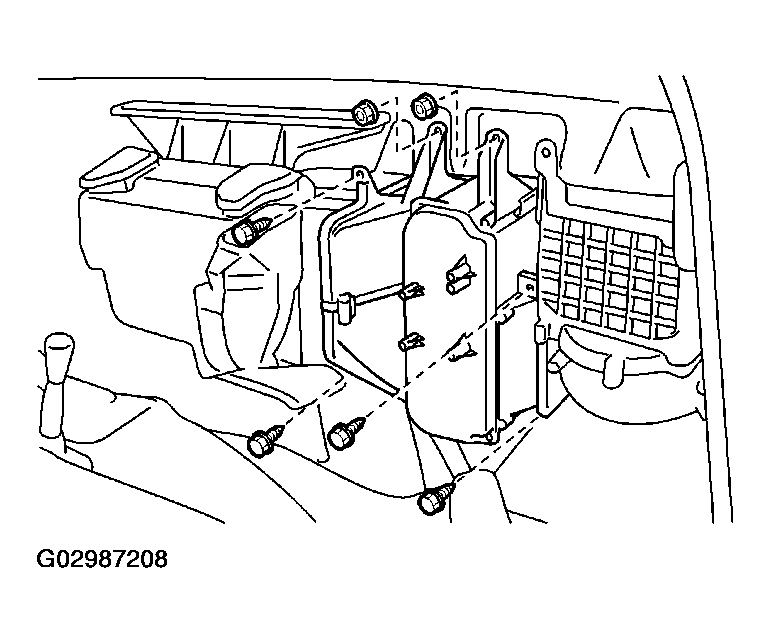

Fig 6: Removing Cooling Unit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
