Wiper Control Relay Circuit Test

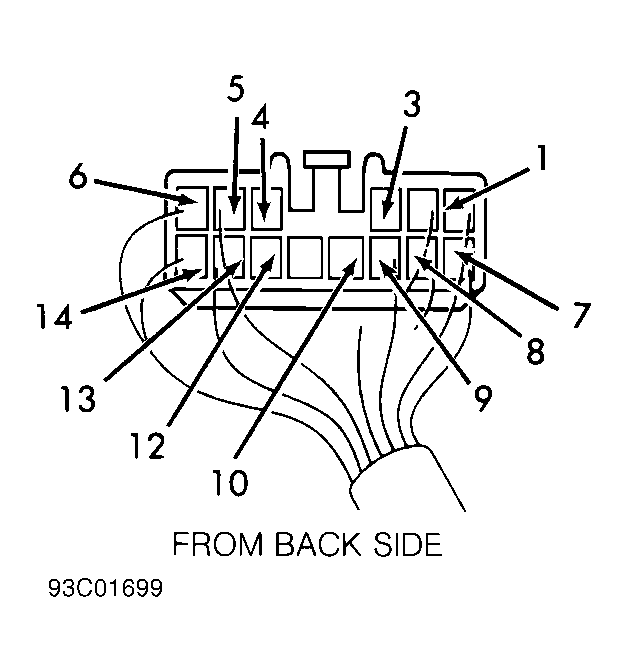

Leave wiper control relay connector attached. Turn ignition on. Check for continuity and voltage between chassis ground and specified terminals of wiper control relay connector. See WIPER CONTROL RELAY CIRCUITS TEST table. See Fig 1. If continuity or voltage is not as specified, repair faulty circuit or component.
WIPER CONTROL RELAY CIRCUITS TEST
| Terminal No. (Wire Color) | Specification | |||
|---|---|---|---|---|
| 1 (Blue/White) | ||||
| Washer ON | No Voltage | |||
| Washer OFF | Battery Voltage | |||
| 3 (Light Green/Red) | ||||
| Wiper INT Slow | No Voltage | |||
| Wiper OFF or INT Fast | Battery Voltage | |||
| 4 (White/Green) | ||||
| Wiper HIGH | No Voltage | |||
| Wiper OFF or INT Slow | Battery Voltage | |||
| 5 (Red) | ||||
| Wiper OFF Or HIGH | No Voltage | |||
| Wiper INT Or LOW | Battery Voltage | |||
| 6 (Yellow/Green) | ||||
| Wiper OFF Or INT Slow | No Voltage | |||
| Wiper HIGH | Battery Voltage | |||
| 7 (Blue) | ||||
| Ignition OFF Or ACC | No Voltage | |||
| Ignition ON | Battery Voltage | |||
| 8 (Red/Blue) | ||||
| Wiper OFF To INT Or LOW | (1) | |||
| Wiper INT Or LOW To HIGH | (1) | |||
| 9 (Red/Yellow) | ||||
| Wiper HIGH To INT Or LOW | (1) | |||
| Wiper INT Or LOW To OFF | (1) | |||
| 10 (Blue/Black) | ||||
| Wiper OFF | No Voltage | |||
| Wiper LOW | Battery Voltage | |||
| 12 (Red/Black) | ||||
| Wiper INT Or LOW | No Voltage | |||
| Wiper OFF Or HIGH | Battery Voltage | |||
| 13 (Green/Red) | No Voltage | |||
| 14 (White/Black) | Continuity | |||
|
||||
