Repair Procedures: Replacement

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Put on gloves to prevent hand injuries.

Remove the front seat.
(Refer to " Replacement ")
Remove the rear seat.
(Refer to " Replacement ")
Remove the front pillar trim.
(Refer to " Replacement " )
Remove the canter pillar upper trim.
(Refer to " Replacement " )
Remove the rear pillar trim.
(Refer to " Replacement " )
Remove the sunvisor and retainer.
(Refer to " Replacement " )
Remove the assist handle.
(Refer to " Replacement " )
Remove the overhead console lamp.
(Refer to " Removal " )
Remove the room lamp.
(Refer to " Removal " )

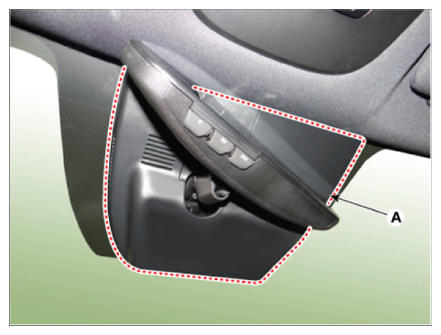

Using a screwdriver or remover, remove the inside rear view mirror cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

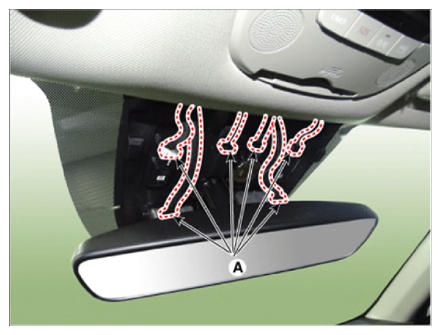

Disconnect the connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

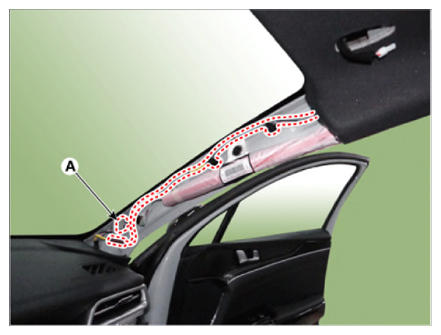

Disconnect the roof trim main connector (A) and the mounting clips in the front pillar.
[LH]

Courtesy of KIA MOTORS AMERICA, INC.

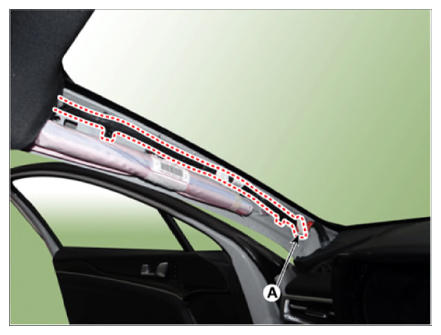

[RH]

Courtesy of KIA MOTORS AMERICA, INC.

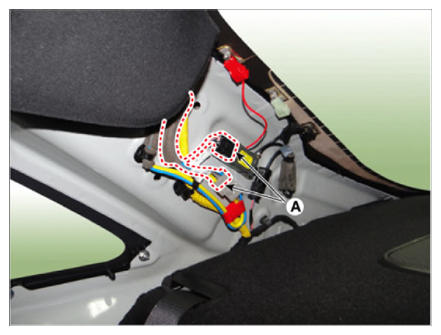

Disconnect the connectors (A) and the mounting clips in the rear pillar.

Courtesy of KIA MOTORS AMERICA, INC.

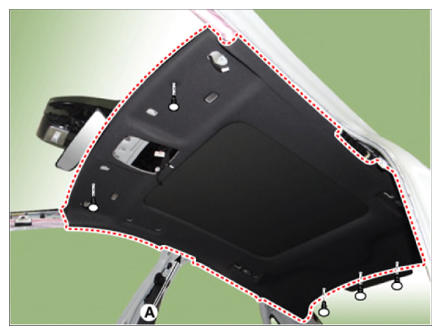

Remove the roof trim mounting clip and remove the roof trim assembly (A).
NOTE: Be careful not to wrinkle on the roof trim.

Courtesy of KIA MOTORS AMERICA, INC.

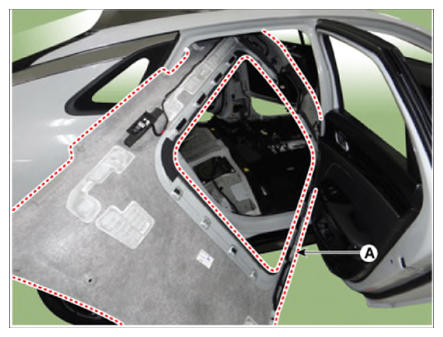

Remove the roof trim assembly (A) from the body panel and then carry it out of the vehicle through the rear door.

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure the connector is connected in properly.
- Replace any damaged clips.
