Repair Procedures: Replacement

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Put on gloves to prevent hand injuries.

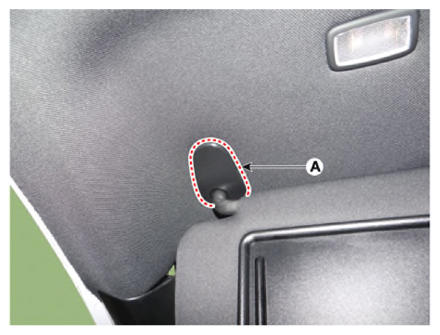

Remove the sunvisor mounting cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

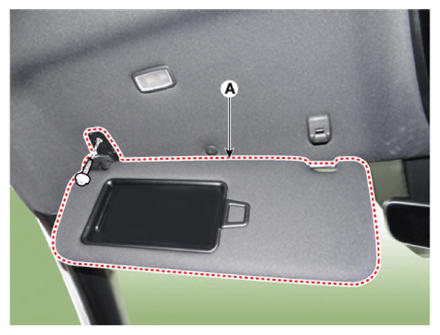

Loosen the mounting screw, and then remove the sunvisor (A).

Courtesy of KIA MOTORS AMERICA, INC.

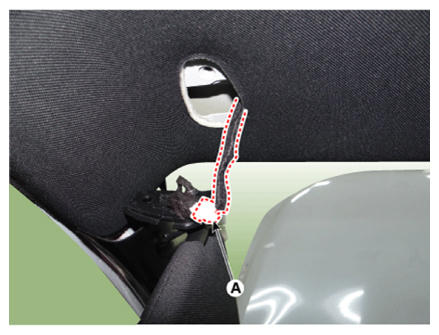

Disconnect the connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

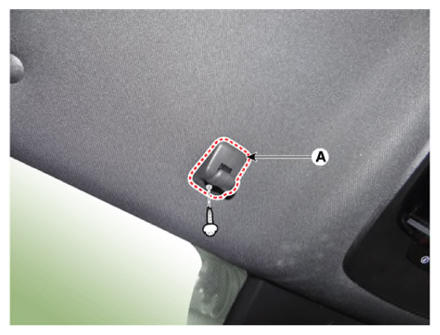

Loosen the mounting screw, and then remove the retainer (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
