Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the overhead console lamp.

    (Refer to " Removal  ")

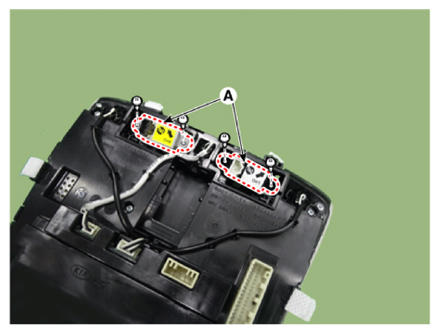

  2. Remove the handsfree mic (A) after loosening the screws.
    G13835898Courtesy of KIA MOTORS AMERICA, INC.
