Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.

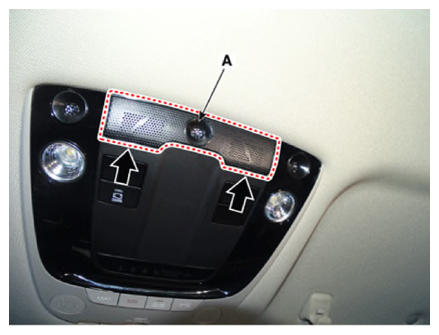

  2. Remove the overhead console lamp mic grill (A) by using a flat-tip screwdriver or remover.
    G13836126Courtesy of KIA MOTORS AMERICA, INC.

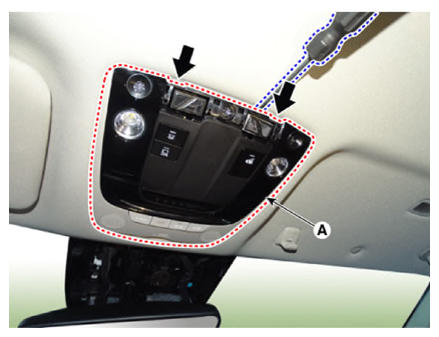

  3. Remove the overhead console lamp (A) by using a flat-tip screwdriver or remover.
    G13836127Courtesy of KIA MOTORS AMERICA, INC.

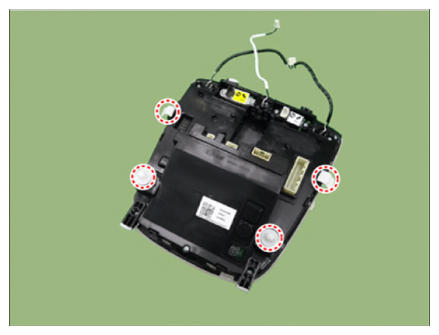

    Information

    Replace any damaged clips.

    G13836128Courtesy of KIA MOTORS AMERICA, INC.

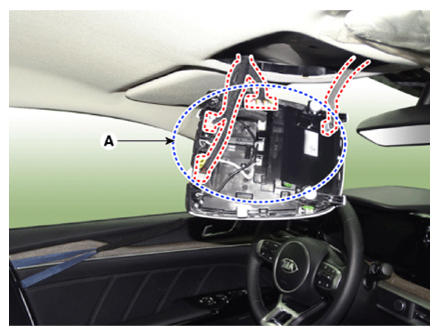

  4. Disconnect the all connectors (A) from the overhead console lamp.
    G13836129Courtesy of KIA MOTORS AMERICA, INC.
