Monitor DTC Status: Notes
WARNING: This page is about a different variant/trim than selected.
- Connect KDS to Data Link Connector (DLC).
- Shift lever position "P" & Ignition "ON"/"READY". ("READY" lamp ON in Instrument cluster)

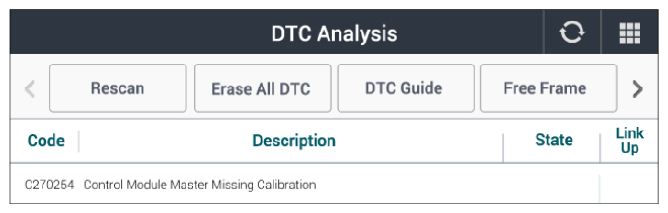

- Monitor "Diagnostic Trouble Codes (DTC)" with KDS.
- Is DTC status displayed as Present?
YES
- Go to "BSD RADAR CALIBRATION " procedure.
NO
- Fault is intermittent caused by poor contact in the BSD ECU's connector or was repaired and BSD ECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.
