Monitor KDS Data

WARNING: This page is about a different variant/trim than selected.

Ignition "OFF", connect KDS.
Shift lever P-range & Ignition ON/Hybrid Ready (Cluster Indicator "READY" On), select "Current Data" with KDS.

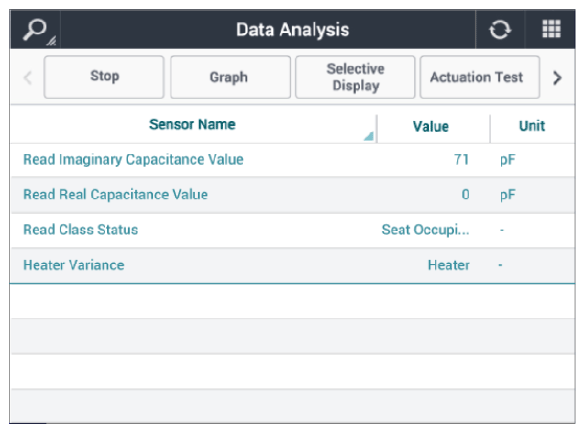

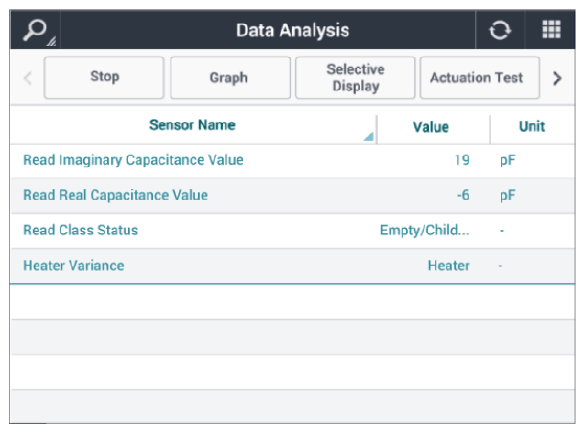

Monitor the "Read Class Status" parameter on the KDS.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
Has a problem been found?
YES
- Go to "BODY SENSOR RESET " procedure.
NO
- Fault is intermittent caused by poor contact in the part's and/or passenger side body sensor ECU connector or was repaired and passenger side body sensor ECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.
