Check For The DTC

  1. Connect KDS to Data Link Connector (DLC).
  2. Ignition "ON" (Power Button LED "Red")
  3. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.

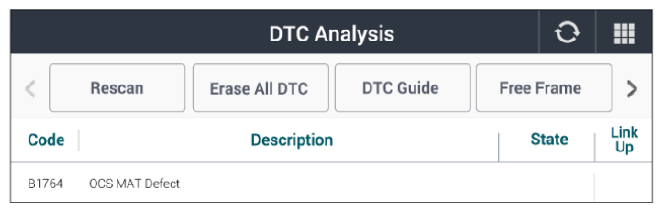

    G12818592Courtesy of KIA MOTORS AMERICA, INC.

    Figure) Diagnostic Trouble Code (DTC) is shown in the illustration above

  4. Is DTC status displayed as Present?

    YES

    NO
