Monitor KDS Data

  1. Ignition "OFF", connect KDS.
  2. Ignition "ON" (Power Button LED "Red"), select "Current Data" mode.
  3. Monitor the "Read Class Status" parameter on the KDS.

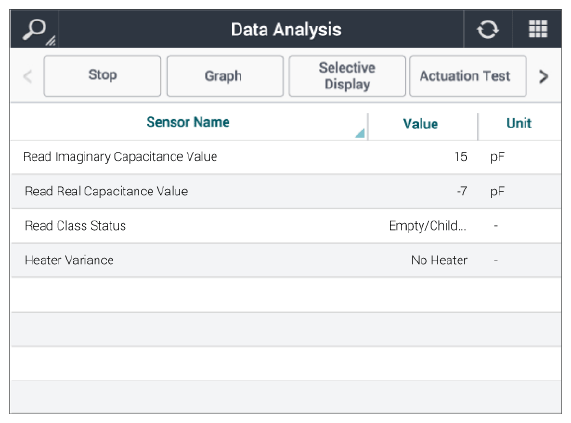

    G12818593Courtesy of KIA MOTORS AMERICA, INC.

    Figure) Passenger Unoccupied

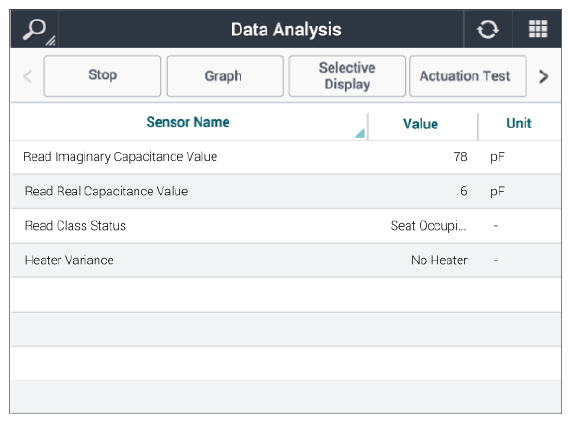

    G12818594Courtesy of KIA MOTORS AMERICA, INC.

    Figure) Passenger Occupied

  4. Has a problem been found?

    YES

    NO

    • Fault is intermittent caused by poor contact in the part's and/or SRSCM connector or was repaired and SRSCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
