Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel.

    (Refer to DISASSEMBLY Steering System - "Steering Wheel")

  3. Remove the steering column upper and lower shrouds.

    (Refer to Body - "STEERING COLUMN SHROUD PANEL ")

  4. Remove the clock spring.

    (Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")

  5. Disconnect the light switch connector (A) and the wiper switch connector (B).

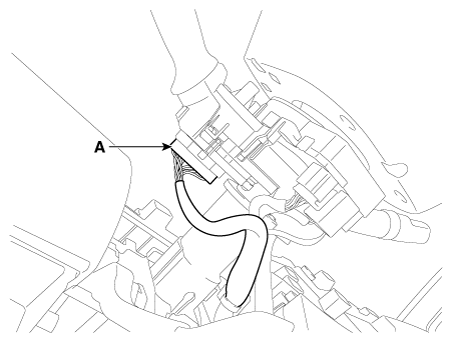

    Fig 1: Locating Light Switch Connector
    G12164558Courtesy of KIA MOTORS AMERICA, INC.

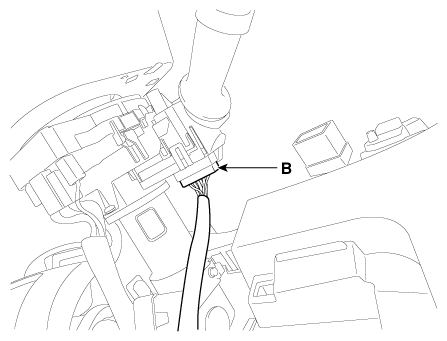

    Fig 2: Locating Wiper Switch Connector lock pin
    G12164559Courtesy of KIA MOTORS AMERICA, INC.
  6. [RHD] Remove the wiper switch (A) by pushing the lock pin (B).
    NOTE: When removing the wiper & washer switch only, release the lock of wiper switch without removing the steering wheel.
    Fig 3: Releasing Lock Pin For Wiper & Washer Switch
    G12164560Courtesy of KIA MOTORS AMERICA, INC.
  7. Loosen the screws (2 EA) from the multifunction switch assembly (A).

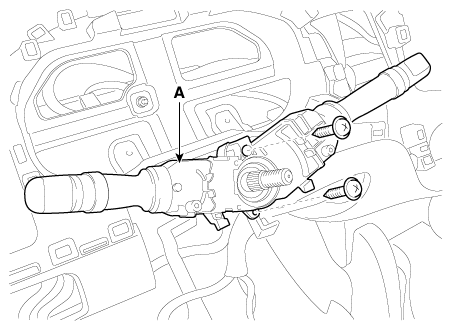

Fig 4: Locating Multifunction Switch Assembly With Mounting Screw
G12164561Courtesy of KIA MOTORS AMERICA, INC.
