Set up 'KDS' with 'KDS TPMS'.
Select "Vehicle S/W Management " function.
Select the "Sensor Status" mode of "Data Treatment" part.
position the KDS TPMS as near as possible to the tire.
(Reading may take 30~60 seconds depending on the sensor's characteristics.)
Monitor the parameter of "Temperature" on the screen. (Image below)
Specification: Below 230°F (110°C)

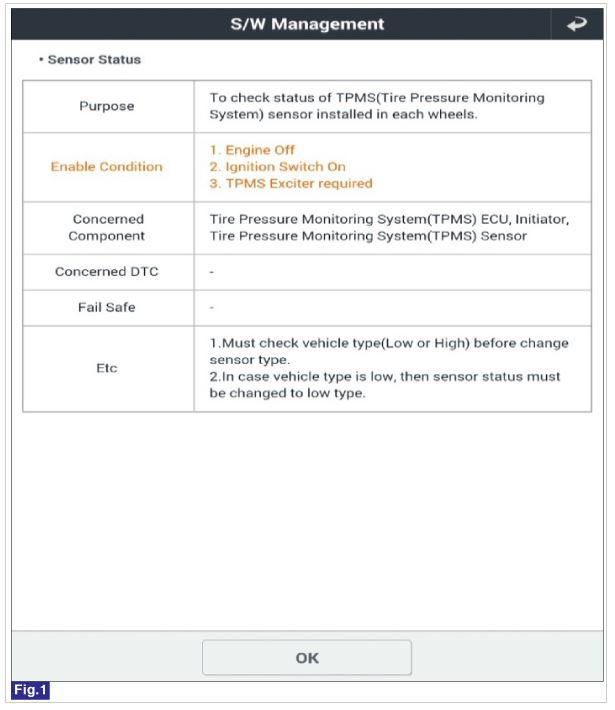

Fig 1: Scantool Display - Sensor Status 1
Courtesy of KIA MOTORS AMERICA, INC.

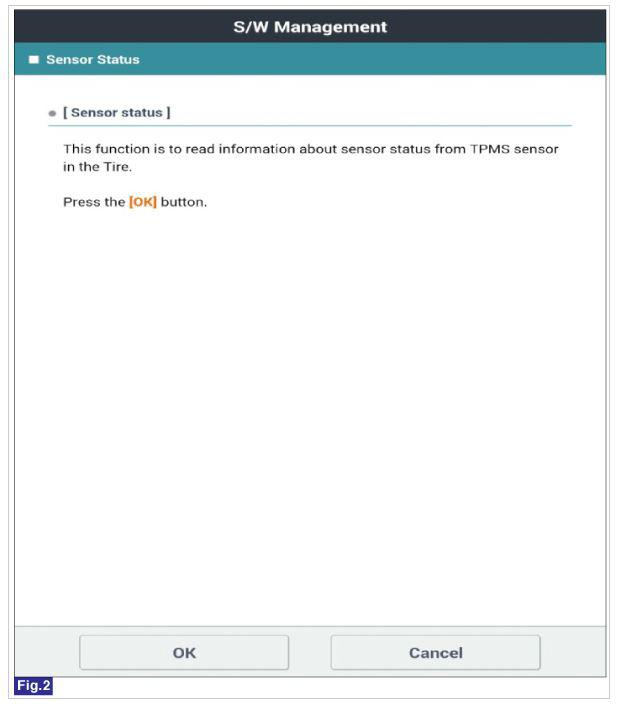

Fig 2: Scantool Display - Sensor Status 2
Courtesy of KIA MOTORS AMERICA, INC.

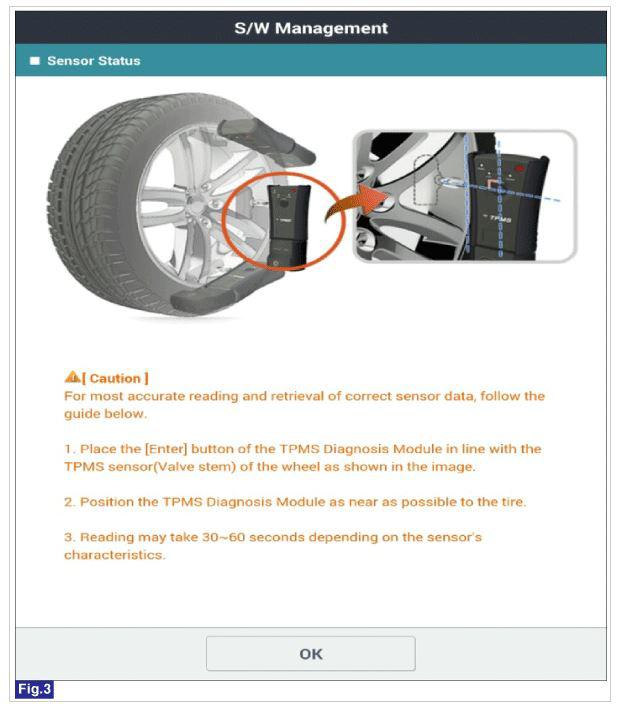

Fig 3: Scantool Display - Sensor Status 3
Courtesy of KIA MOTORS AMERICA, INC.

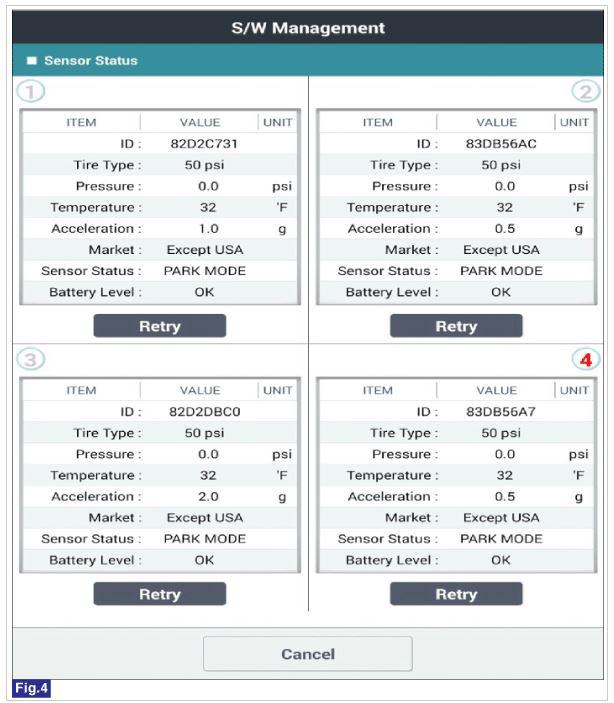

Fig 4: Scantool Display - Sensor Status 4
Courtesy of KIA MOTORS AMERICA, INC.
Is parameter within specifications?
YES
- Fault is intermittent. It has been repaired and TPMS Module memory is not cleared yet.
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Due to damaged tires, driving of lower pressure tires, and the excessive actuation of brake. these may cause a temporary fault code.
- First check the pressure of tires and the status of tires, second repair tires or replace with known-good tires as necessary, finally go to "VERIFICATION OF VEHICLE REPAIR " procedure.
- After replacing with a known-good TPMS Sensor, you must do the 'Register Sensor' at the "Vehicle S/W Management " mode by using KDS and KDS TPMS.
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
