Monitor DTC Status
WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
- Vehicle Parked & Ignition ON.
- Connect KDS and select "DTC Analysis" mode.

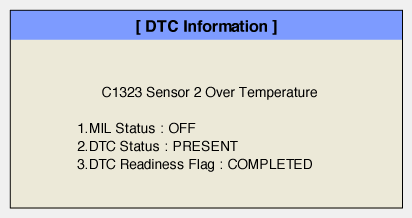

- Click "DTC Status" on the Diagnostic Trouble Codes (DTC) menu bar for DTC's information.
- Confirm that "DTC Readiness Flag" indicates "COMPLETED". If not, drive the vehicle within conditions noted in the freeze frame data or enable conditions.
- Read "DTC Status" parameter.
NOTE:
- History (Not Present) fault: DTC occurred but has been cleared.
- Present fault: DTC is occurring at present time.
- Is parameter displayed "Present fault"?
YES
- Go to Next procedure.
NO
- This fault was repaired and TPMS Module memory was not cleared. Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
