Monitor GDS Data

  1. Connect GDS to Data Link Connector (DLC).
  2. Engine "ON".
  3. Monitor "Valve Relay" and "Battery Positive Voltage" parameter in the "Current Data  " with GDS.

    Specification:

    Valve Relay: ON

    Battery Positive Voltage: B+

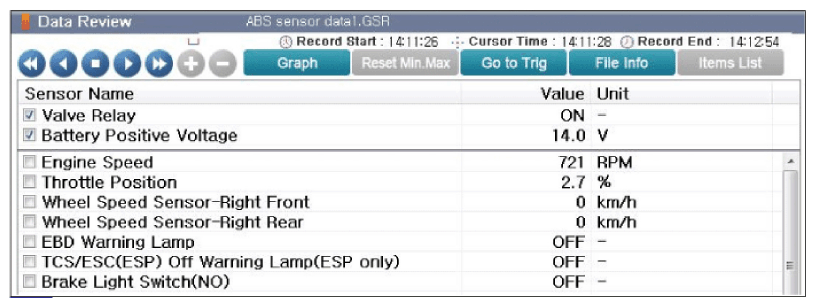

    Fig 1: Normal Valve Relay Status - Screen Display
    G11405326Courtesy of KIA MOTORS AMERICA, INC.
  4. Is parameter displayed within specification?

    YES

    • Fault might be intermittent caused by poor connection and/or HECU's connector or was repaired and HECU memory not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deteriorate or damage. Repair or replace as necessary and then go to "Verification Of Vehicle Repair " procedure.
