Monitor GDS Data

WARNING: This page is about a different car, the 2017 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ignition "OFF", connect GDS.
  2. Ignition "ON" (Power Button LED "Red"), select "Current Data" mode.
  3. Monitor the "Read Class Status" parameter on the GDS.
    Fig 1: Scantool Display - Read Class Status (Passenger Unoccupied)
    G11947646Courtesy of KIA MOTORS AMERICA, INC.

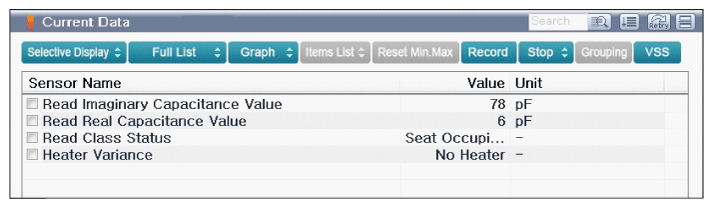

    Fig 2: Scantool Display - Read Class Status (Passenger Occupied)
    G11947647Courtesy of KIA MOTORS AMERICA, INC.
  4. Has a problem been found?

    YES

    NO

    • Fault is intermittent caused by poor contact in the part's and/or SRSCM connector or was repaired and SRSCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
