Body Sensor Reset

WARNING: This page is about a different car, the 2017 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

Ignition "OFF", connect GDS.
Ignition "ON" (Power Button LED "Red"), select Passenger Occupant Detecting System and select "Body Sensor Reset" mode.
And then press "ENTER"

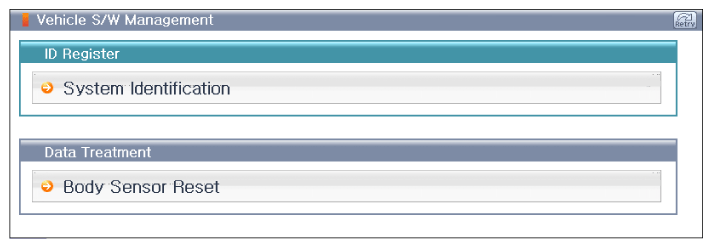

Fig 1: Scantool Display - Body Sensor Reset 1
Courtesy of KIA MOTORS AMERICA, INC.

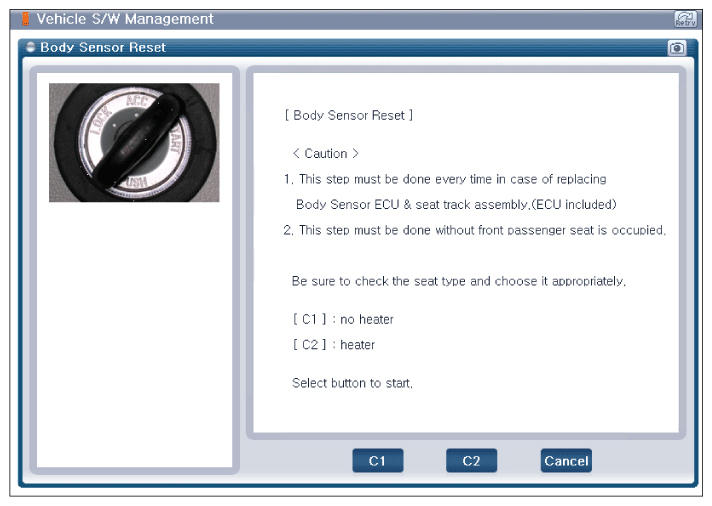

Fig 2: Scantool Display - Body Sensor Reset 2
Courtesy of KIA MOTORS AMERICA, INC.

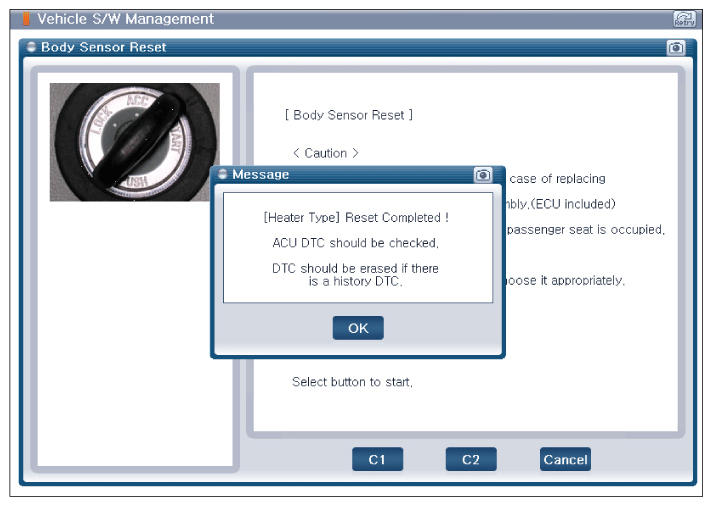

Fig 3: Scantool Display - Body Sensor 3
Courtesy of KIA MOTORS AMERICA, INC.

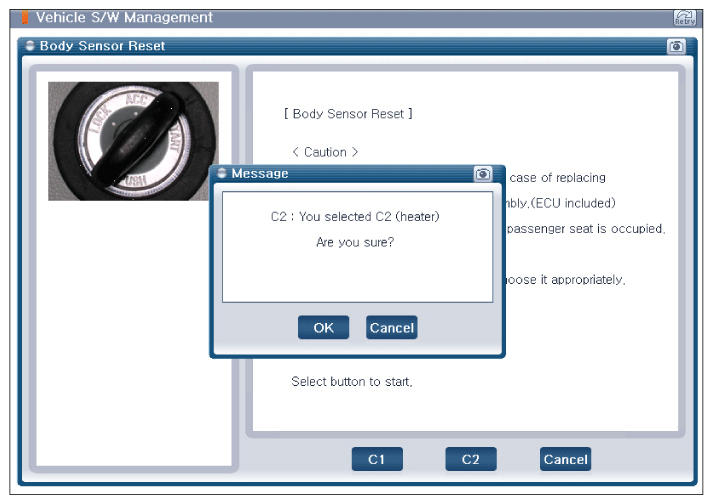

Fig 4: Scantool Display - Body Sensor 4
Courtesy of KIA MOTORS AMERICA, INC.

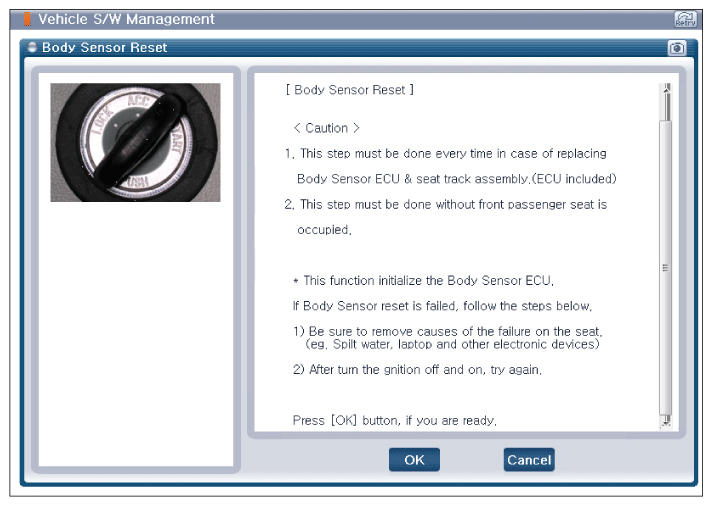

Fig 5: Scantool Display - Body Sensor 5
Courtesy of KIA MOTORS AMERICA, INC.
Turn Ignition "OFF" and then "ON"
Monitor "Diagnostic Trouble Codes (DTC)" with GDS.
Clear all DTCs in the system with GDS.
Re-check DTC in the system with GDS.
Is DTC stored in the system?
YES
- Go to "WIRING INSPECTION " procedure.
NO
- Fault is intermittent caused by poor contact in the part's and/or SRSCM connector or was repaired and SRSCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
