Repair procedures: Removal

Disconnect the negative (-) battery terminal.
Remove the driver airbag module.
(Refer to REMOVAL .
Remove the steering wheel.
(Refer to the "STEERING COLUMN AND SHAFT ")
Remove the steering wheel cover (A) after loosening 6 screws.

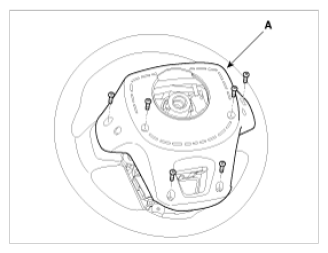

Fig 1: Identifying Steering Wheel Cover With Screws
Courtesy of KIA MOTORS AMERICA, INC.
Remove the remote control switch (B) after loosening 2 screws and disconnecting the connector (A).

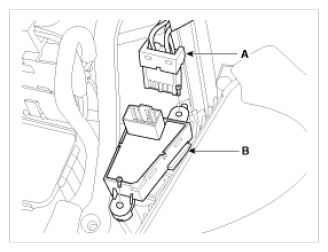

Fig 2: Identifying Remote Control Switch And Connector
Courtesy of KIA MOTORS AMERICA, INC.

[RH]

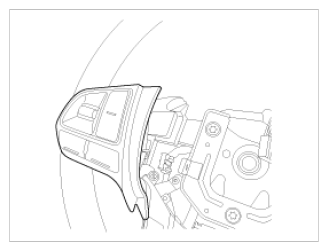

Fig 3: Identifying RH Remote Control Switch
Courtesy of KIA MOTORS AMERICA, INC.

[LH]

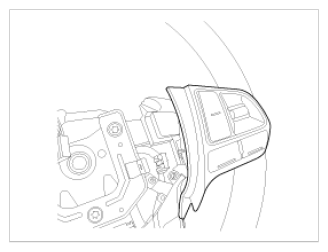

Fig 4: Identifying LH Remote Control Switch
Courtesy of KIA MOTORS AMERICA, INC.
