Repair Procedures: Removal

  1. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  2. Remove the driver airbag module mounting bolts (A).

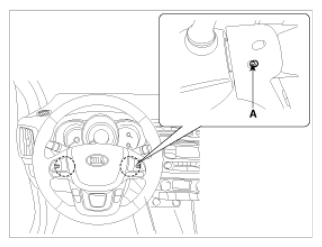

    Fig 1: Identifying Driver Airbag Module Mounting Bolts
    G08322152Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the wiring fixing clip (C) and disconnect the horn connector (A).

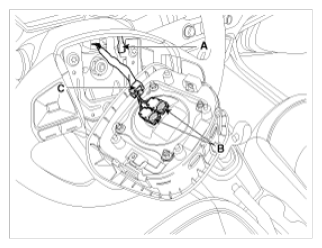

    Fig 2: Identifying Horn Connector, Driver Airbag Module Connector And Wiring Fixing Clip
    G08322153Courtesy of KIA MOTORS AMERICA, INC.
  4. Release the connector locking pin, then disconnect the driver airbag module connector (B).
    CAUTION: The removed airbag module should be stored in a clean, dry place with the pad cover facing up.
  5. Remove the steering wheel and steering wheel column shroud. (Refer to the "STEERING COLUMN AND SHAFT ")

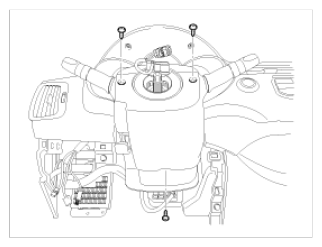

    Fig 3: Identifying Steering Wheel Column Shroud
    G08322154Courtesy of KIA MOTORS AMERICA, INC.
  6. Disconnect the clock spring and horn connector (A), then remove the clock spring.

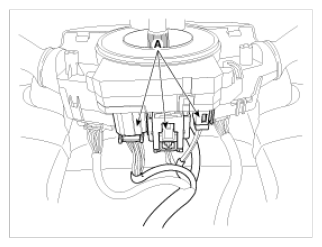

    Fig 4: Identifying Clock Spring And Horn Connector
    G08322155Courtesy of KIA MOTORS AMERICA, INC.
