Component Inspection

WARNING: This page is about a different variant/trim than selected.
  1. Remove the clutch switch.

    (Refer to "REMOVAL ")

  2. Push the clutch switch in the direction of the arrow to make sure that continuity is cut off.

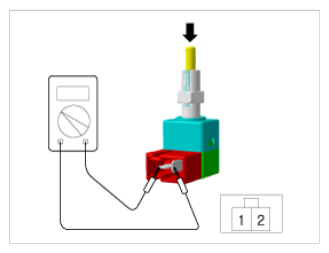

    Fig 1: Checking Clutch Switch Continuity
    G09743139Courtesy of KIA MOTORS AMERICA, INC.

    Information

    Condition Clutch Pedal pressed Clutch Pedal Released
    Switch Operation ON (below 1.0Ω) OFF (Infinite Ω)
