Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the smart junction box

    (Refer to "RELAY BOX (PASSENGER COMPARTMENT) ")

  3. Disconnect clutch switch connector (A).

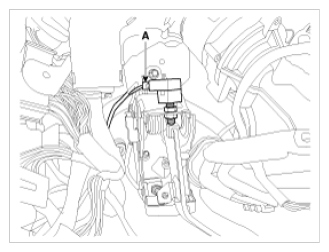

    Fig 1: Clutch Switch Connector
    G09743140Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the clutch switch (B) by loosening a nut (A).
    Fig 2: Clutch Switch And Mounting Nut
    G09743141Courtesy of KIA MOTORS AMERICA, INC.
