Lower Crash Pad Panel Replacement

Remove the glove box. See GLOVE BOX REPLACEMENT .
Remove the side air vent. See AUDIO ASSEMBLY REPLACEMENT .
Remove the DVD cover (A).

Fig 1: Identifying DVD Cover
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the mounting screws, remove the DVD (A).

Fig 2: Identifying DVD And Screw
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connector (A).

Fig 3: Identifying Connector
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the upper glove box mounting screws, then remove the upper glove box (A).

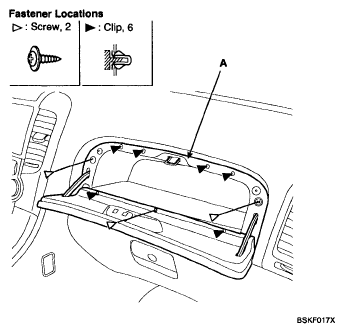

Fig 4: Identifying Upper Glove Box And Fastener Locations
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the panel mounting bolts and screws.
After disconnecting the connector, remove the panel (A).

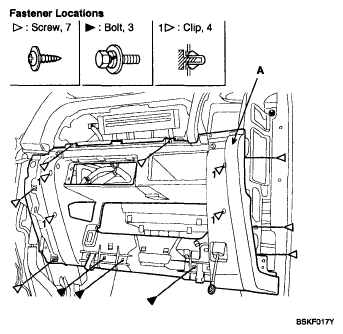

Fig 5: Identifying Panel And Fastener Locations
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
