Glove Box Replacement

Disconnect the damper (B) from the glove box (A).

Fig 1: Identifying Damper And Glove Box
Courtesy of KIA MOTORS AMERICA, INC.

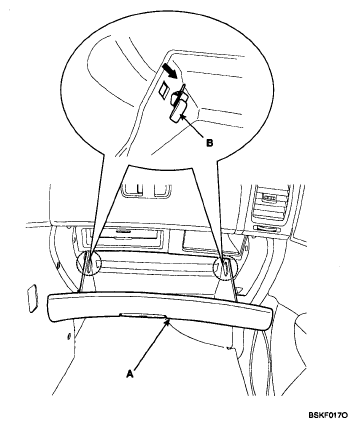

Remove the glove box (A) from the lift (B).

Fig 2: Identifying Glove Box And Lift
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the pine (A), then remove the glove box (B).

Fig 3: Identifying Pine And Glove Box
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
