Crash Pad Replacement
NOTE:
- When prying with a flat-tipped screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.
- Remove the following items.
- Front seat. See FRONT SEAT .
- Cluster fascia panel, cluster. See CLUSTER REPLACEMENT .
- Audio assembly. See AUDIO ASSEMBLY REPLACEMENT .
- Glove box. See GLOVE BOX REPLACEMENT .
- Side cover, center under cover. See COVER REPLACEMENT .
- Front pillar trim. See FRONT PILLAR TRIM .

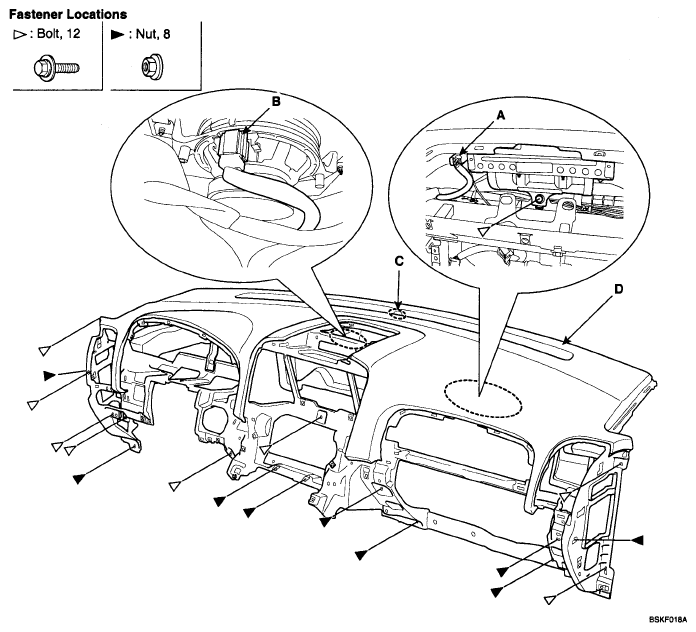

- Remove the photo sensor (C), speaker connector (B).
- Disconnect the passenger's air bag connector (A). Loosen the bolt and nut, then remove the crash pad (D).
- Installation is the reverse of removal.NOTE:
- Make sure the crash pad fits onto the guide pins correctly.
- Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
- Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
- Enter the anti-theft code for the radio, then enter.
