Cowl Crossbar Assembly Replacement
NOTE:
- When prying with a flat-tipped screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.
- Remove the crash pad. See CRASH PAD REPLACEMENT .
- Remove the connectors.

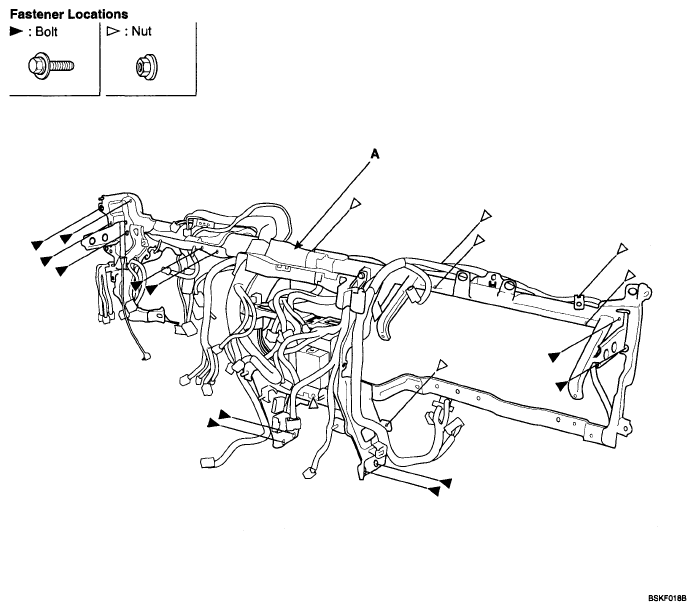

- Loosen the bolts and nuts, then remove cowl crossbar assembly (A).
- Installation is the reverse of removal.NOTE:
- Make sure the crash pad fits onto the guide pins correctly.
- Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
- Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
- Enter the anti-theft code for the radio, then enter the customer's radio station presets.
