Package Tray Trim Replacement
NOTE:
- Put on gloves to protect your hands.
- When removing trim components that require prying, use a suitable trim tool, not a screwdriver. Gently pry on the component to avoid damage.
- Take care not to bend or scratch the trim and panels.
- Remove the following items.
- Rear seat assembly. See SEAT ASSEMBLY REPLACEMENT .
- Rear seat belt lower anchor. See SEAT BELT .
- Remove the REAR PILLAR TRIM .
- Loosening the package tray trim mounting screws.

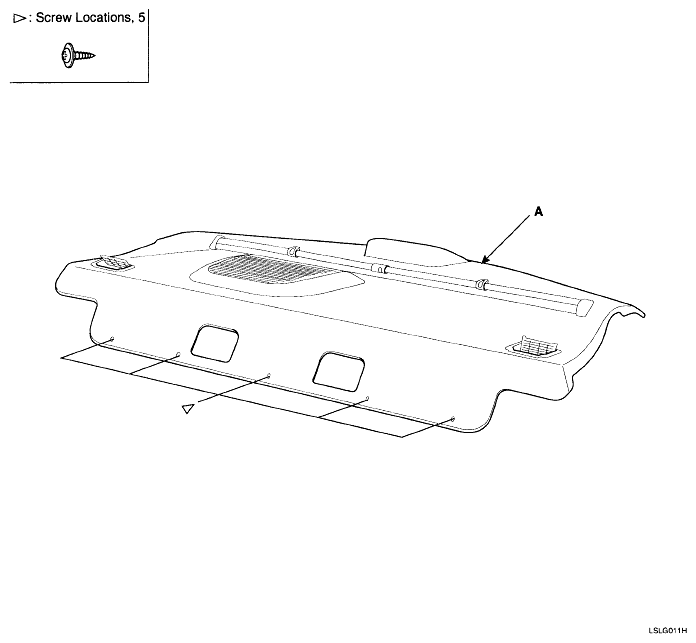

- Remove the package tray trim (A).
- Installation is the reverse of removal.NOTE:
- Replace any damaged clips.
