Rear Pillar Trim Replacement

NOTE:

Put on gloves to protect your hands.
When removing trim components that require prying, use a suitable trim tool, not a screwdriver. Gently pry on the component to avoid damage.
Take care not to bend or scratch the trim and panels.

Remove the rear pillar lower trim (A).

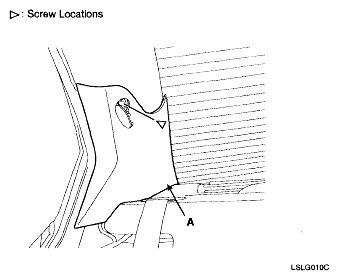

Fig 1: Identifying Rear Pillar Lower Trim
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
NOTE:
- Replace any damaged clips.
