Navigation Antenna: Removal

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION

    (See INSTRUMENT PANEL SAFETY PAD )

  2. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait for 90 seconds after disconnecting the cable to prevent airbag deployment (See AIRBAG SYSTEM ).
  4. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission) (See  REMOVAL  )
  5. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission) (See  REMOVAL  )
  6. REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission) (See  REMOVAL  )
  7. REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission) (See  REMOVAL  )
  8. REMOVE CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission) (See  REMOVAL  )
  9. REMOVE REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) (See  REMOVAL  )
  10. REMOVE FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) (See  REMOVAL  )
  11. REMOVE FRONT ASH RECEPTACLE SUB-ASSEMBLY (See  REMOVAL  )
  12. REMOVE CONSOLE BOX REGISTER ASSEMBLY (See  REMOVAL  )
  13. REMOVE CONSOLE BOX (See  REMOVAL  )
  14. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY (See  REMOVAL  )
  15. REMOVE CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL (See  REMOVAL  )
  16. REMOVE MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (See  REMOVAL  )
  17. REMOVE LOWER NO. 2 STEERING WHEEL COVER (See  REMOVAL  )
  18. REMOVE LOWER NO. 3 STEERING WHEEL COVER (See  REMOVAL  )
  19. REMOVE STEERING PAD (See  REMOVAL  )
  20. REMOVE STEERING WHEEL ASSEMBLY (See  REMOVAL  )
  21. REMOVE STEERING COLUMN COVER (for Power Tilt and Power Telescopic) (See  REMOVAL  )
  22. REMOVE STEERING COLUMN COVER (for Manual Tilt and Telescopic) (See  REMOVAL  )
  23. REMOVE TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY (See  REMOVAL  )
  24. REMOVE FRONT DOOR SCUFF PLATE LH (See  REMOVAL  )
  25. REMOVE FRONT DOOR OPENING TRIM COVER LH (See  REMOVAL  )
  26. REMOVE SIDE INSTRUMENT PANEL LH (See  REMOVAL  )
  27. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See  REMOVAL  )
  28. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (See  REMOVAL  )
  29. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY (See  REMOVAL  )
  30. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (See  REMOVAL  )
  31. REMOVE COMBINATION METER ASSEMBLY (See  REMOVAL  )
  32. REMOVE FRONT DOOR SCUFF PLATE RH (See  REMOVAL  )
  33. REMOVE FRONT DOOR OPENING TRIM COVER RH (See  REMOVAL  )
  34. REMOVE SIDE INSTRUMENT PANEL RH (See  REMOVAL  )
  35. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See  REMOVAL  )
  36. REMOVE FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY (See  REMOVAL  )
  37. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY (See  REMOVAL  )
  38. REMOVE FRONT PILLAR GARNISH LH (See  REMOVAL  )
  39. REMOVE FRONT PILLAR GARNISH RH (See  REMOVAL  )
  40. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY (See  REMOVAL  )
  41. REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY (See  REMOVAL  )
  42. REMOVE NO. 3 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY (See  REMOVAL  )
  43. REMOVE FRONT STEREO COMPONENT SPEAKER ASSEMBLY (See  REMOVAL  )
  44. REMOVE NO. 2 CONSOLE BOX DUCT (for Automatic Transmission) (See  REMOVAL  )
  45. REMOVE NO. 1 CONSOLE BOX DUCT (for Automatic Transmission) (See  REMOVAL  )
  46. REMOVE NO. 2 CONSOLE BOX DUCT (for Manual Transmission) (See  REMOVAL  )
  47. DISCONNECT PASSENGER AIRBAG CONNECTOR
  48. REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY (See  REMOVAL  )
  49. REMOVE NO. 3 HEATER TO REGISTER DUCT (See  DISASSEMBLY  )
  50. REMOVE SIDE NO. 2 DEFROSTER NOZZLE DUCT (See  DISASSEMBLY  )
  51. REMOVE DEFROSTER NOZZLE ASSEMBLY (See  DISASSEMBLY  )
  52. REMOVE NAVIGATION ANTENNA ASSEMBLY
    1. Disengage the 2 clamps.
    2. Remove the 2 screws and navigation antenna.

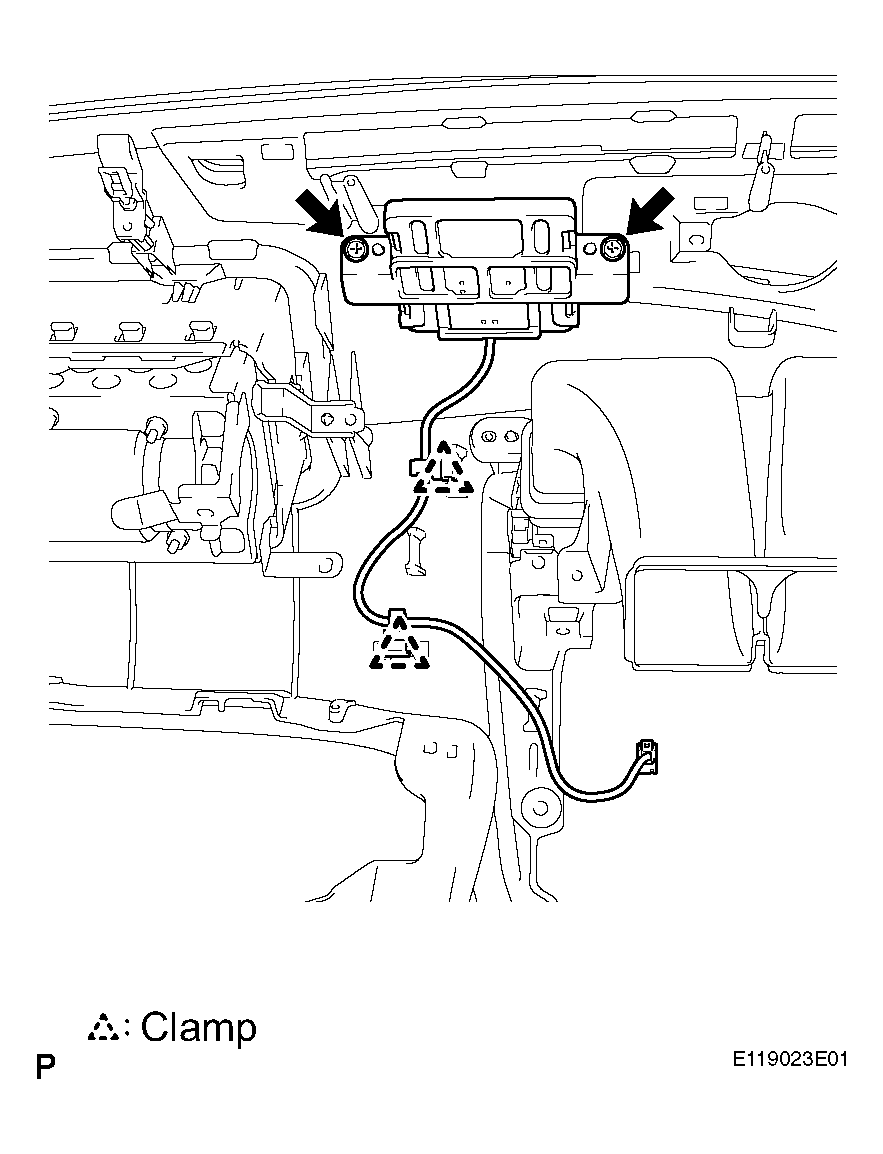

Fig 1: Identifying Navigation Antenna Screws
G04050550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
