Radio Receiver: Removal

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)(See  REMOVAL  )
  2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission) (See  REMOVAL  )
  3. REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission) (See  REMOVAL  )
  4. REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission) (See  REMOVAL  )
  5. REMOVE CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission) (See  REMOVAL  )
  6. REMOVE REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) (See  REMOVAL  )
  7. REMOVE FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) (See  REMOVAL  )
  8. REMOVE FRONT ASH RECEPTACLE SUB-ASSEMBLY (See  REMOVAL  )
  9. REMOVE CONSOLE BOX REGISTER ASSEMBLY (See  REMOVAL  )
  10. REMOVE CONSOLE BOX (See  REMOVAL  )
  11. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY (See  REMOVAL  )
  12. REMOVE CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL (See  REMOVAL  )

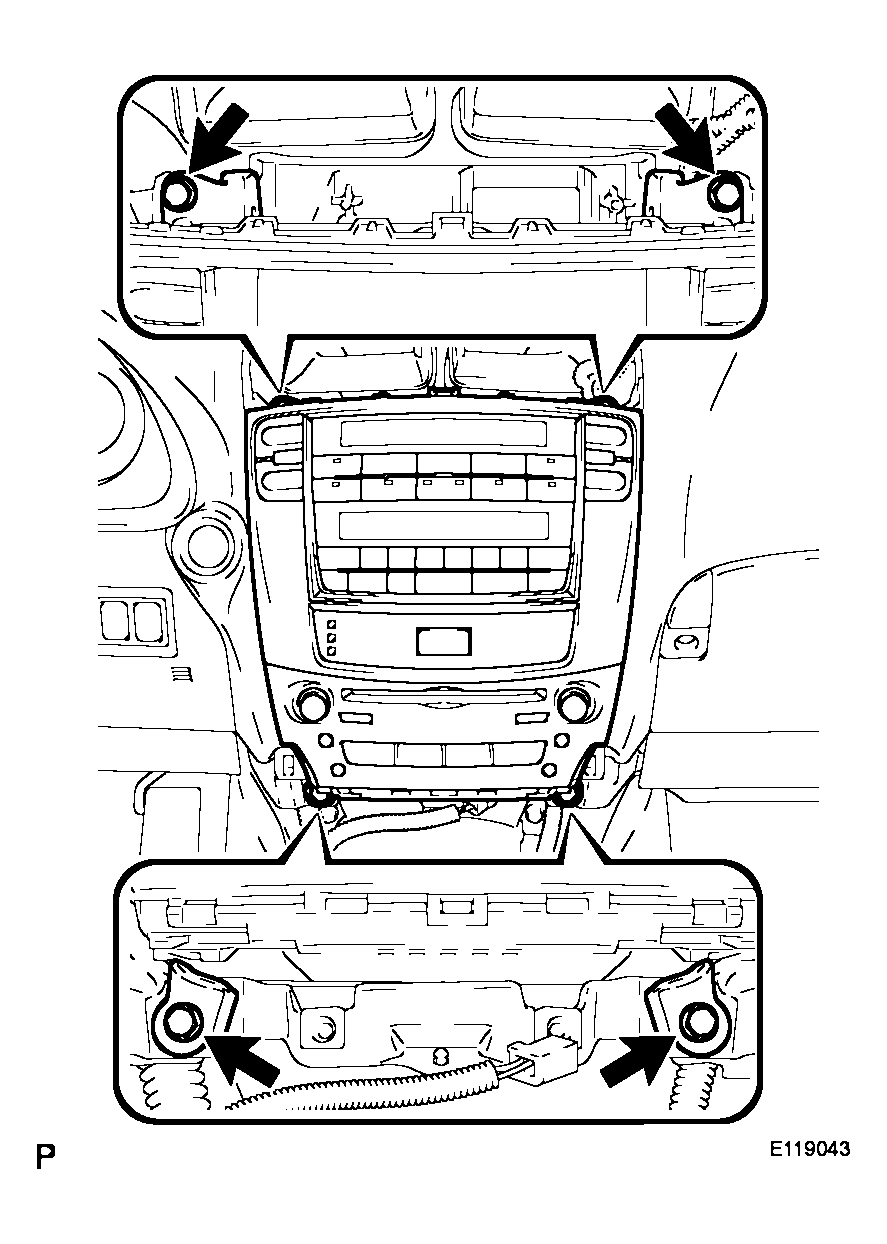

  13. REMOVE INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System)
    1. Remove the 4 bolts.
    2. Pull the integration control panel w/ radio receiver assembly toward the rear of the vehicle.
    3. Disconnect each connector and remove the panel.
    Fig 1: Identifying Bolts
    G04050183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE NO. 1 RADIO BRACKET (w/o Navigation System)
    1. Remove the 6 bolts and radio No. 1 bracket.

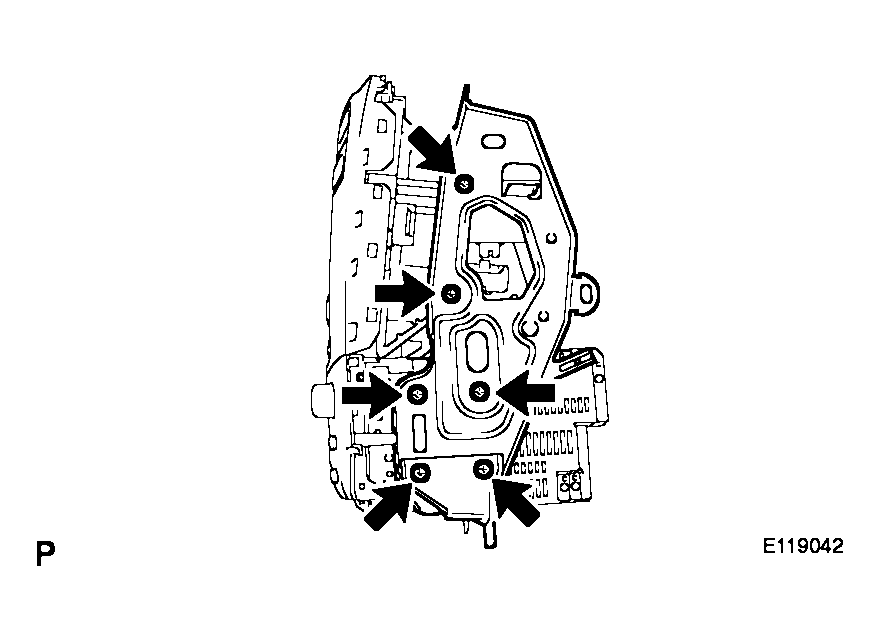

    Fig 2: Identifying Bolts And Radio No. 1 Bracket
    G04050184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE NO. 2 RADIO BRACKET (w/o Navigation System)

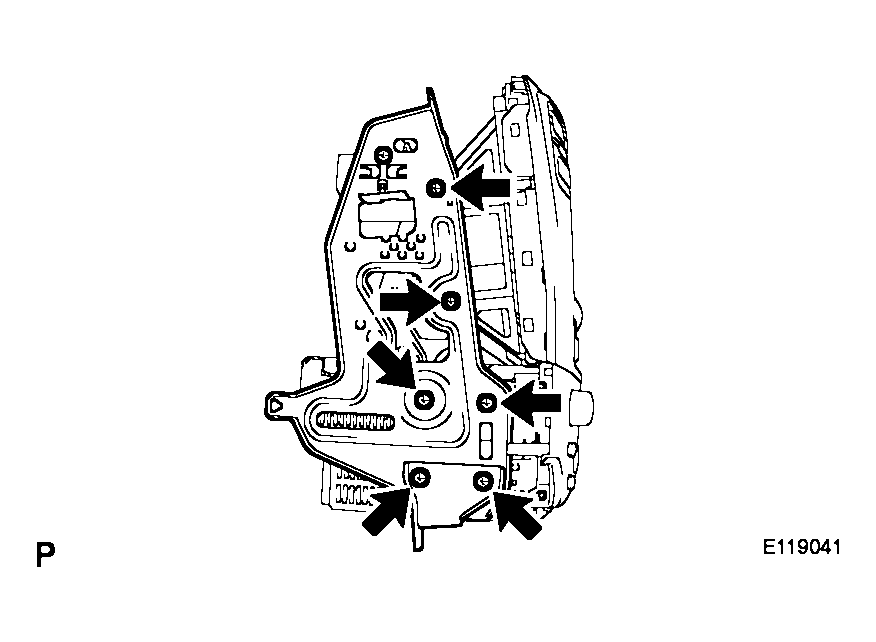

    1. Remove the 6 bolts and radio No. 2 bracket.
    Fig 3: Identifying Bolts And Radio No. 2 Bracket
    G04050185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE RADIO RECEIVER ASSEMBLY (w/o Navigation System)
    1. Slide the integration control panel in the direction shown by the arrow to remove the radio receiver assembly.
    Fig 4: Identifying Radio Receiver Assembly (W/O Navigation System)
    G04050186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

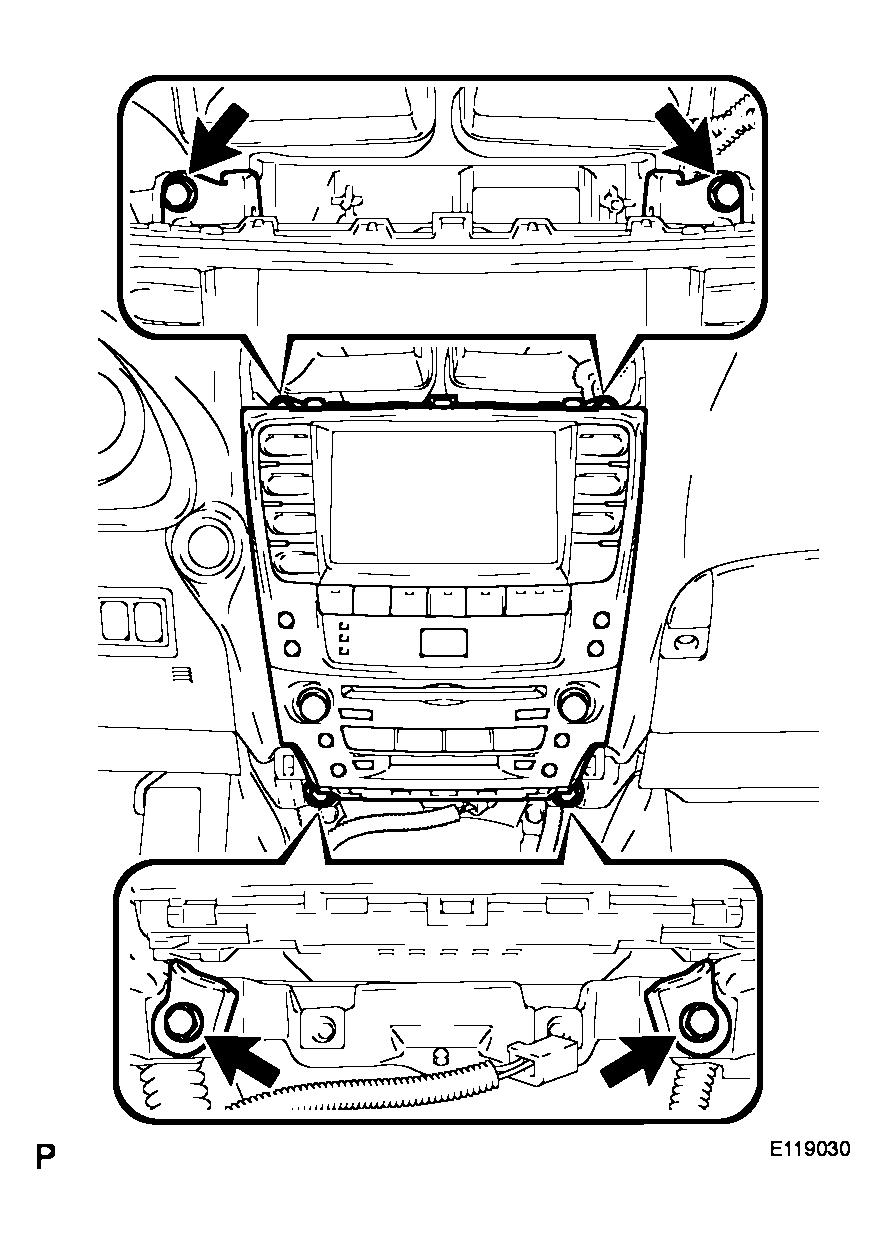

  17. REMOVE MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System)
    1. Remove the 4 bolts.
    2. Pull the multi-display w/ radio receiver assembly toward the rear of the vehicle.
    3. Disconnect each connector and remove the multi-display.
    Fig 5: Identifying Bolts
    G04050187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE NO. 1 RADIO BRACKET (w/ Navigation System)

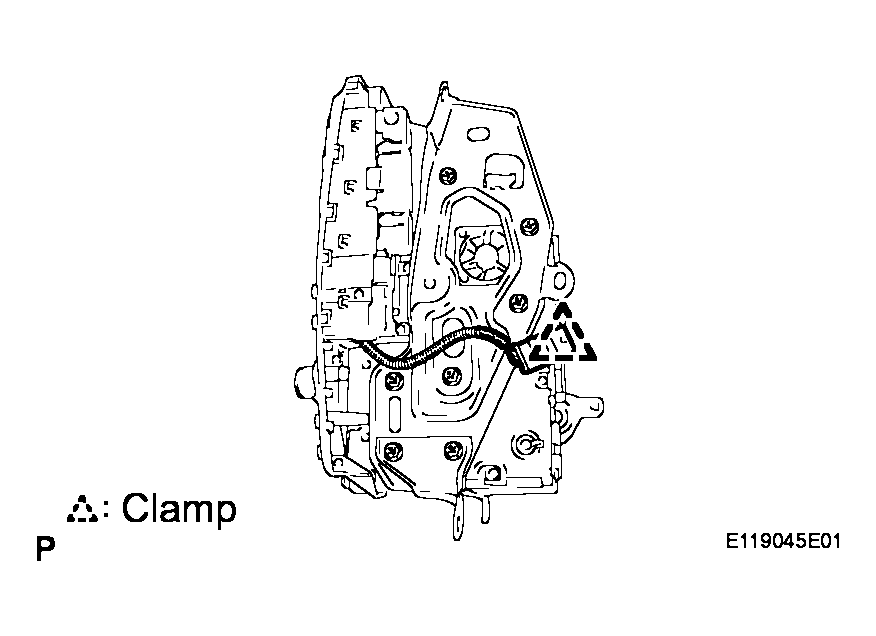

    1. Disengage the connector clamp.
      Fig 6: Identifying Connector Clamp
      G04050188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

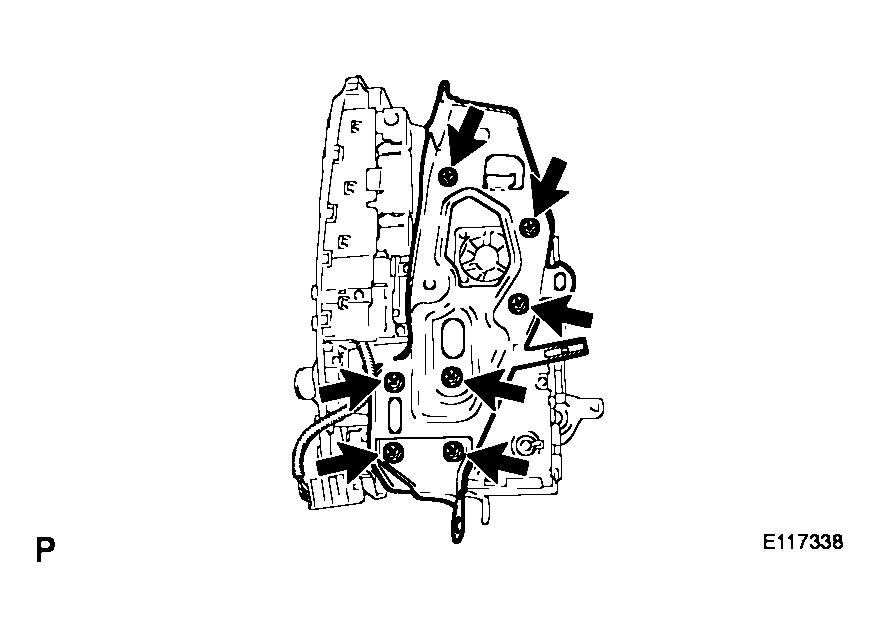

    2. Remove the 7 bolts and radio No. 1 bracket.
    Fig 7: Identifying Bolts And Radio No. 1 Bracket
    G04050189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE NO. 2 RADIO BRACKET (w/ Navigation System)

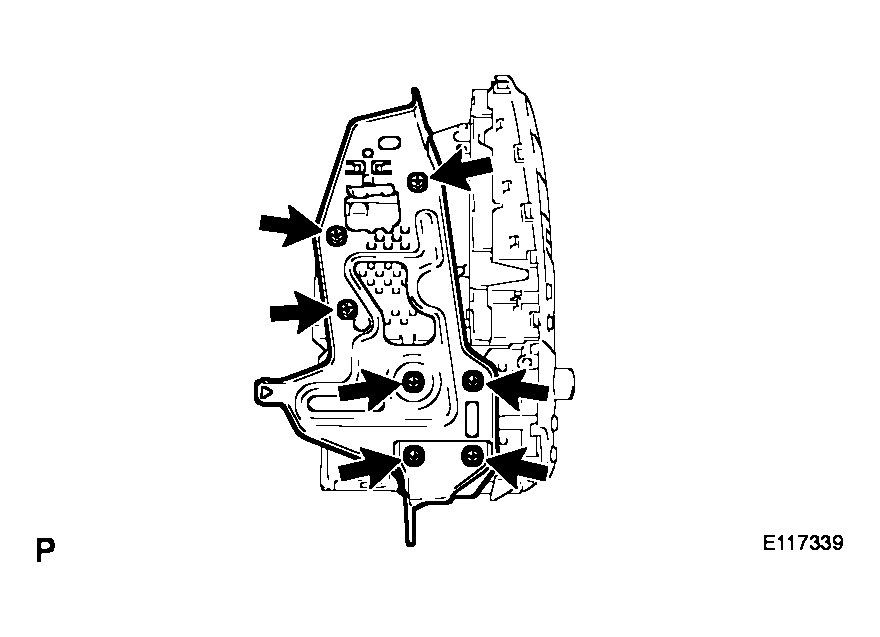

    1. Remove the 7 bolts and radio No. 2 bracket.
    Fig 8: Identifying Bolts And Radio No. 2 Bracket
    G04050190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

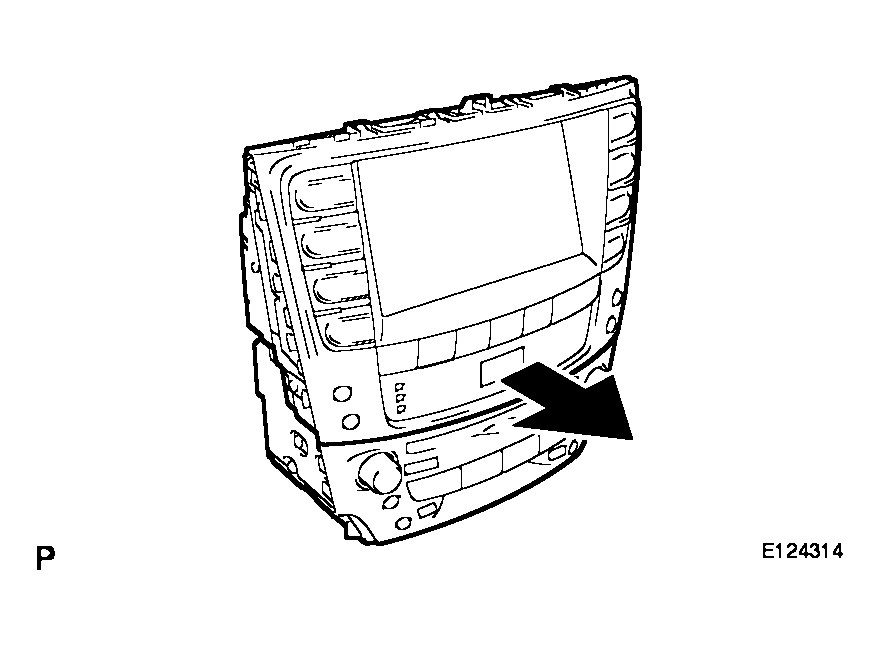

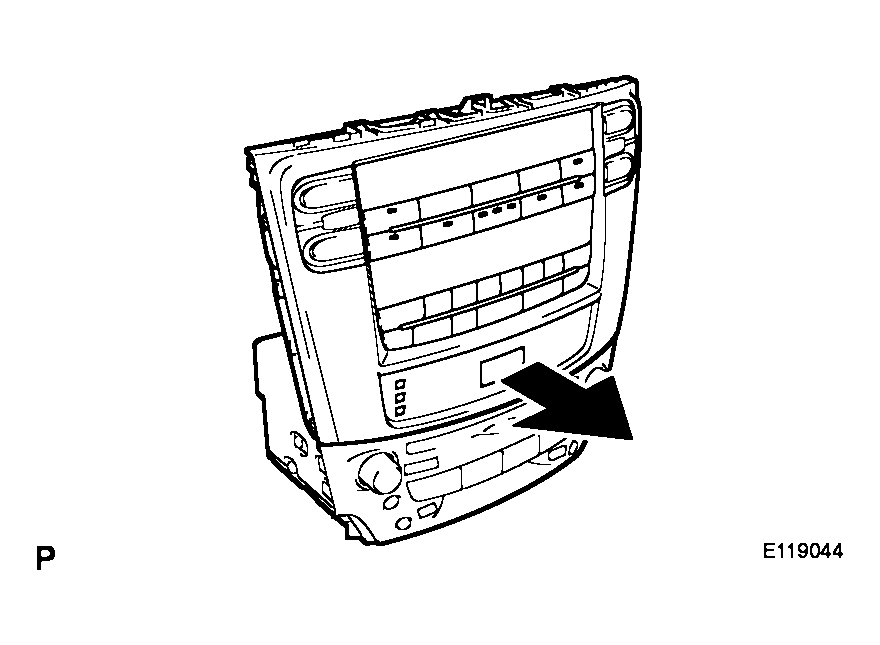

  20. REMOVE RADIO RECEIVER ASSEMBLY (w/ Navigation System)
    1. Slide the multi-display in the direction shown by the arrow to remove the radio receiver assembly.
    Fig 9: Identifying Radio Receiver Assembly (W/ Navigation System)
    G04050191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
