License Plate Light Assembly: Removal

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP (See  REMOVAL  )
  2. REMOVE LUGGAGE LOCK CONTROL CABLE PLATE (See  DISASSEMBLY  )
  3. REMOVE LUGGAGE COMPARTMENT DOOR INSIDE HANDLE (See  DISASSEMBLY  )
  4. REMOVE LUGGAGE COMPARTMENT DOOR COVER (See  REMOVAL  )
  5. REMOVE LUGGAGE COMPARTMENT DOOR REINFORCEMENT (See  REMOVAL  )
  6. REMOVE LUGGAGE KEY ELECTRICAL SWITCH (See  REMOVAL  )
  7. REMOVE TELEVISION CAMERA ASSEMBLY (w/ Parking Assist Monitor System) (See  REMOVAL  )
  8. REMOVE REAR LIGHT ASSEMBLY LH (See  REMOVAL   )
  9. REMOVE REAR LIGHT ASSEMBLY RH
  10. REMOVE LUGGAGE COMPARTMENT DOOR GARNISH ASSEMBLY
    1. Remove the 3 nuts.
    2. Disengage the 5 clips and remove the luggage compartment door garnish assembly.

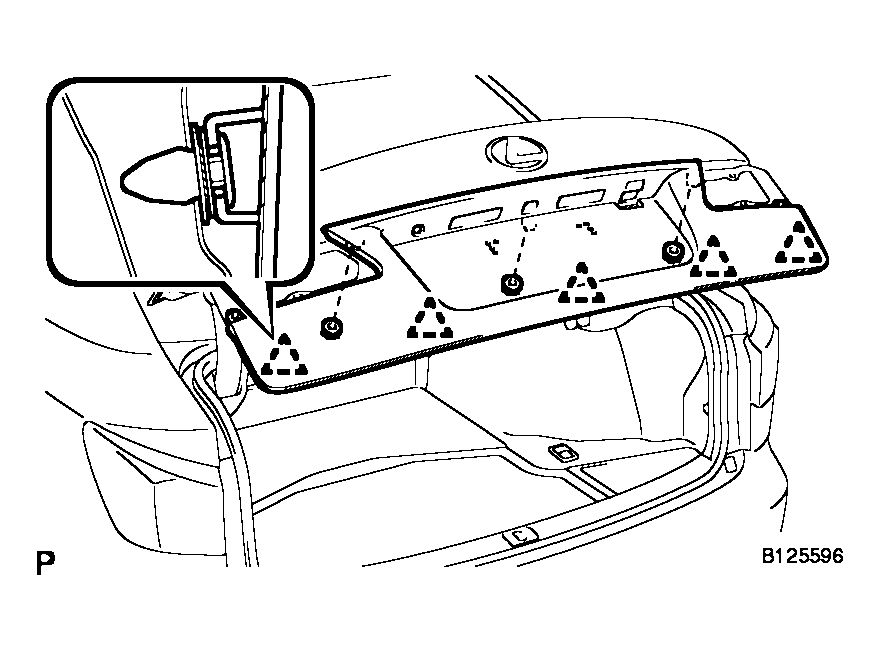

    Fig 1: Identifying Luggage Compartment Door Garnish Assembly
    G04049566Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  11. REMOVE LICENSE PLATE LIGHT ASSEMBLY
    1. Disconnect the connector.
    2. Disengage the 2 claws and remove the license plate light assembly as shown in the illustration.

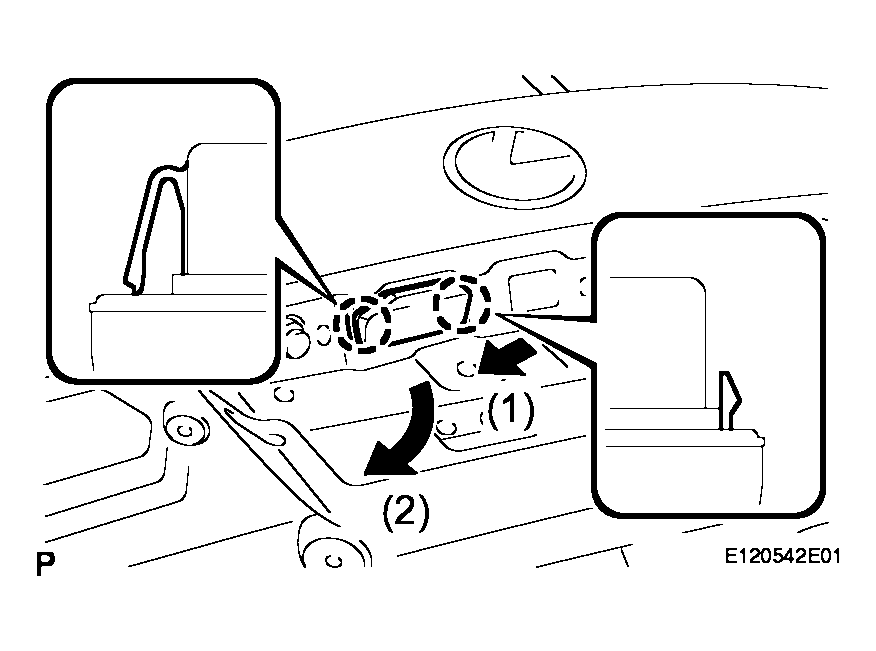

    Fig 2: Identifying License Plate Light Assembly
    G04049567Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
