Rear Combination Light Assembly: Removal

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE NO. 2 LUGGAGE COMPARTMENT TRIM COVER
  2. REMOVE DECK SIDE TRIM BOX LH
  3. REMOVE DECK SIDE TRIM BOX RH
  4. REMOVE ROPE HOOK ASSEMBLY (See  REMOVAL  )
  5. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER (See  REMOVAL  )
  6. REMOVE NO. 2 ROOM LIGHT ASSEMBLY (See  REMOVAL  )
  7. REMOVE ROPE HOOK (See  REMOVAL  )
  8. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER (See  REMOVAL  )
  9. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (See  REMOVAL  )
  10. REMOVE SIDE LUGGAGE COMPARTMENT TRIM COVER (See  REMOVAL  )
  11. REMOVE REAR COMBINATION LIGHT ASSEMBLY
    1. Disconnect the connector.

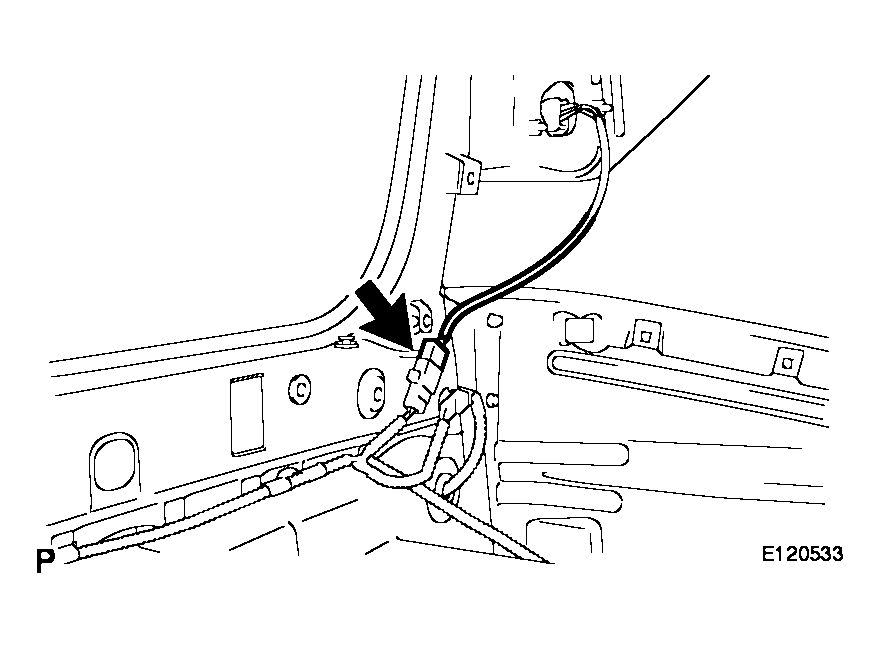

      Fig 1: Identifying Connector
      G04049547Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
    2. Remove the 3 nuts.
    3. Disengage the clip and pin, and remove the rear combination light assembly as shown in the illustration.
  12. REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP (See  REMOVAL  )
  13. REMOVE LUGGAGE LOCK CONTROL CABLE PLATE (See  DISASSEMBLY  )
  14. REMOVE LUGGAGE COMPARTMENT DOOR INSIDE HANDLE (See  DISASSEMBLY  )
  15. REMOVE LUGGAGE COMPARTMENT DOOR COVER (See  REMOVAL  )

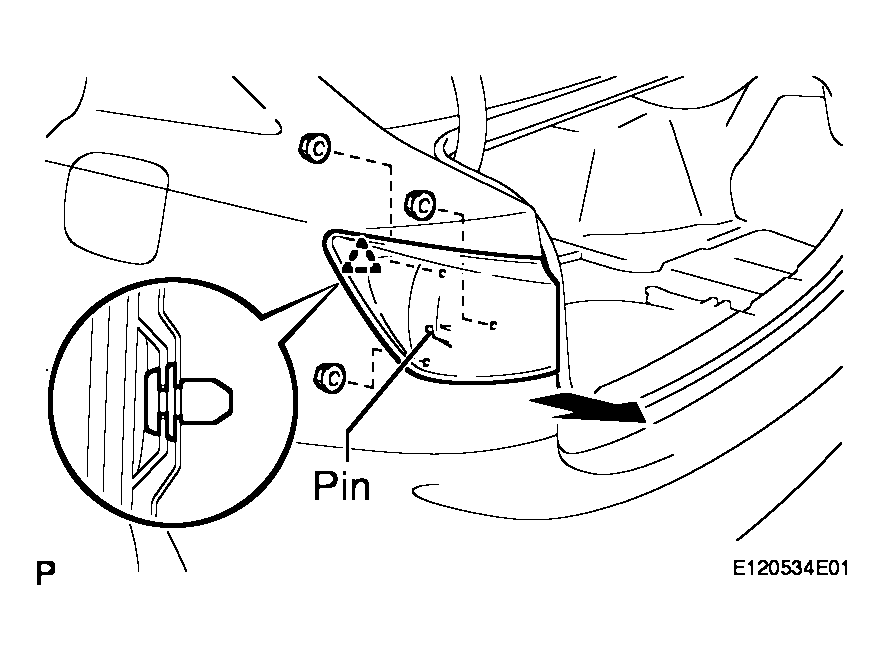

    Fig 2: Identifying Rear Combination Light Assembly
    G04049548Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  16. REMOVE REAR LIGHT ASSEMBLY
    1. Disconnect the connector.
    2. Remove the 3 nuts and rear light assembly.

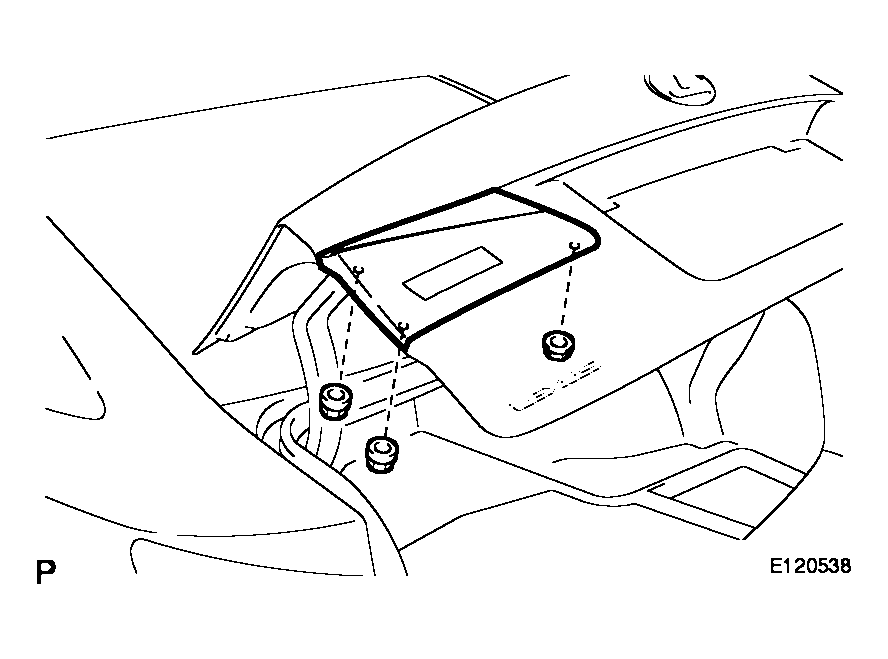

    Fig 3: Identifying Nuts And Rear Light Assembly
    G04049549Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
