Headlight Dimmer Switch: Installation

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL HEADLIGHT DIMMER SWITCH ASSEMBLY
    1. Install the headlight dimmer switch assembly.

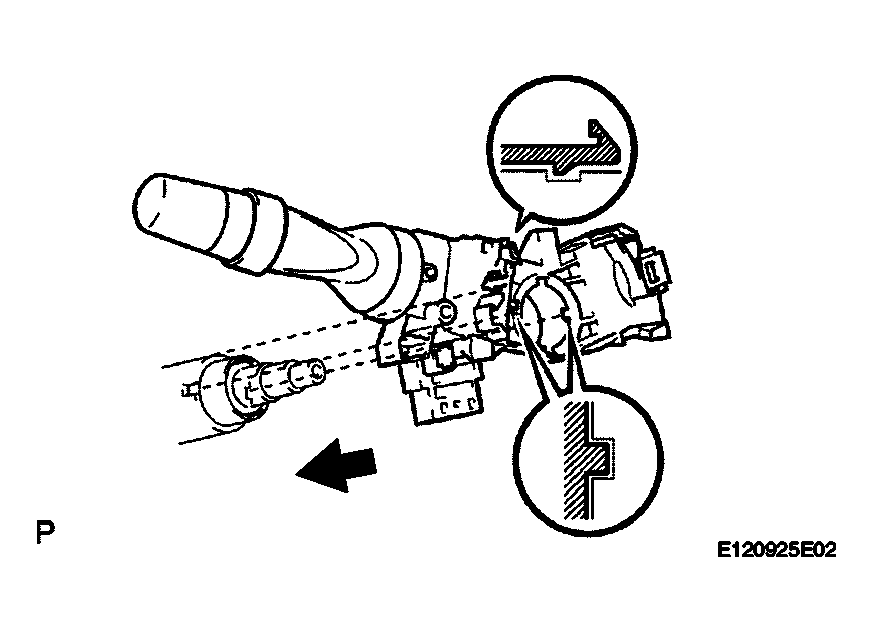

      Fig 1: Identifying Headlight Dimmer Switch Assembly
      G04049622Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
    2. Install the headlight dimmer switch assembly with the claw and the clamp.
    3. Connect the connector.

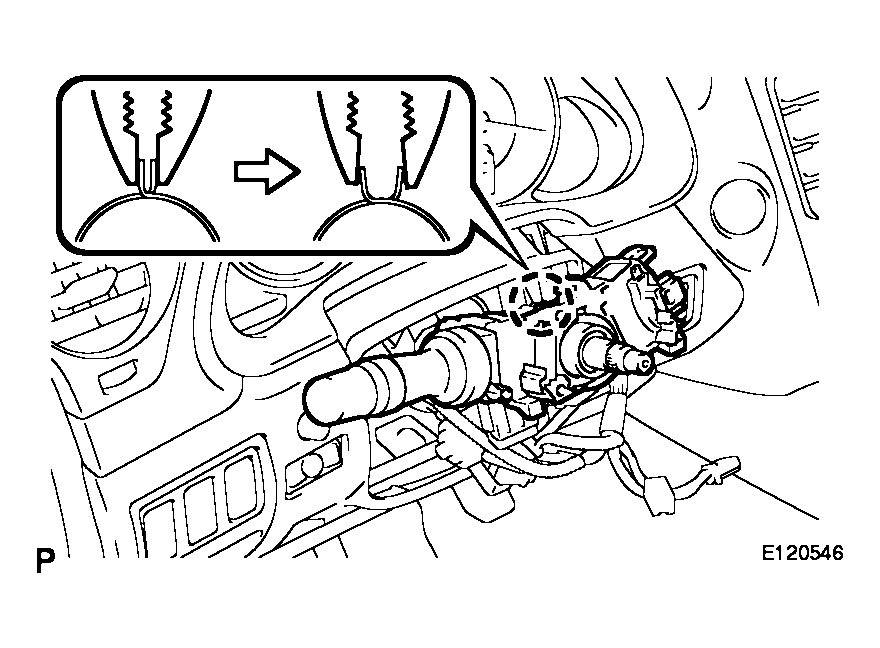

    Fig 2: Identifying Headlight Dimmer Switch Assembly With Claw & Clamp
    G04049623Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  2. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY (See  INSTALLATION  )
  3. INSTALL SPIRAL CABLE WITH STEERING ANGLE SENSOR (See Step 2 in  INSTALLATION  )
  4. INSTALL STEERING COLUMN COVER (for Manual Tilt and Telescopic) (See Step 7 in  INSTALLATION  )
  5. INSTALL STEERING COLUMN COVER (for Power Tilt and Power Telescopic) (See Step 8 in  INSTALLATION  )
  6. INSTALL STEERING WHEEL ASSEMBLY (See Step 9 in  INSTALLATION  )
  7. INSTALL STEERING PAD (See  INSTALLATION  )
  8. INSTALL NO. 3 LOWER STEERING WHEEL COVER (See Step 2 in  INSTALLATION  )
  9. INSTALL NO. 2 LOWER STEERING WHEEL COVER (See Step 3 in  INSTALLATION  )
  10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  11. PERFORM INITIALIZATION

    Some systems need initialization after reconnecting the cable to the negative battery terminal (See INITIALIZATION ).

  12. INSPECT SRS WARNING LIGHT

    (See PROBLEM SYMPTOMS TABLE )
