Wiper Switch: Installation

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY
1. Engage the claw and install the windshield wiper switch assembly.
2. Connect the 2 connectors.

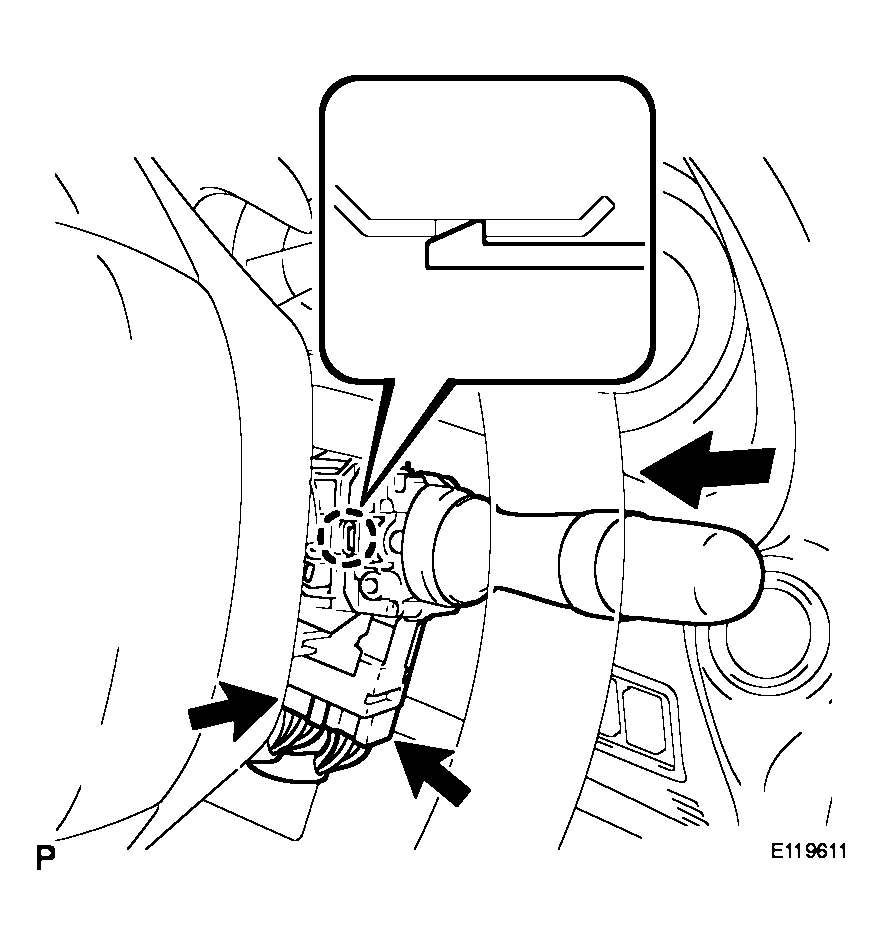

Fig 1: Identifying Windshield Wiper Switch Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STEERING COLUMN COVER (for Manual Tilt and Telescopic)
1. Engage the 3 claws and the 4 clips.

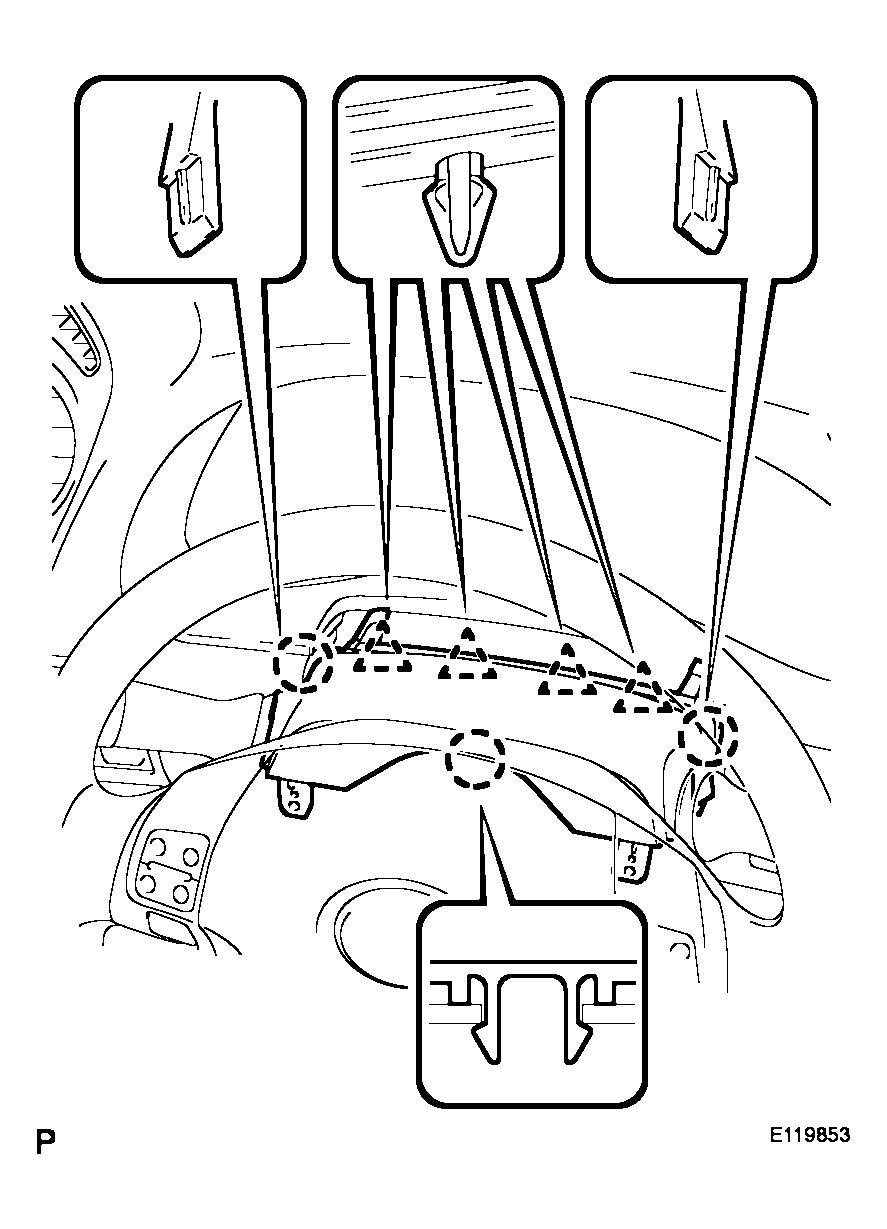

  Fig 2: Engaging Claws & Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 2 claws and install the 2 screws to the steering column cover.

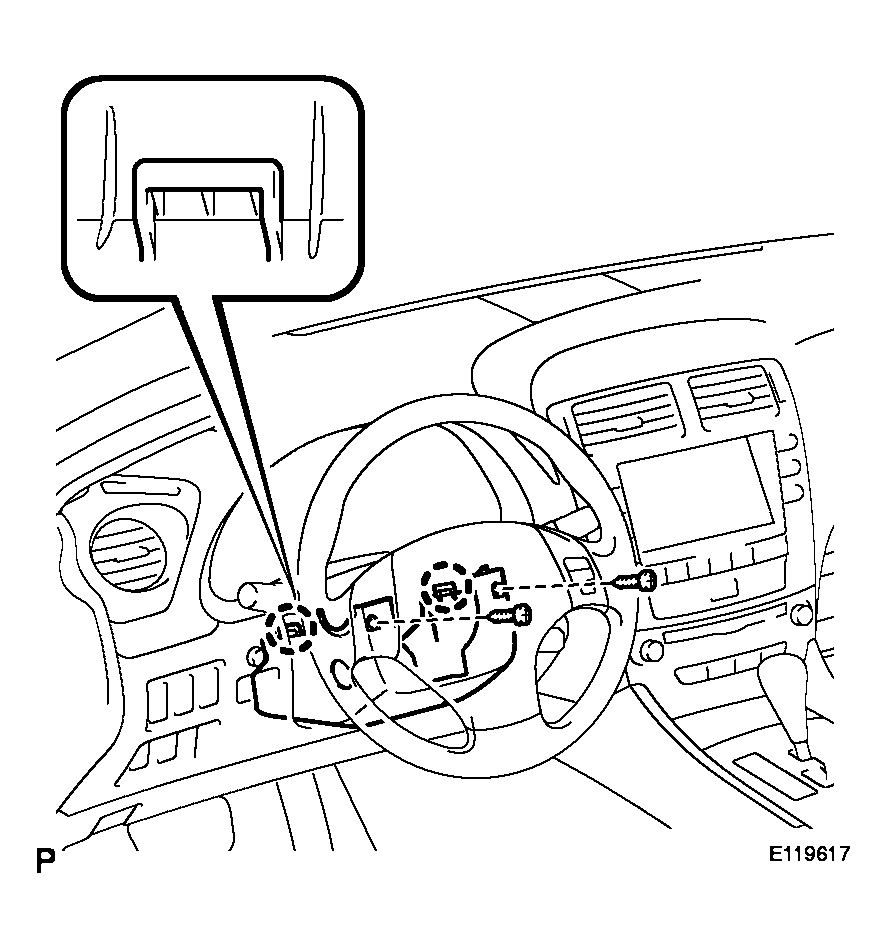

Fig 3: Identifying Screws & Steering Column Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STEERING COLUMN COVER (for Power Tilt and Power Telescopic)
1. Engage the 3 claws and the 4 clips.

  Fig 4: Engaging Claws & Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 2 claws and install the 3 screws to the steering column cover.

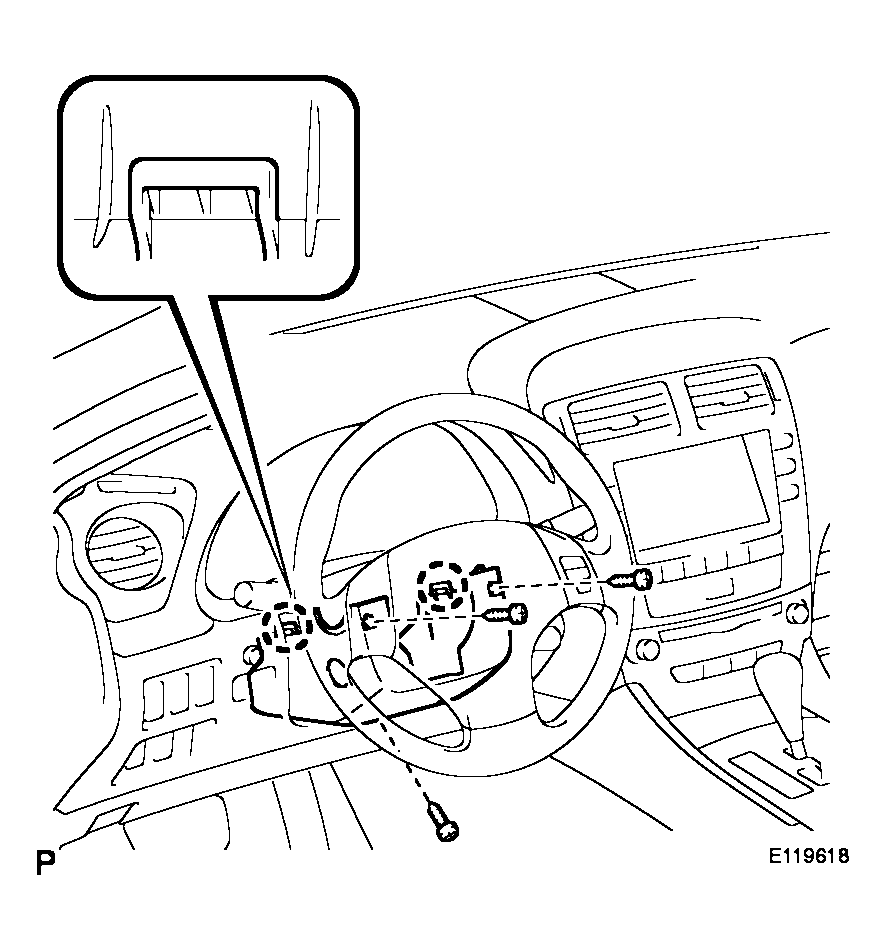

Fig 5: Installing Screws To Steering Column Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: Do not damage the tilt and telescopic switch.
