Timing Belt: Components

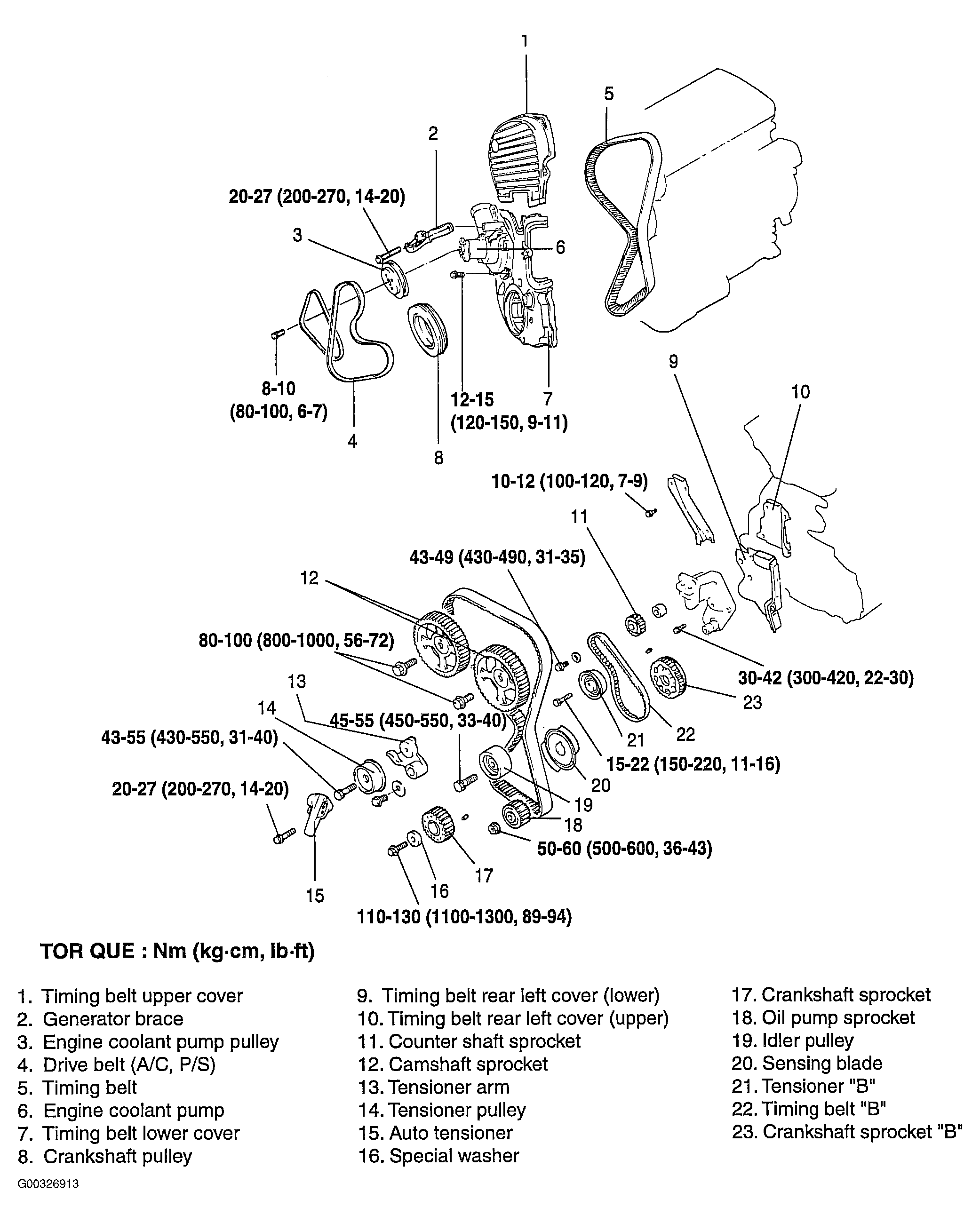

Fig 1: Exploded View Of Timing Belt

G00326913

Courtesy of KIA MOTORS AMERICA, INC.
