Connecting Rod Cap

NOTE: Keep the bearings in order with their corresponding connecting rods (according to cylinder numbers) for proper reassembly.

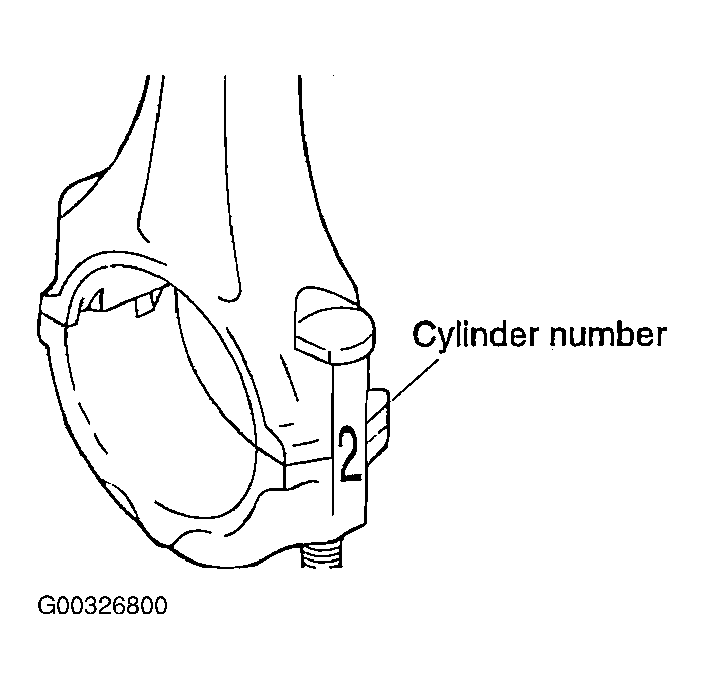

Fig 1: Identifying Connecting Rod Cap Identification Numbers
G00326800Courtesy of KIA MOTORS AMERICA, INC.
  1. Remove the connecting rod cap nuts and then remove the caps and the big end lower bearing.
  2. Push each piston-connecting rod assembly toward the top of the cylinder.
