Main Moving System: Camshaft: Components

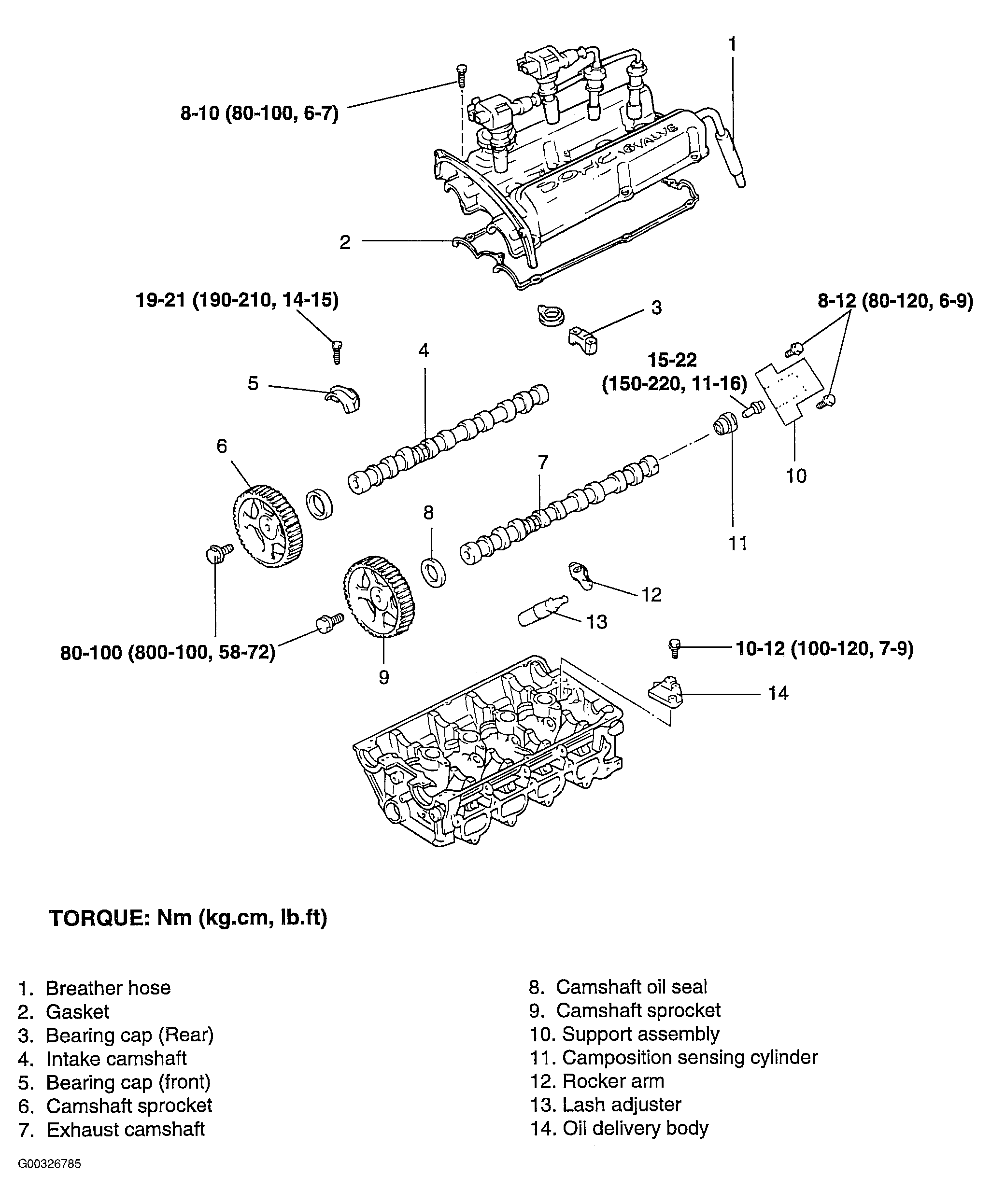

Fig 1: Exploded View Of Main Moving System

G00326785

Courtesy of KIA MOTORS AMERICA, INC.
