2.4L 4-Cylinder Engine: General: Troubleshooting

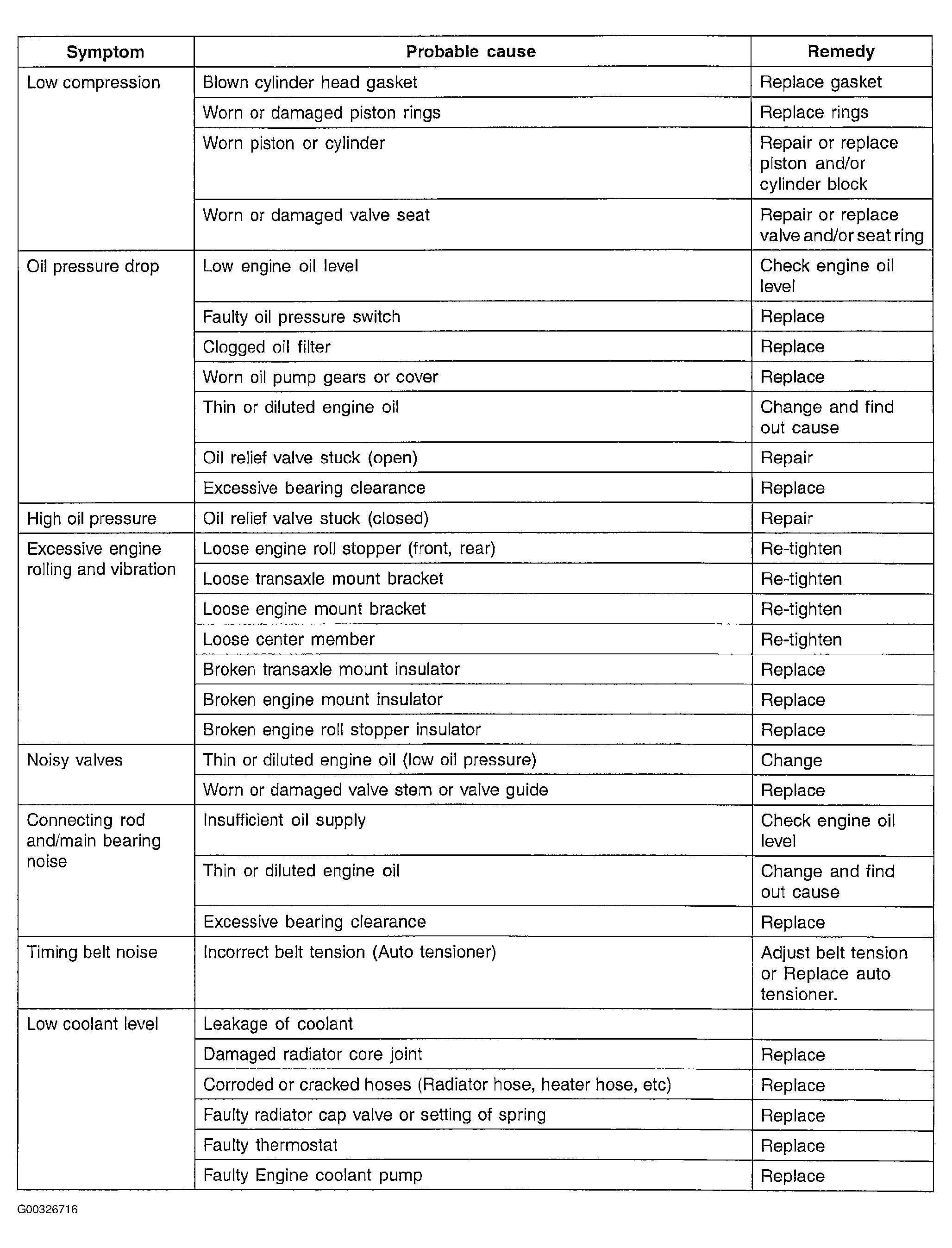

Fig 1: Engine Mechanical System Troubleshooting Chart (1 Of 2)
G00326716Courtesy of KIA MOTORS AMERICA, INC.

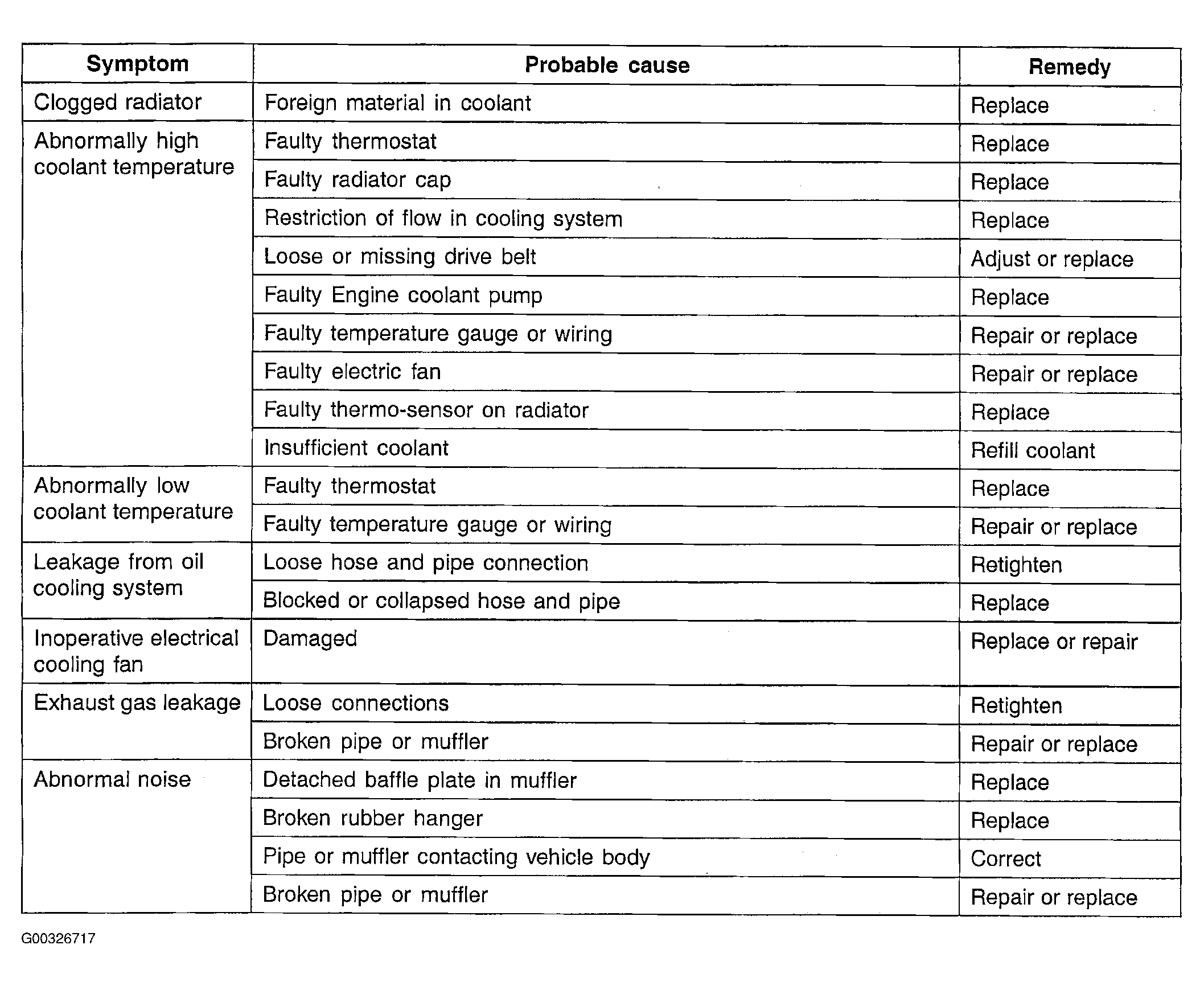

Fig 2: Engine Mechanical System Troubleshooting Chart (2 Of 2)
G00326717Courtesy of KIA MOTORS AMERICA, INC.
