Transaxle Mounting

  1. Remove the transaxle mount insulator bolts.
  2. Remove the transaxle mounting bracket from the transaxle.

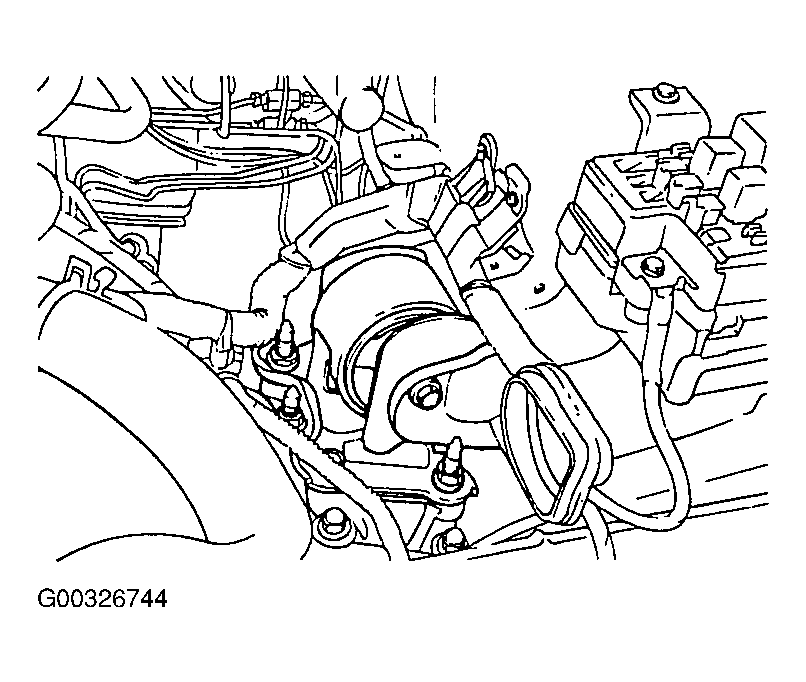

Fig 1: Removing Transaxle Mounting Bracket
G00326744Courtesy of KIA MOTORS AMERICA, INC.
