Control Valve Body: Disassembly: Reassembly

WARNING: This page is about a different variant/trim than selected.

NOTE:

Before assembly, make sure all parts are perfectly clean.
Apply ATF to all parts.
Do not reuse gaskets or O-rings.

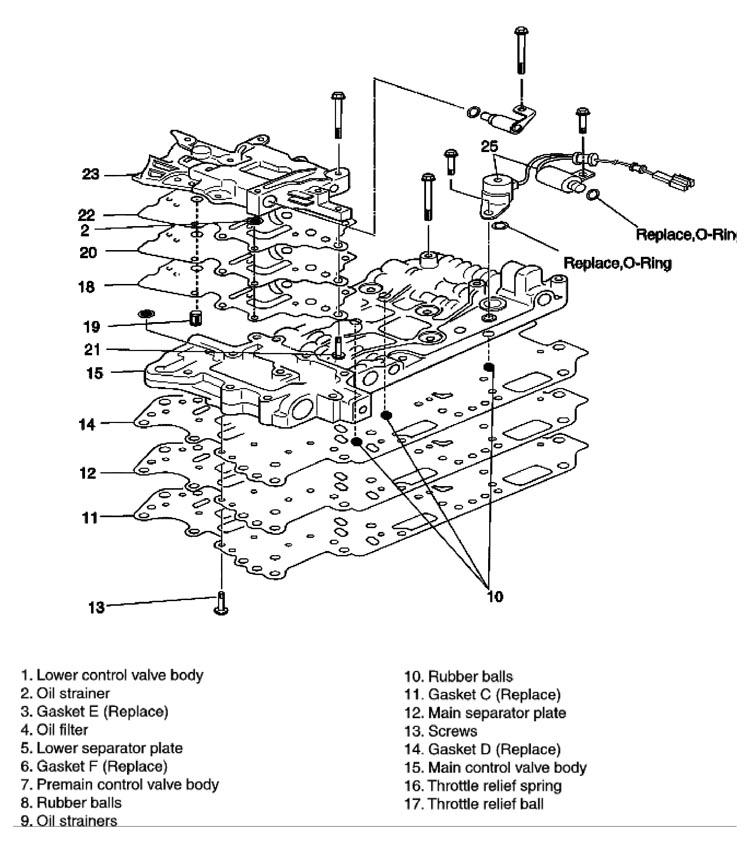

Fig 1: Identifying Valve Body Components (1 Of 2)

G04086094

Courtesy of KIA MOTORS AMERICA, INC.

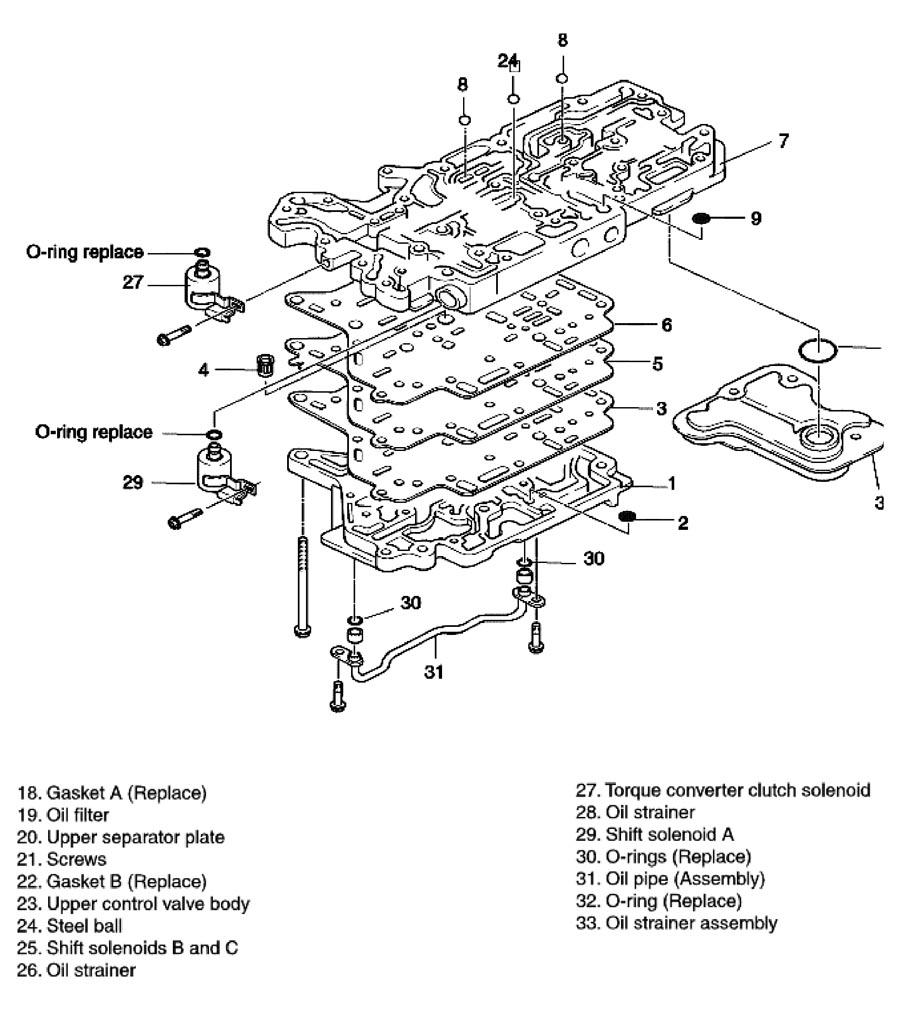

Fig 2: Identifying Valve Body Components (2 Of 2)

G04086095

Courtesy of KIA MOTORS AMERICA, INC.
