Control Valve Body: Disassembly: Notes

WARNING: This page is about a different variant/trim than selected.

NOTE:

Be especially careful when handling control valve because it consists of most precise and delicate parts of transaxle.
Neatly arrange removed parts to avoid confusing similar parts.
Clean removed parts with cleaning solvent, and dry them with compressed air. Clean out all holes and passages with compressed air.

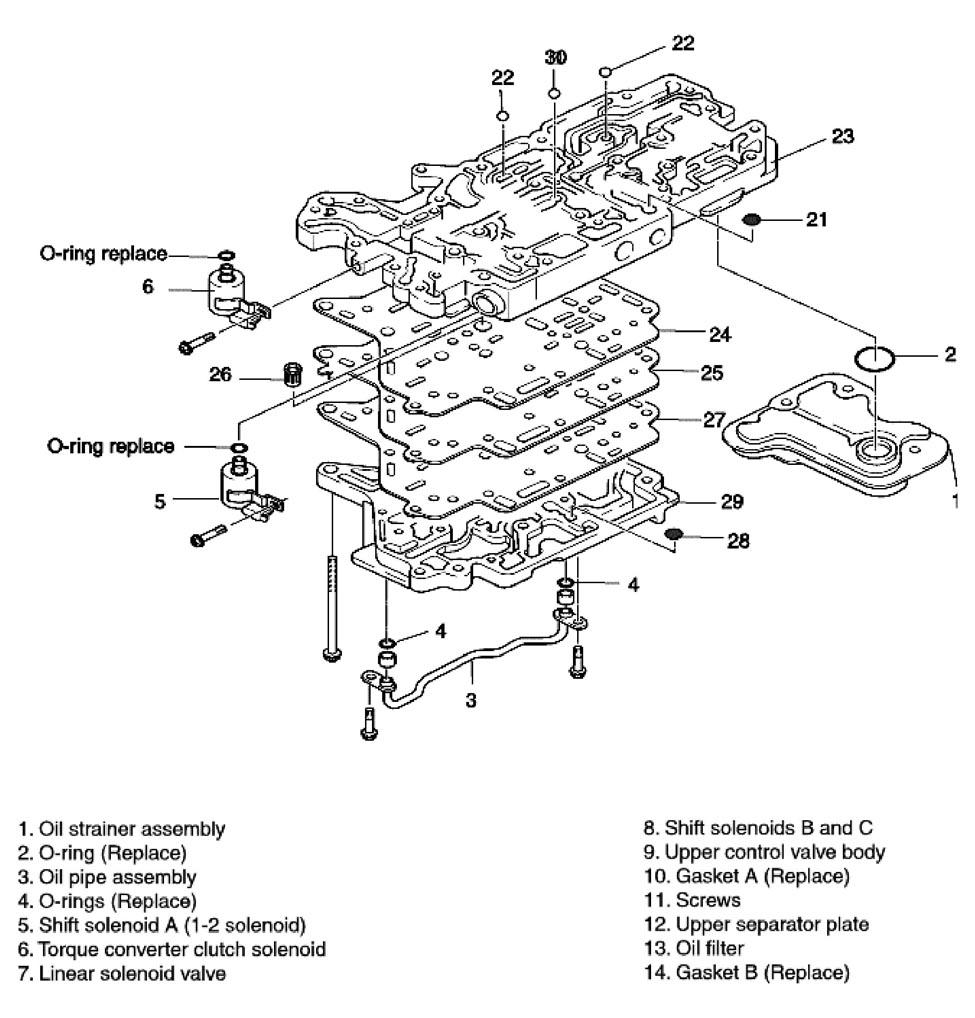

Fig 1: Identifying Valve Body Components (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

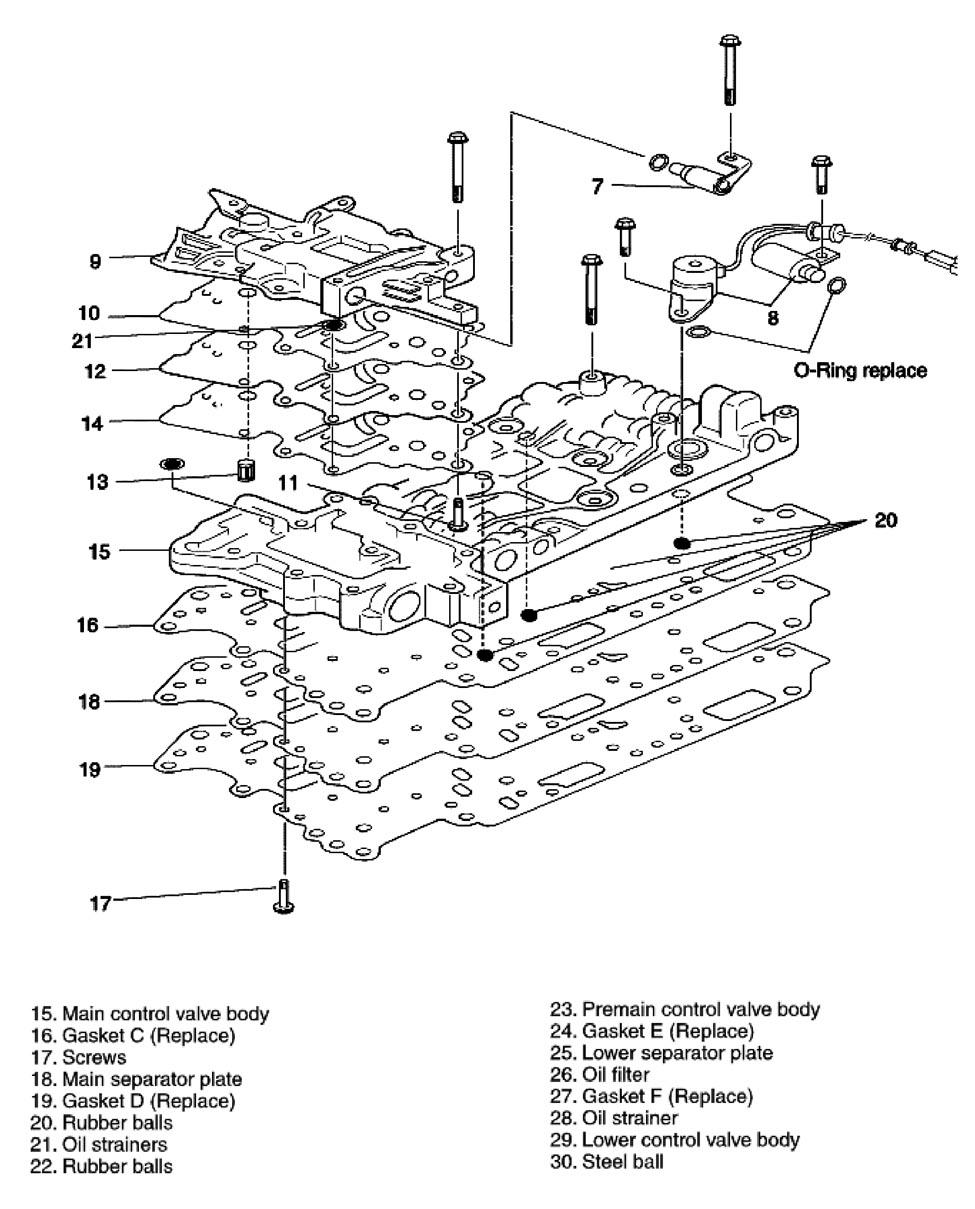

Fig 2: Identifying Valve Body Components (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

Remove oil pipe assembly.

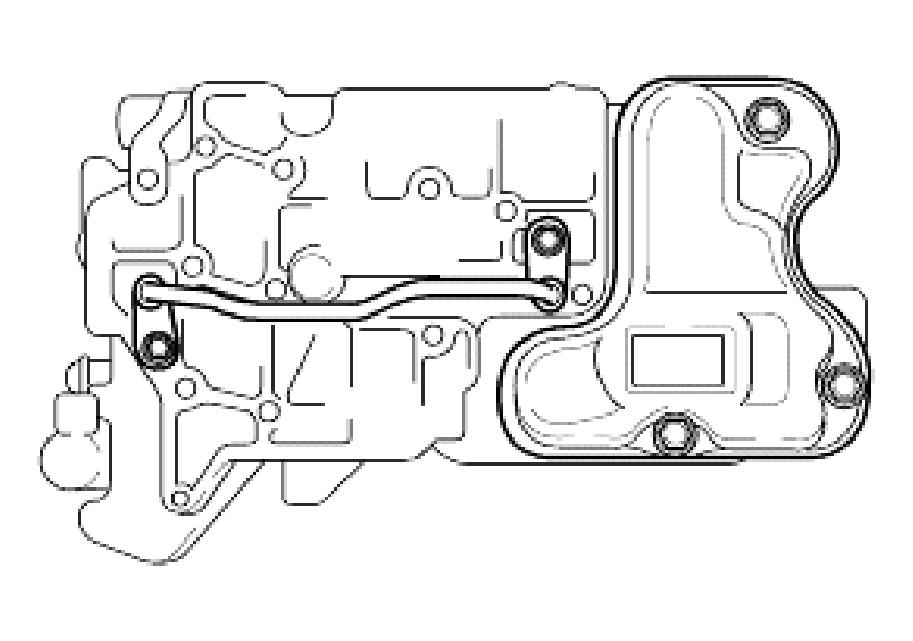

Fig 3: Removing Oil Pipe Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Remove O-rings from oil pipe assembly.
Remove shift solenoid A.
Remove torque converter clutch solenoid valve and oil strainer.

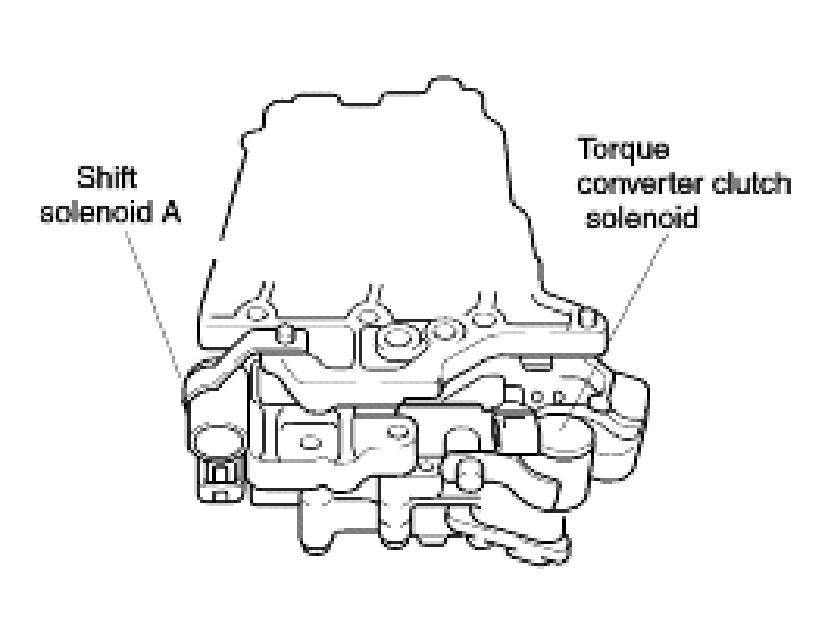

Fig 4: Removing Torque Converter Clutch Solenoid Valve And Shift Solenoid A
Courtesy of KIA MOTORS AMERICA, INC.
Remove shift solenoids B and C.

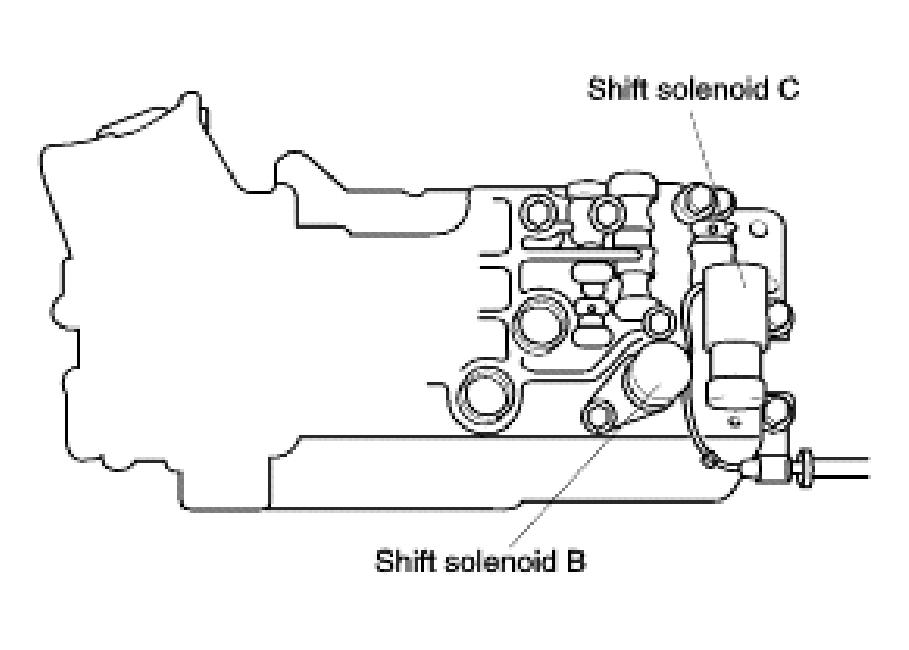

Fig 5: Removing Shift Solenoids B And C
Courtesy of KIA MOTORS AMERICA, INC.
Remove linear solenoid valve.

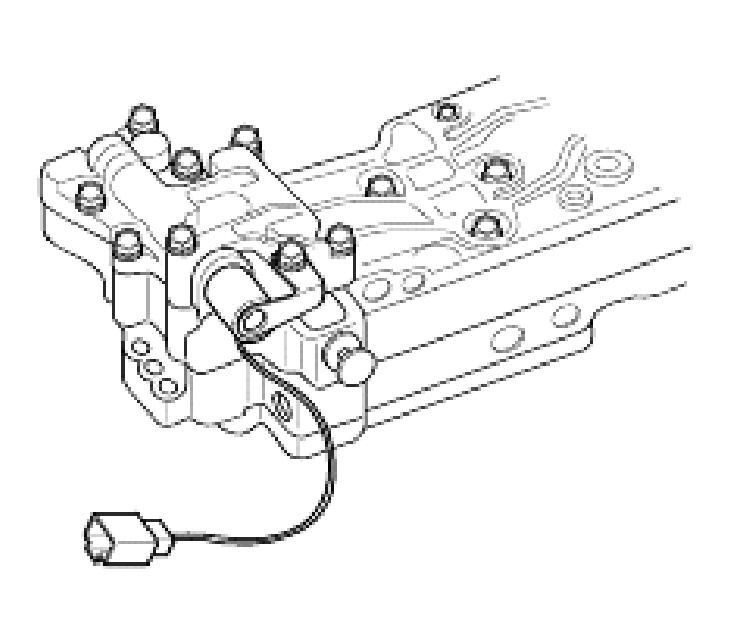

Fig 6: Removing Linear Solenoid Valve
Courtesy of KIA MOTORS AMERICA, INC.
Remove nine upper control valve body bolts.

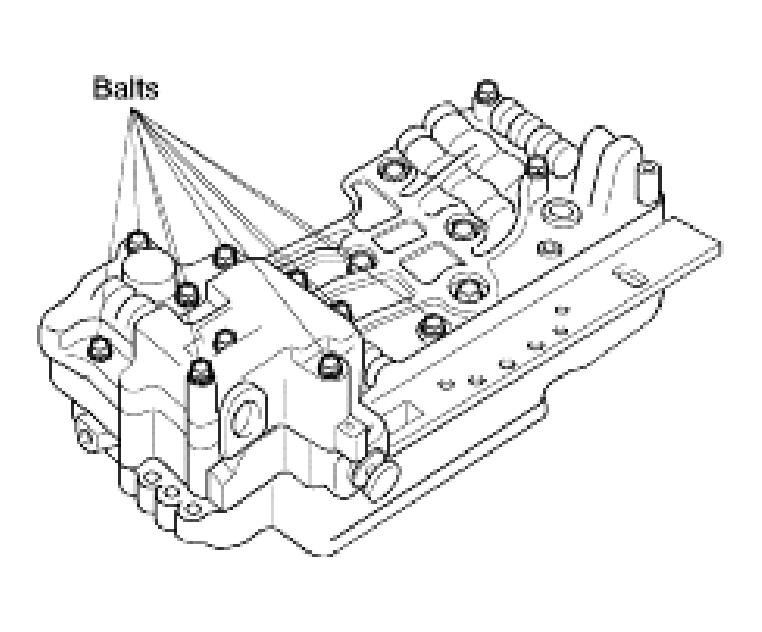

Fig 7: Removing Nine Upper Control Valve Body Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove two screws from upper control valve body.
Remove gasket B, upper separator plate, oil filter, oil strainer and gasket A.

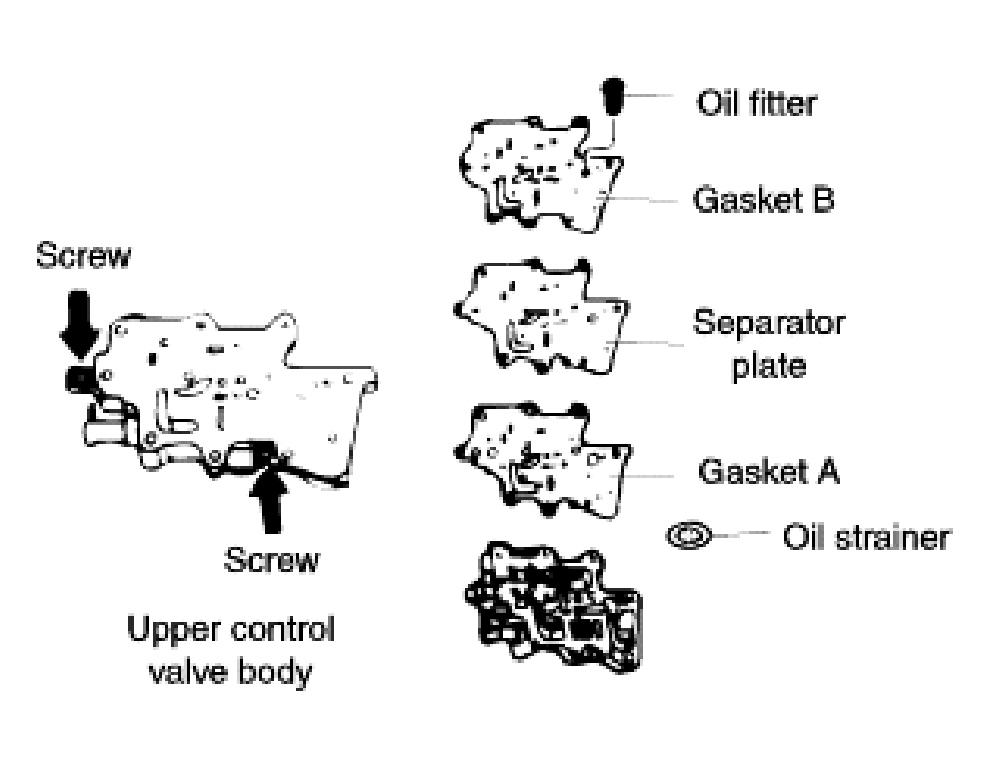

Fig 8: Removing Gasket B, Upper Separator Plate, Oil Filter, Oil Strainer And Gasket A
Courtesy of KIA MOTORS AMERICA, INC.
Remove seven main control valve body bolts then remove main control valve.

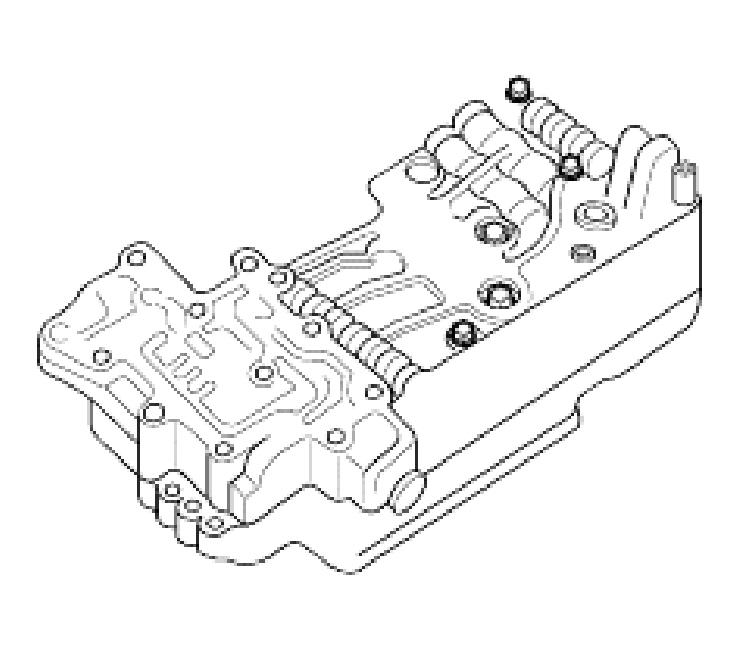

Fig 9: Removing Seven Main Control Valve Body Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove gasket D, main separator plate, and gasket C.

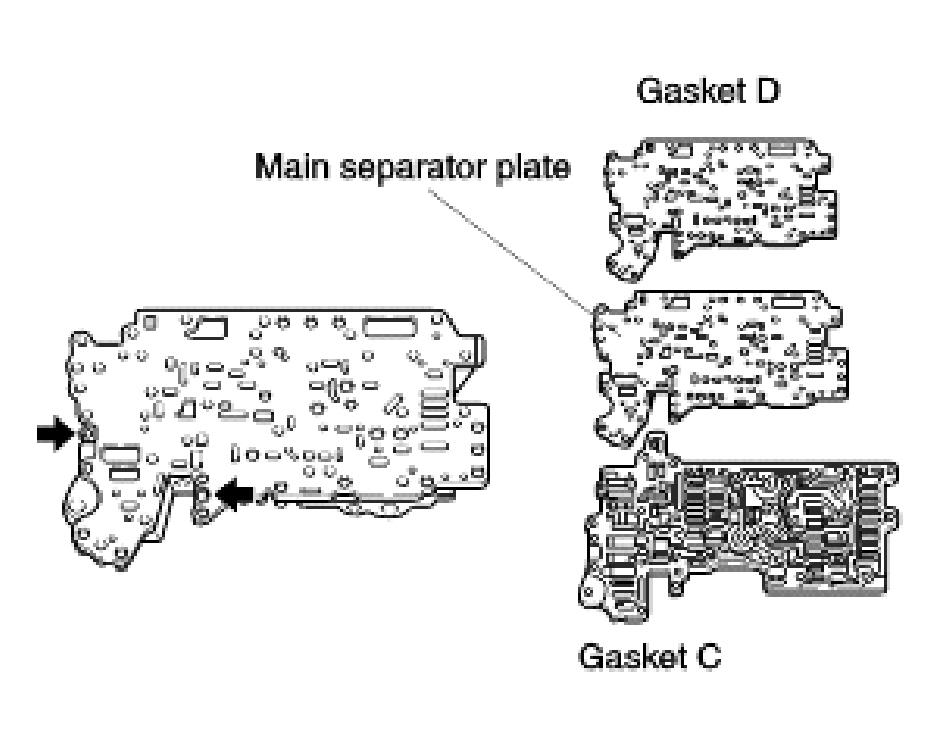

Fig 10: Removing Gasket D, Main Separator Plate And Gasket C
Courtesy of KIA MOTORS AMERICA, INC.
Remove four rubber balls from main control valve body.

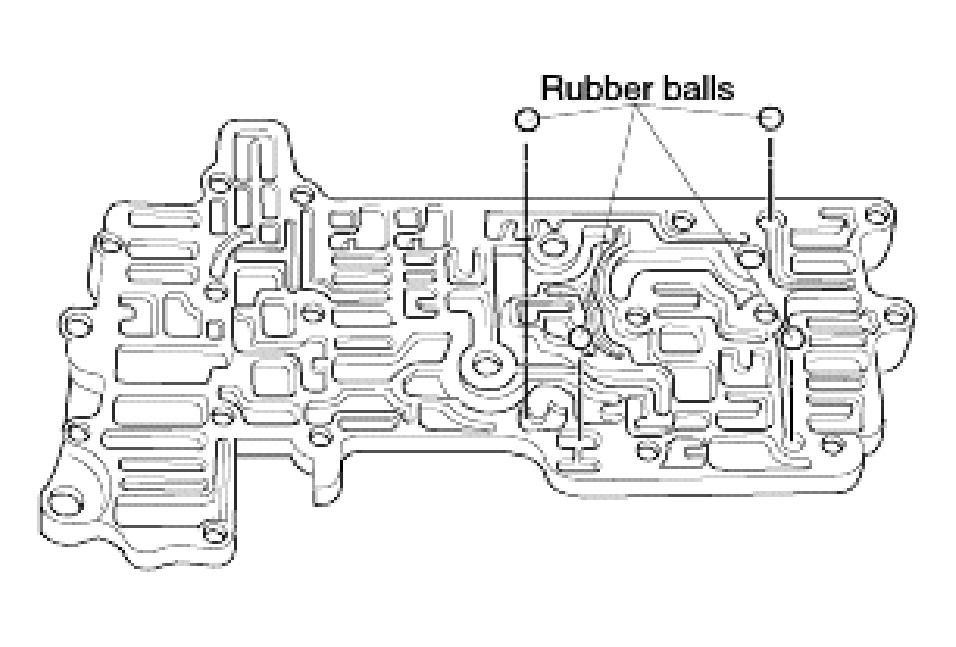

Fig 11: Removing Four Rubber Balls From Main Control Valve Body
Courtesy of KIA MOTORS AMERICA, INC.
Remove oil strainer, steel ball and two rubber balls from premain control valve body.

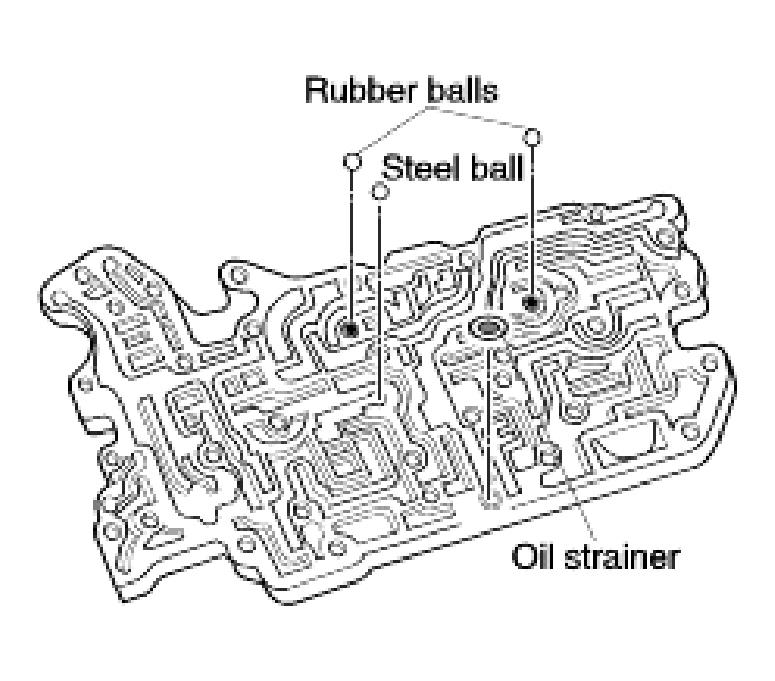

Fig 12: Removing Oil Strainer, Steel Ball And Two Rubber Balls
Courtesy of KIA MOTORS AMERICA, INC.

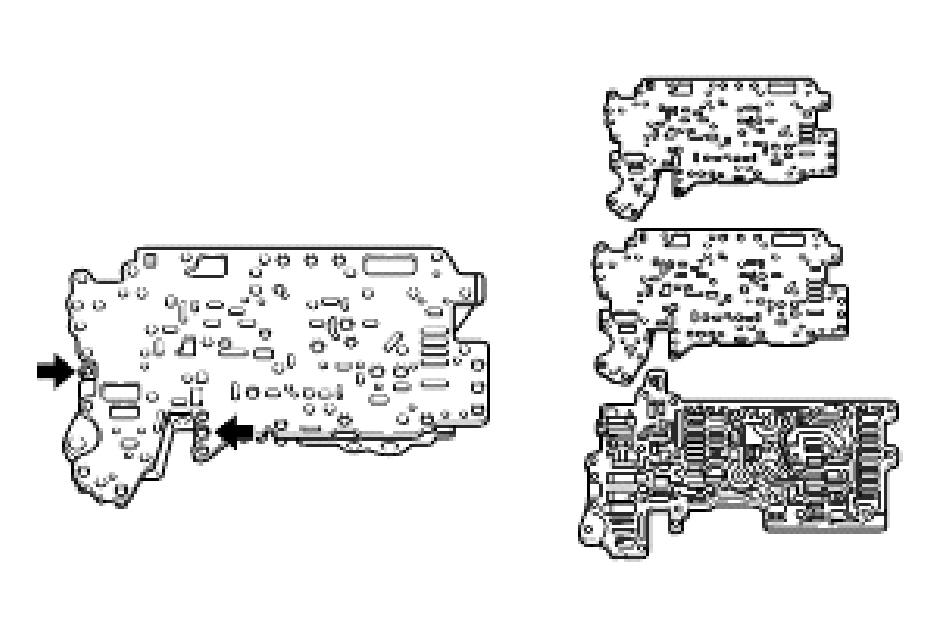

Remove six bolts, then remove premain control valve body.

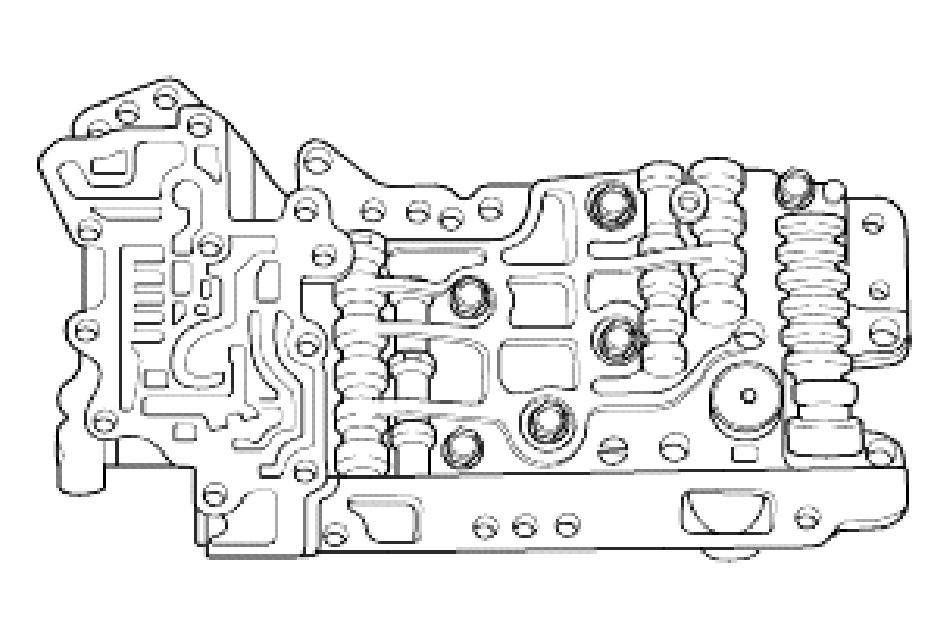

Fig 13: Removing Premain Control Valve Body
Courtesy of KIA MOTORS AMERICA, INC.
Remove gasket E, lower separator plate, oil filter, and gasket F.

Fig 14: Removing Gasket E, Lower Separator Plate, Oil Filter And Gasket F
Courtesy of KIA MOTORS AMERICA, INC.
Remove oil strainer from lower control valve body.

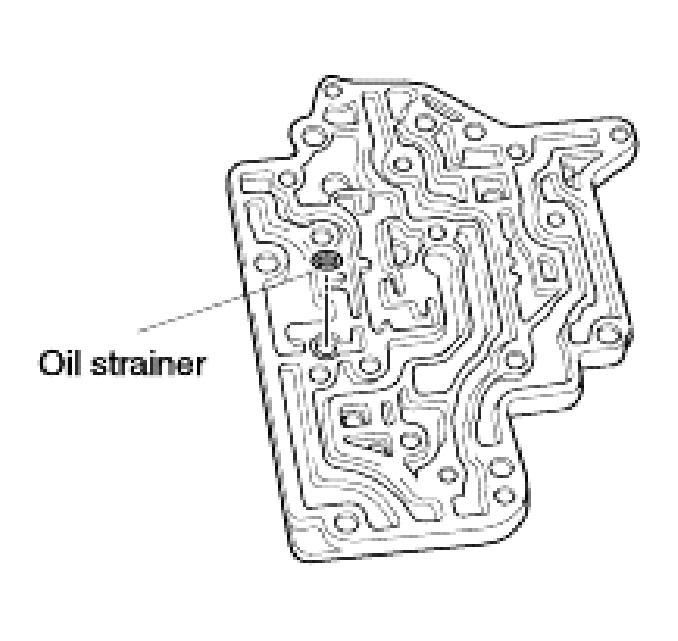

Fig 15: Removing Oil Strainer From Lower Control Valve Body
Courtesy of KIA MOTORS AMERICA, INC.
