Manual Release Method Of Shift Lock

WARNING: This page is about a different variant/trim than selected.
  1. Verify that the selector lever locks on the P range.
  2. Press screwdriver after opening cap and putting it into the hole.
  3. Shift selector lever.

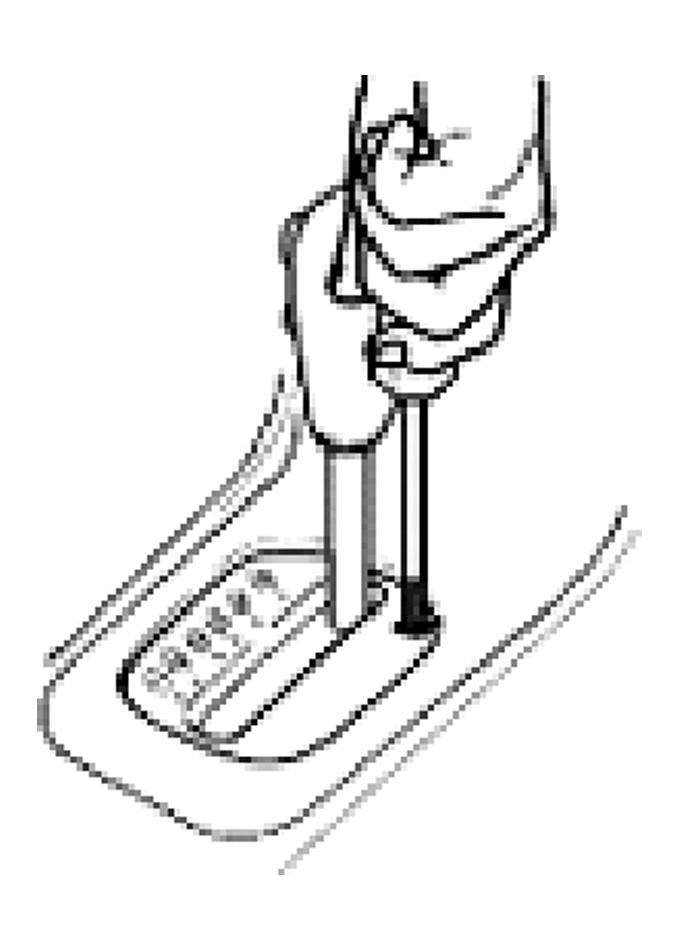

    Fig 1: Shifting Selector Lever Using Screwdriver
    G04086320Courtesy of KIA MOTORS AMERICA, INC.
