Control Valve Body: Replacement
WARNING: This page is about a different variant/trim than selected.
- Install control valve body, (8) bolts, and wiring clips as shown in illustration.
Bolt length (measured from below the head) A: 1.18 in. (30 mm) B: 1.97 in. (50 mm)
Tightening torque: 69.6~94.8 lb. in. (7.9~10.7 N.m, 80~110 kg.cm)
- Install oil strainer and (3) bolts.
Tightening torque: 69.6~94.8 lb. in. (7.9~10.7 N.m, 80~110 kg.cm)
- Connect connectors.
- Install oil pan (19 bolts) and a new gasket.
Tightening torque: 74.4~94.8 lb. in. (8.4~10.7 N.m, 85~110 kg.cm)

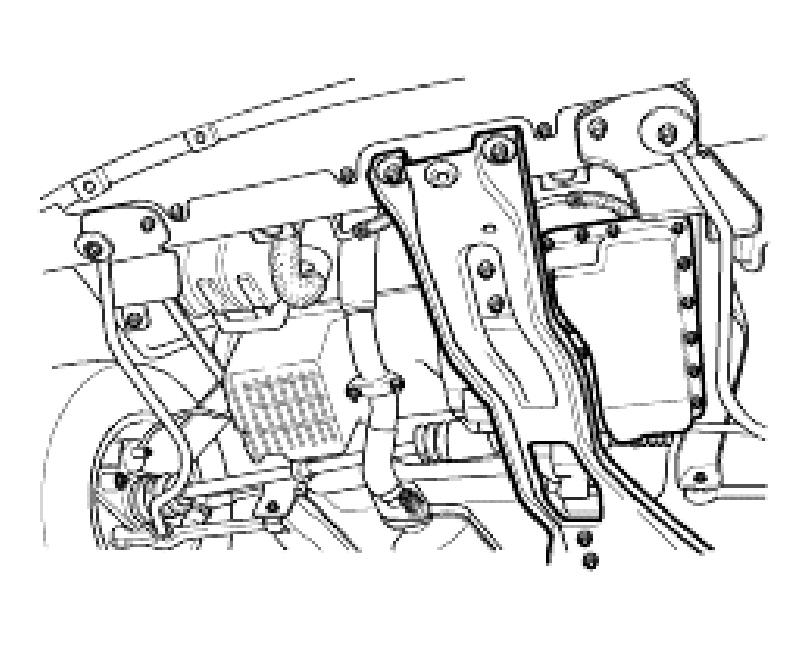

- Loosely install nuts A and bolts B of engine mounting member.
- Install engine mounting member.
Tightening torque: A: 28~38 lb. ft. (38~51 N.m, 3.8~5.3 kg.m) B: 48~65 lb. ft. (64~89 N.m, 6.5~9.1 kg.m)
- Install both gravel shield to under engine.
- Remove SST (0K201 170 AA0) from engine.
- Pour in ATF. Check ATF level with engine idling and check for leaks, refer to AUTOMATIC TRANSAXLE FLUID (ATF) .
- Drive vehicle and check shift points, shift schedule, and shift quality.
